SR-C8L Line Array Speaker

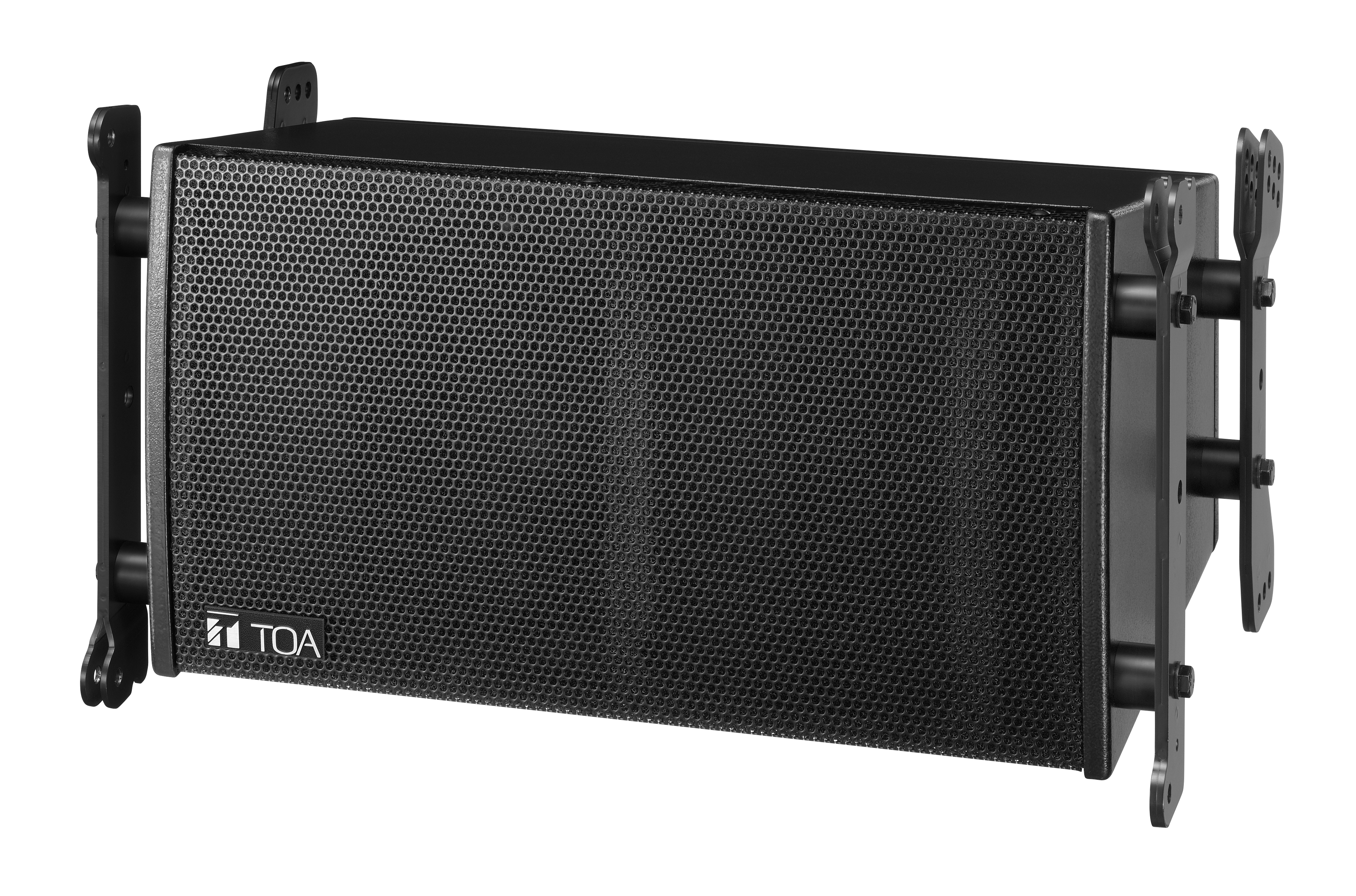

SR-C8SWP
The SR-C8SWP is a 2-way line array speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. Recommended digital speaker processor is the DP-SP3 (option).It can be converted into the bi-amplifier drive system by changing the internal connection.
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program: 360 W (single-amp mode) Low: 360 W, High: 180 W (bi-amp mode) |
| Rated Impedance | 16 Ω (single-amp mode) Low: 16 Ω, High: 16 Ω (bi-amp mode) |
| Sensitivity | 98 dB (1 W, 1 m) (single-amp mode) Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode) |
| Frequency Response | 65 - 20,000 Hz (when driven with the optional DP-0206's recommended parameters) |
| Crossover Frequency | 1,600 Hz (when driven with the optional DP-0206's recommended parameters) |
| Directivity Angle | Horizontal: 110゜, Vertical: 15゜ |
| Speaker Component | Low frequency: 20 cm (8) cone-type" High frequency: Wave front control horn 110゜ (horizontal) × 5゜ (vertical)" + compression driver × 2 |
| Connected Cable | Direct cable withdrawal from internal speaker: φ8.6 mm (φ0.34"), conductor cross section: 1.25 m㎡ (0.05") 4-core cable, 3 m (9.84 ft) |
| Water Protection | IPX4 |
| Finish | Enclosure: Plywood, black, urethane coating Front grille: Punched stainless steel, black, paint |
| Dimensions | 526.6 (W) × 293 (H) × 294 (D) mm (20.73 × 11.54" × 11.57")" |
| Weight | 16 kg (35.27 lb) |
| Accessory | M8 connection bolt …4 |
| Option | Rigging frame: SR-RF8WP Digital processor: DP-0206* Digital Mixer: D-901 Digital Mixing Processor Unit: D-2008SP |
- *DP-0206 is not available in some countries.
