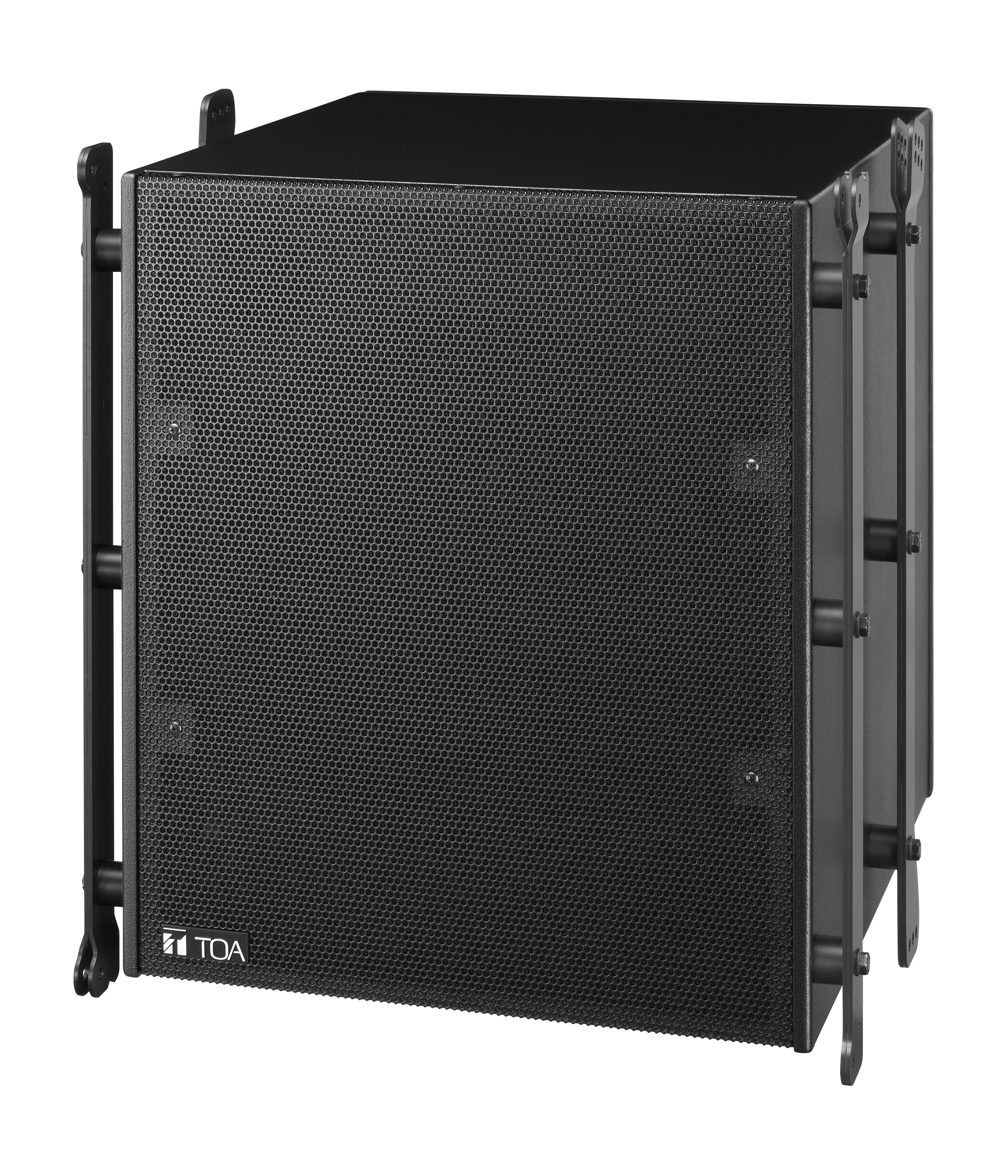

SR-C15B Line Array Speaker
SR-C15B
The SR-C15B Sub-woofer system is designed to be used in conjunction with the SR-C8L or SR-C8S Line array speaker. Recommended digital speaker processor is the DP-SP3 (option).
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program: 450 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 93 dB (1 W, 1 m) |
| Frequency Response | 40 - 400 Hz (when driven with the optional DP-0206's recommended parameters*) |
| Crossover Frequency | 125 Hz (when driven with the optional DP-0206's recommended parameters*) |
| Speaker Component | 38 cm (15") cone-type |
| Input Connector | M5 screw terminal, distance between barriers: 12.2 mm (0.48") and Neutrik NL4MP × 2 |
| Finish | Enclosure: Plywood, black, urethane paint Front grille: Punched steel plate, black, paint |
| Dimensions | 526.6 (W) × 594.8 (H) × 550 (D) mm (20.73" × 23.42" × 21.65") |
| Weight | 41 kg (90.39 lb) |
| Accessory | M8 connection bolt …4 |
| Option | Rigging frame: SR-RF8 Digital processor: DP-0206* Digital Mixer: D-901 Digital Mixing Processor Unit: D-2008SP |
- *DP-0206 is not available in some countries.
