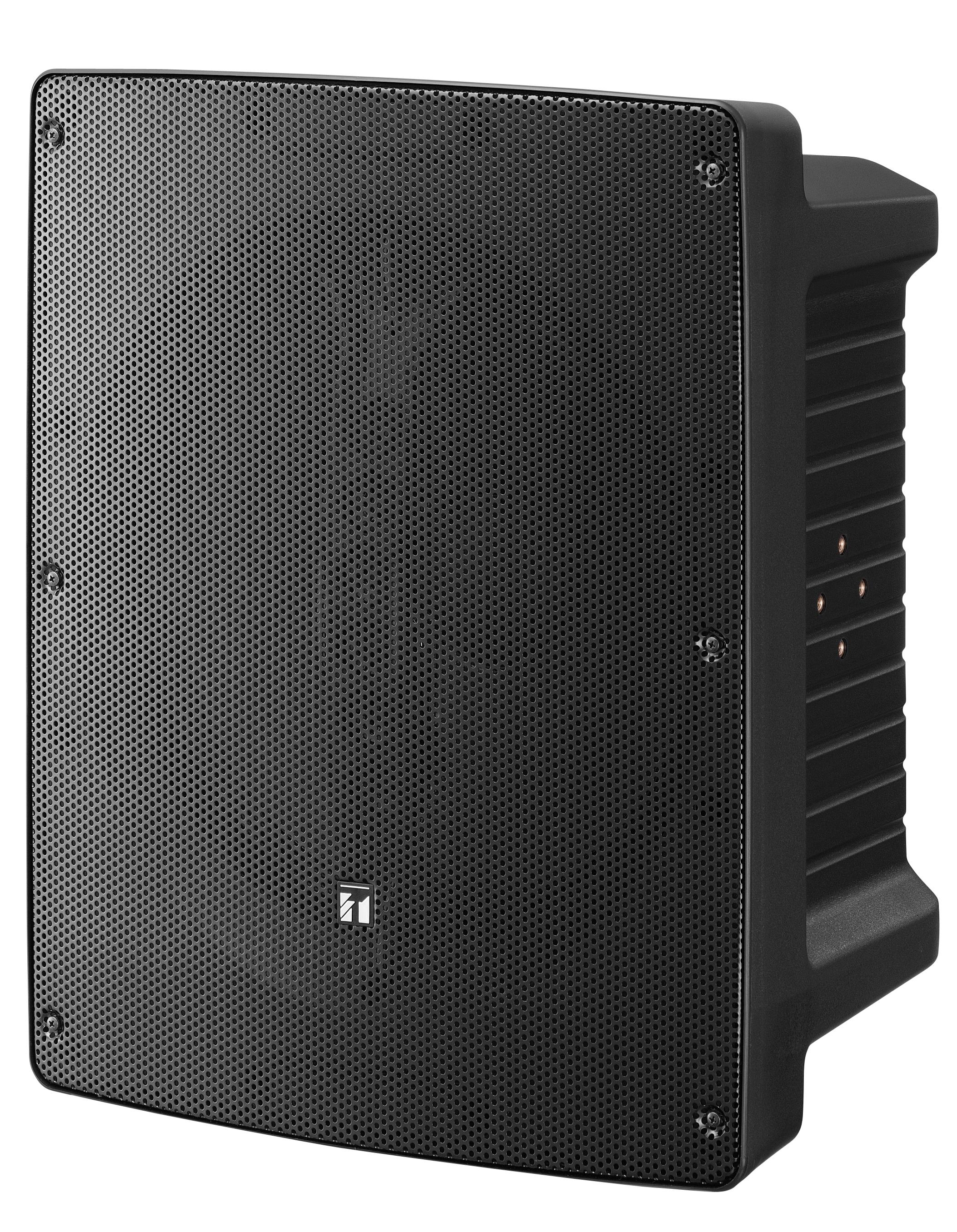

HS-1500BT Coaxial Array Speaker System
HS-1500BT
The HS-1500BT is a 2-way speaker system made of resin, and features a large diameter woofer. It can be installed and used in many different applications with combined use of the supplied accessories and/or the optional mounting brackets.
| Enclosure | Sealed type |
|---|---|
| Rated Input | 60 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 100 W (Low Impedance) Continuous program: 300 W (Low Impedance) |
| Rated Impedance | 8 Ω 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W) |
| Sensitivity | 98 dB (1 W, 1 m) |
| Frequency Response | 60 - 20,000 Hz |
| Crossover Frequency | 3 kHz |
| Directivity Angle | Horizontal: 90゜, Vertical: 40゜ |
| Speaker Component | Low frequency: 38 cm (15) cone-type |
| Input Terminal | NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)" |
| Operating Temperature | -10℃ to +50℃ (14゜F to 122゜F) |
| Finish | Enclosure: Polypropylene, black Punched net: Surface-treated steel plate, black |
| Dimensions | 451 (W) × 560 (H) × 400 (D) mm (17.76 × 22.05" × 15.75")" |
| Weight | 14 kg (30.86 lb) |
| Accessory | Handle …1, Handle fitting bracket …2, Handle mounting screw …2, Rubber foot …2, Rubber foot mounting screw …2 |
| Option | Mounting bracket: HY-1500VB (for vertical speaker mounting) HY-1500HB (for horizontal speaker mounting) Ceiling mount bracket: HY-C0801 Wall mount bracket: HY-W0801 Speaker stand: ST-33B |
