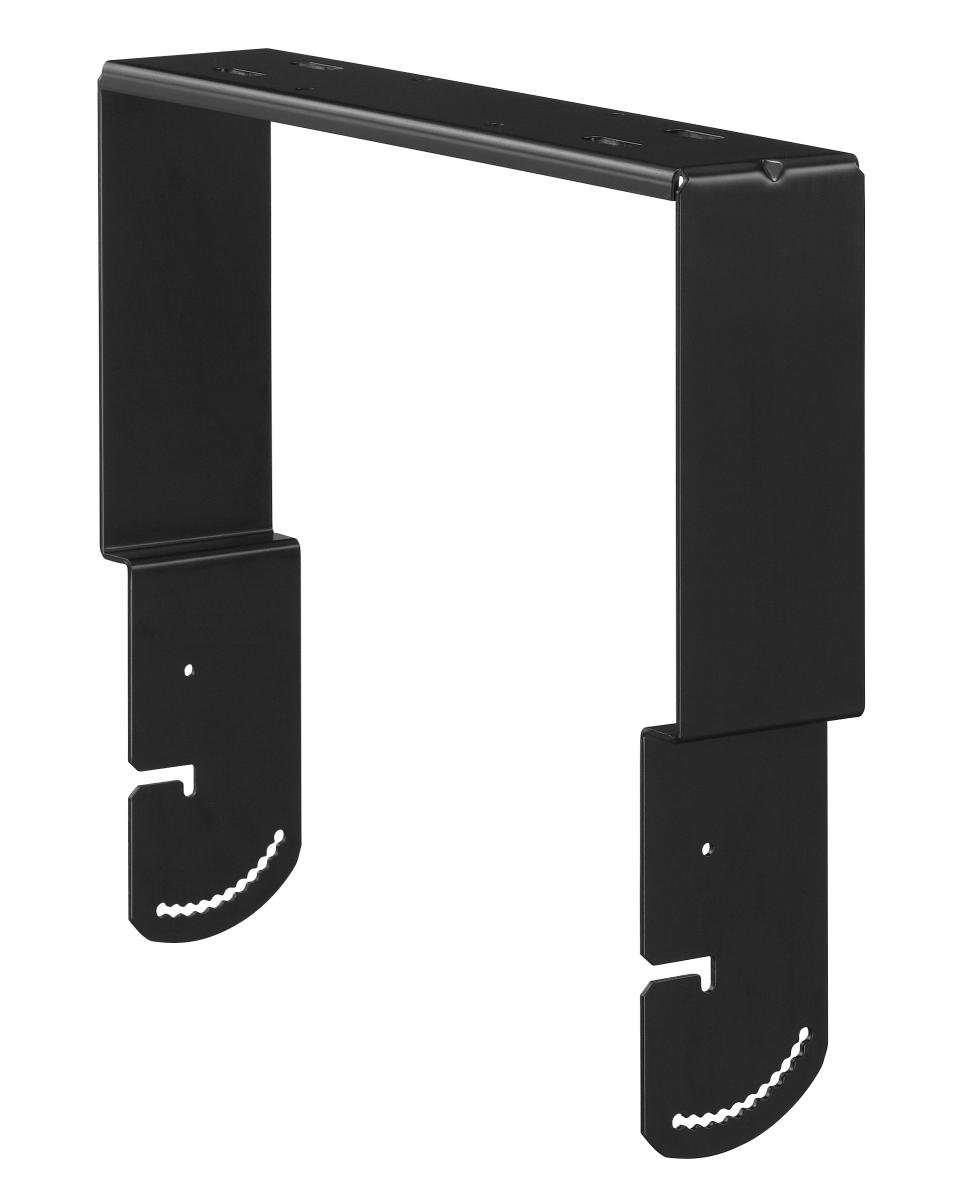

HY-1500VB Mounting Bracket
HY-1500VB
The HY-1500VB Mount Bracket is designed to mount speaker system to a wall or ceiling in a vertical configuration. It allows the speaker orientation angle to be adjusted from 15゜ upward to 60゜ downward when mounted on a wall, and from 15゜ upward to 90゜ downward when mounted to a ceiling.
| Finish | Steel plate, black, paint |
|---|---|
| Dimensions | 460.4 (W) × 403.2 (H) × 90 (D) mm (18.13 × 15.87" × 3.54")" |
| Weight | 3 kg (6.61 lb) |
| Accessory | Bracket holder …2, Bracket holder mounting screw …4, Speaker mounting screw …4, Nut for the optional bracket …4, Washer for the optional bracket …4 |
| Option | Ceiling mount bracket: HY-C0801, Wall mount bracket: HY-W0801 |
| Applicable Speaker (option) | HS-150B, HS-1500BT |
