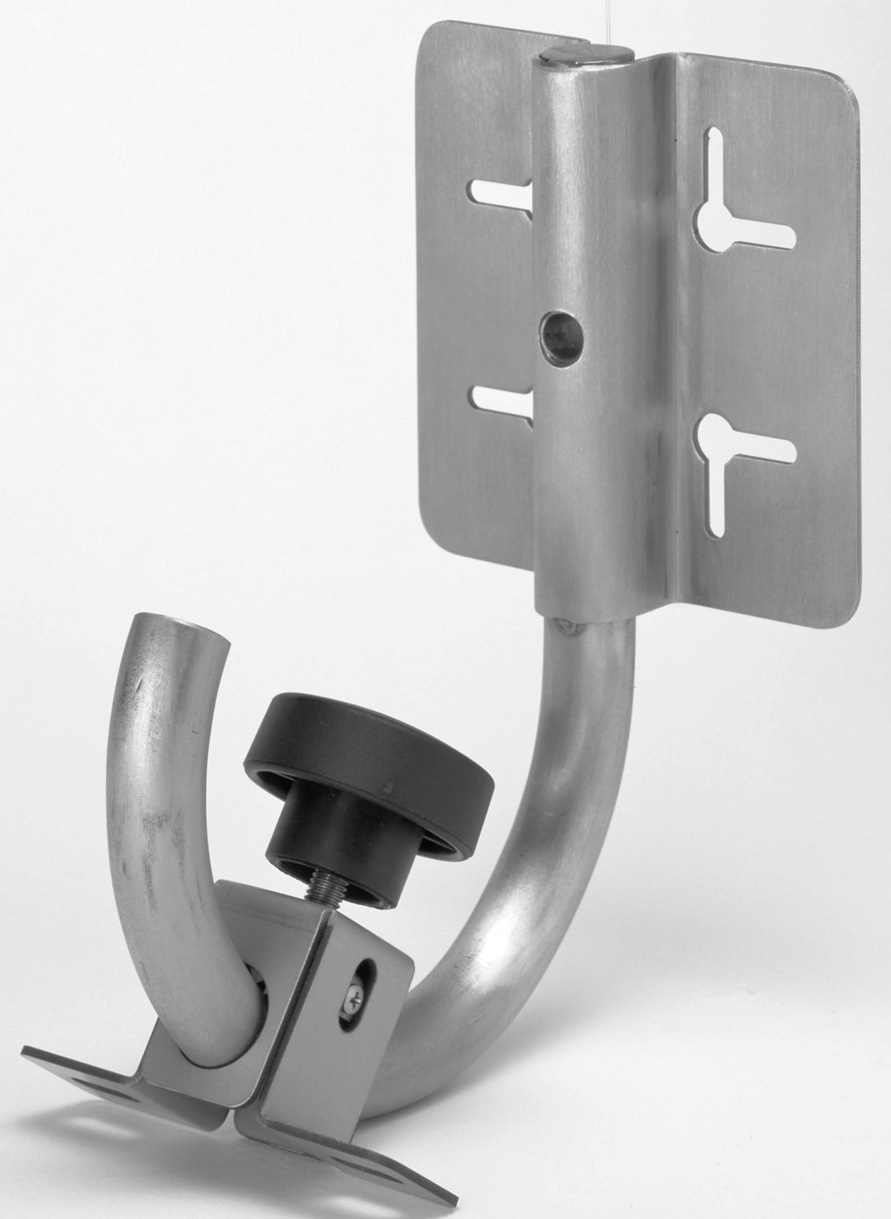

SP-410 Speaker Mounting Bracket
SP-410
The SP-410 bracket is used to mount a box speaker to a wall or surface. It can be installed in combination with a 2-unit electrical box and can easily set or change the speaker orientation.
| Maximum Speaker Load | 4 kg or less |
|---|---|
| Finish | Base, shaft: Stainless steel Bracket: Nickel-plated rolled steel plate |
| Accessory | Speaker mounting bracket……2, Electric work box mounting screw……4, Wall mounting screw……4, Bracket fixing screw……2 |
- Note:
(1) Be sure to use the SP-410 in combination with TOA's speakers.
| (2) Install the speaker indoors or under the eaves | where the speaker is not directly exposed to the rain |
|---|
