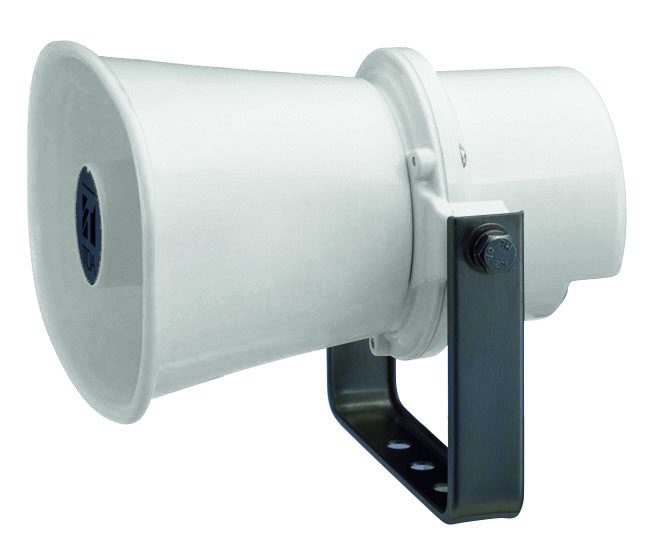

SC-610 Paging Horn Speaker

SC-610

The SC-610 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

사양
Rated Input 10 W (Mobile Mount use: 5 W)
Rated Impedance 8 Ω
Sound Pressure Level 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 315 Hz - 12.5 kHz
Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) -24 dB at 1 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 172 (W) × 161 (H) × 188 (D) mm
Weight 1 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
Note: Avoid installing the speaker in locations which vibrate considerably, or under environments easy to be oil-contaminated.
