PC-2268WP SPLASH-PROOF CEILING SPEAKER 6W
PC-2268WP

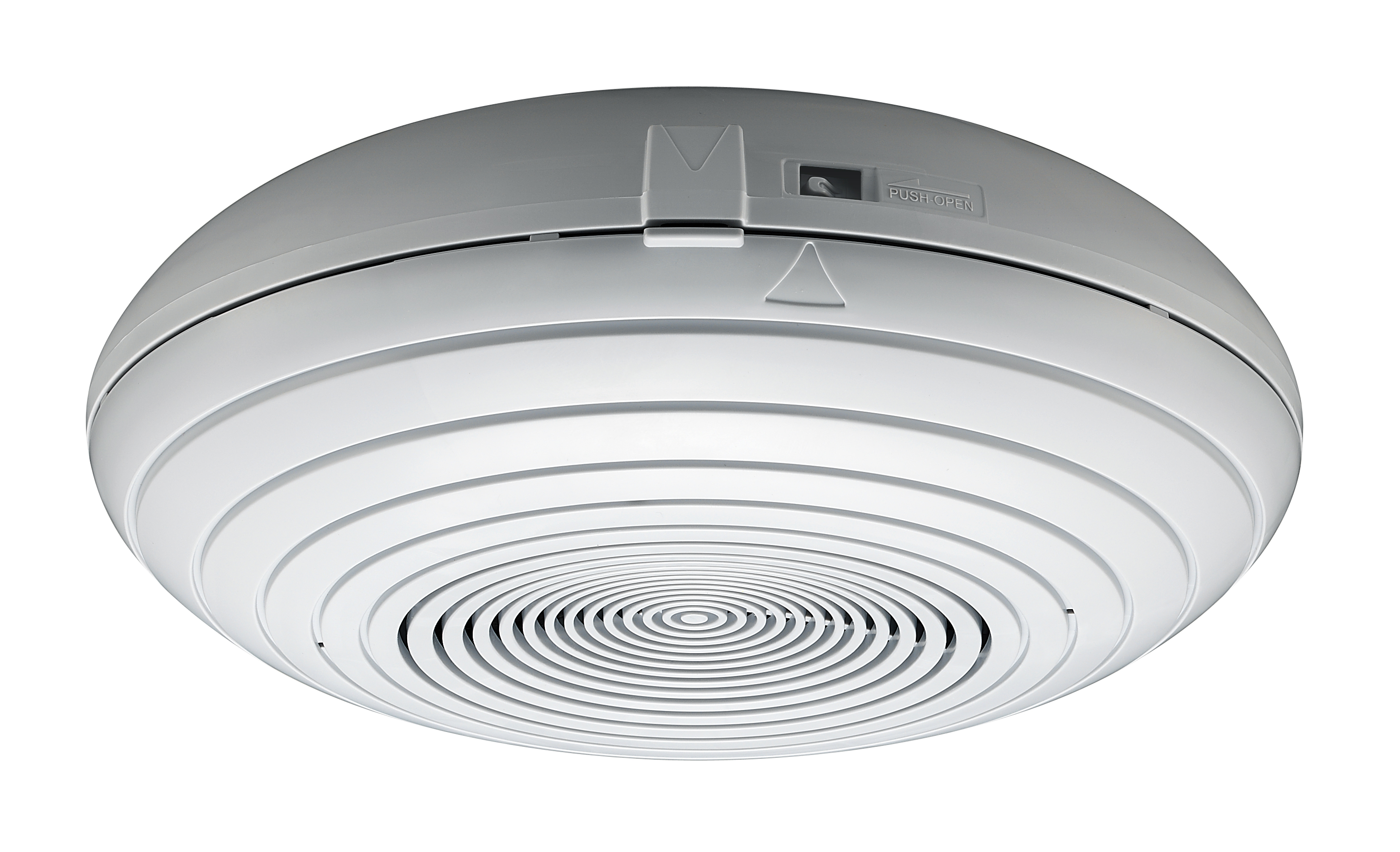

The PC-2268WP is a splash-proof surface mount ceiling speaker with rated input of 6 W (100 V line application). It meets IPX4 water protection requirements and can be installed in locations where it may not be directly exposed to wind and rain. Compact and attractive design to blend in with interior spaces. The push-in type input terminal provides an easy cable connection and allows bridge wiring. The input power change can be made easily by changing the tap position of the transformer. Rear-closed structure with a rear cover keeps performance and sound quality constant regardless of installation location.
| Rated Input | 6 W (for 100 V line), 3 W (for 70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 90 dB (1 W, 1 m, 330 Hz - 3.3 kHz, pink noise) |
| Frequency Response | 160 Hz - 16 kHz (20 dB below peak) |
| Speaker Component | 12 cm (5") cone-type |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) |
| Connection | Push-in connector (bridging terminal) |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Water Protection | IPX4 (conforms when the unit is installed to a flat horizontal ceiling.) |
| Finish | Front case, Rear case: Fire-resistant HIPS resin (resin material grade: UL94V-0), light gray Speaker mounting bracket: Surface-treated steel plate, off-white, powder coating |
| Dimensions | φ220 × 80.5 (D) mm (φ8.66" × 3.17") (unit only, excluding projection) φ150 × 5 (D) mm (φ5.91" × 0.2") (speaker mounting panel, excluding mounting screw) |
| Weight | 890 g (1.96 lb) (unit only), 180 g (0.4 lb) (speaker mounting panel) |
| Accessory | Speaker mounting panel …1, Switch box mounting screw (M4 × 35) …2, Ceiling mounting screw (4 × 35) …2, Knob nut …2 |
