PC-2268 SURFACE-MOUNT SPEAKER 6W
PC-2268

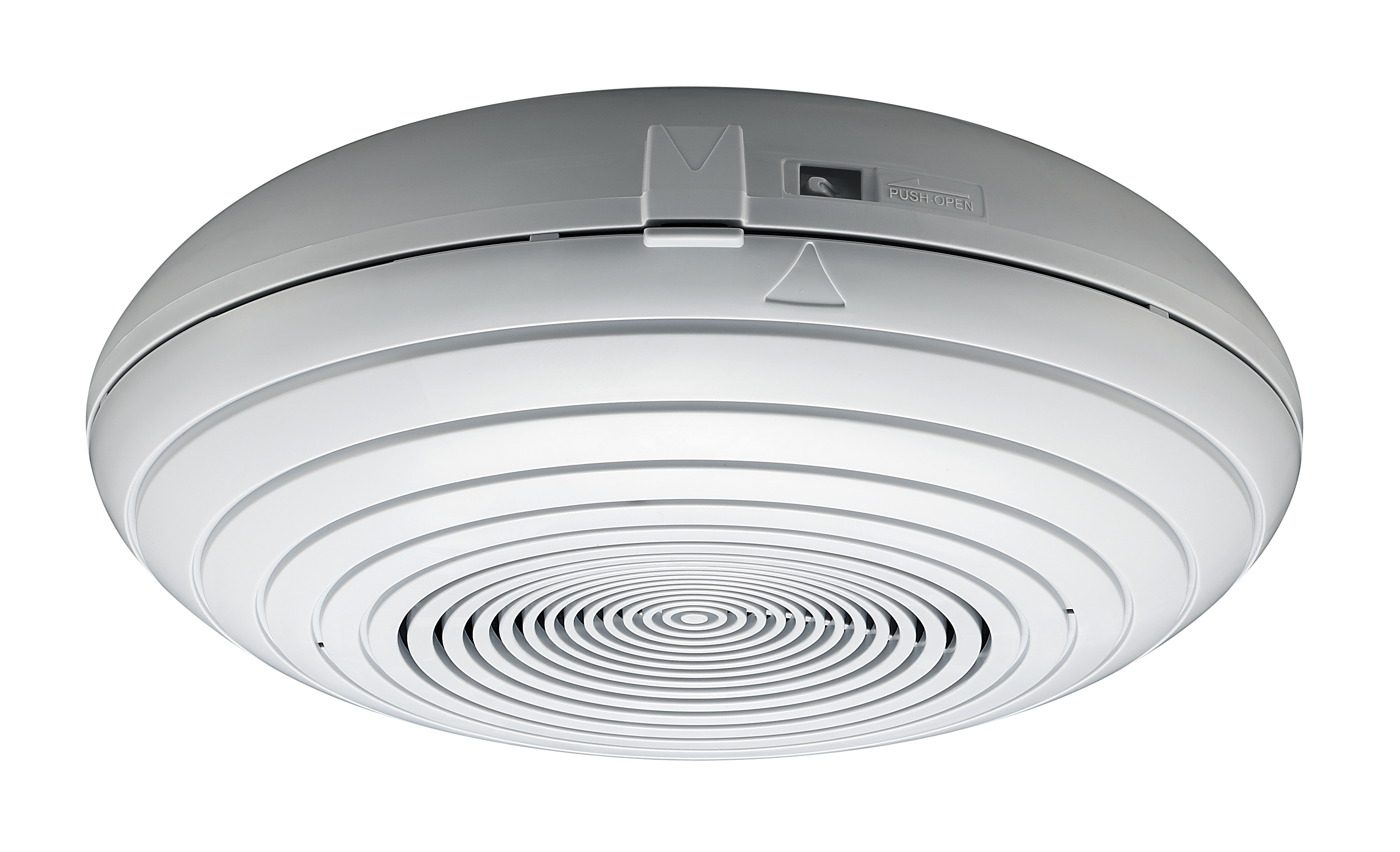

The PC-2268 is a surface-mount speaker with rated input of 6 W (100 V line application) designed for ceiling surface or wall surface installations. With the additional use of an electrical box, it can be installed to the location where no wall or ceiling is available for mounting. Compact and attractive design to blend in with interior spaces. The push-in type input terminal provides an easy cable connection and allows bridge wiring. The input power change can be made easily by changing the tap position of the transformer. Rear-closed structure with a rear cover keeps performance and sound quality constant regardless of installation location.
| Rated Input | 6 W (for 100 V line), 3 W (for 70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 90 dB (1 W, 1 m, 330 Hz - 3.3 kHz, pink noise) |
| Frequency Response | 160 Hz - 14 kHz (20 dB below peak) |
| Speaker Component | 12 cm (5") cone-type |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) |
| Connection | Push-in connector (bridging terminal) |
| Operating Temperature | -10゜ to +50゜ (14゜F to 122゜F) |
| Finish | Front case, Rear case: Fire-resistant HIPS resin (resin material grade: UL94V-0), light gray |
| Dimensions | φ220 × 80.5 (D) mm (φ8.66" × 3.17") (excluding projection) |
| Weight | 880 g (1.94 lb) |
| Accessory | Switch box mounting screw (M4 × 35) …2, Ceiling mounting screw (4 × 35) …2 |
