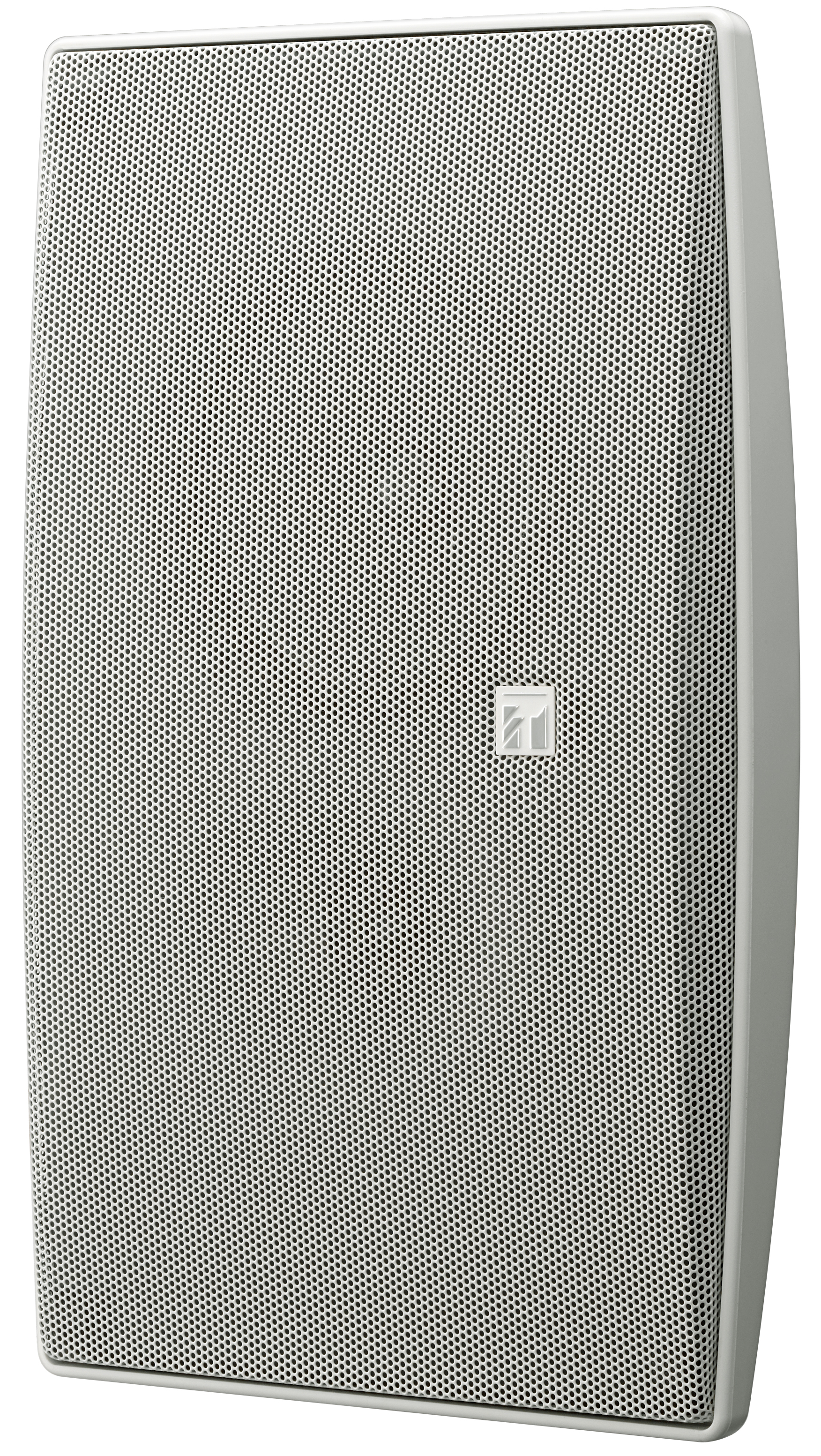

BS-634 Wall Mount Speaker
BS-634
The BS-634 can be installed easily on the wall with help of the plug-in speaker receptacle.
The BS-634 can be installed easily on the wall with help of the plug-in speaker receptacle.
| Rated Input | 6 W |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 120 - 18,000 Hz |
| Speaker Component | 12 cm (5") cone-type |
| Input Connector | M4 screw terminal, distance between barriers: 11 mm (0.43") |
| Finish | Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent), off-white (RAL 9010 or equivalent color) Net: Surface-treated steel plate, off-white (RAL 9010 or equivalent color), paint |
| Dimensions | 210 (W) × 330 (H) × 80 (D) mm (8.27" × 12.99" × 3.15") |
| Weight | 1.3 kg (2.87 lb) |
| Accessory | Speaker receptacle …1, Wall mounting screw …2 |
