VX-3000PM
Preamp Matrix Panel
VX-3000PM

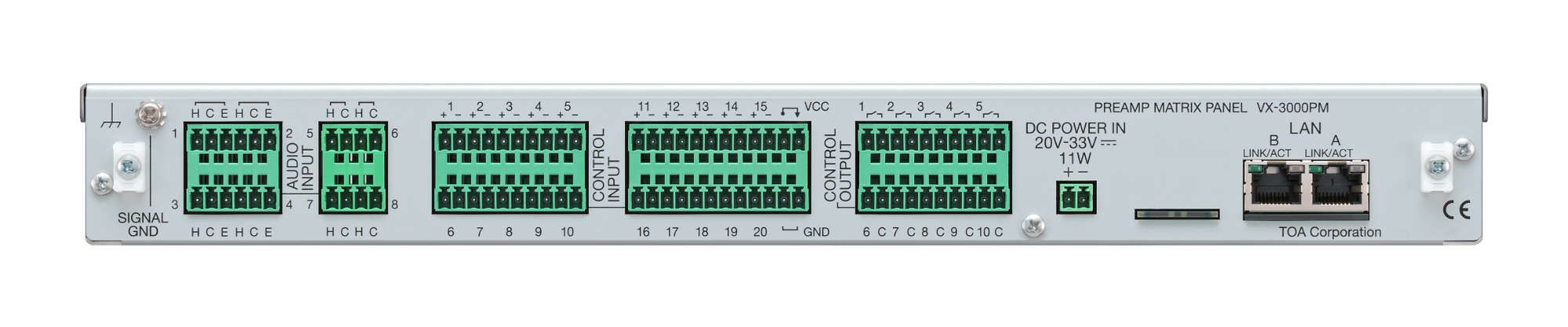

The VX-3000PM is a preamplifier matrix panel designed for exclusive use with the VX-3000 Series. The number of audio inputs, control inputs, and control outputs can be increased by connecting the VX-3000PM to the VX-3000 Frame via network. It is equipped with 8 audio inputs and their corresponding volume controls, 20 control inputs, and 10 control outputs. A single VX-3000PM unit can be connected to a single VX-3000 Frame, and a maximum of 40 units can be configured per system. Unicast audio transmission can be made among the VX-3000PM units, enabling broadcast activation and microphone announcement at multiple places. It can be mounted in an EIA equipment rack (1U size).
- Preamplifier matrix panel enabling the additional audio inputs,control inputs and control outputs to the VX-3000 syste
- Equipped with 8 audio inputs with volume controls, 20control inputs and 10 control outputs
- Provides unicast audio streaming functionality.
- Unicast audio streaming is possible among VX-3000PMs.
- 1 unit can be connected to a single VX-3000 Frame and a maximum of 40 units can be configured per system
Volume control section cover: Acrylic resin, gray smoke
