TZ-S60W-EA

Slim Array Speaker

TZ-S60W-EA

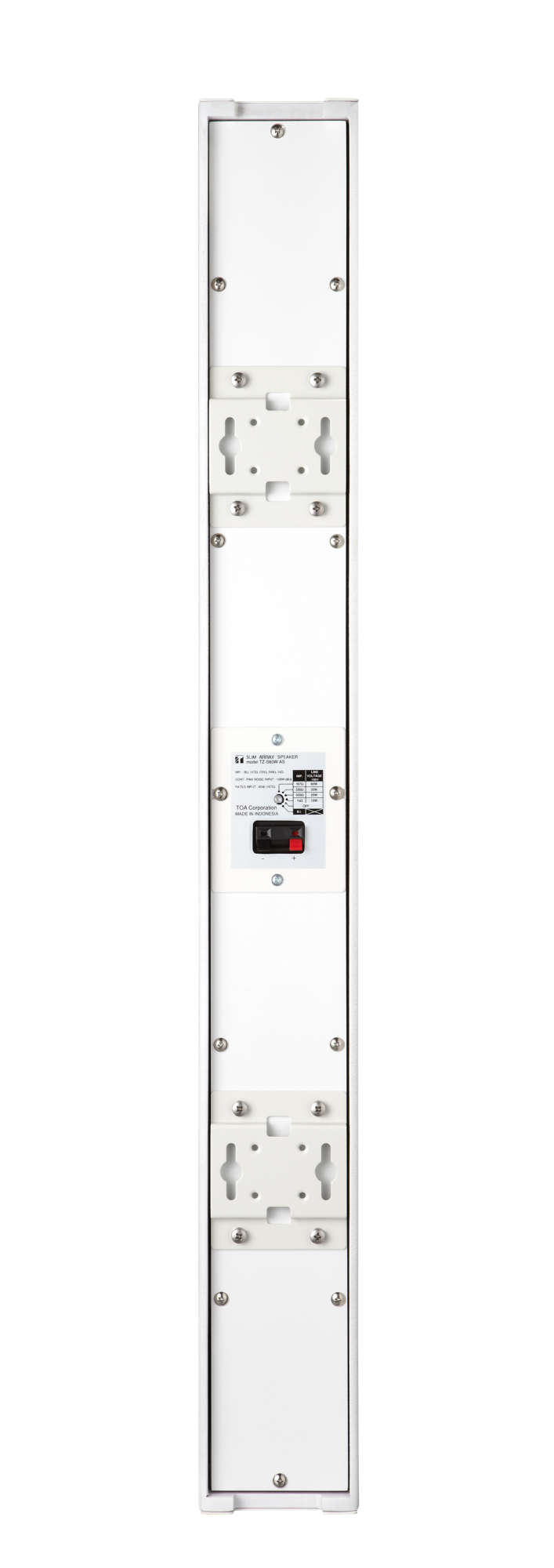

TZ-S60W Slim Array Speaker, equipped with 9 vertically arrayed 8cm speaker units, delivers high clarity sound with a 90° horizontal x 0° vertical directivity control. This feature enables it to project clear sound even in rooms with reverberation problem. Two TZ-S60W can be stacked to improve sound transmission distance and the vertical coverage area. For installation flexibility, both low impedance and high impedance is available by a rotary switch.

90° horizontal x 0° vertical directivity control
Low impedance and high impedance selectable by a rotary switch
Accessory speaker brackets provide installation flexibility
TZ-S60W x 2pcs can be stacked for wider coverage

스팩 A&E사양 다운로드

Enclosure

Bass-reflex type

Maximum Input Level

20W (continuous pink noise) (Low imp.)

정격입력

60W (High imp.)

정격임피던스

Low Impedance: 8Ω
100V line: 167Ω (60W), 330Ω (30W), 500Ω (20W), 1kΩ (10W)

감도

95 dB (1 W, 1 m)

주파수응답

180Hz - 15kHz

지향 각도

Horizontal: 90°, Vertical: 0°

Speaker Component

8cm (3”) cone-type x 9

Impedance Change

Rotary switch (selectable)

Connection

Push-in terminals

동작 온도

-10°C to +50°C

마감

Enclosure: MDF, paint, white
Punched net, wall bracket, side, panel, metal cover: SECC, paint, white

치수

100 (W) x 883 (H) x 130 (D) mm

중량

8.2kg

부속품

Speaker bracket x 1, Joint bracket x 1, Wall bracket x 1, Fixing bolt (M5 x 60) x 1, Hexagon bolt (M6 x 12, with plain washer and spring washer) x 2, Machine screw (M5 x 15, with plain washer and spring washer) x 4

별매품

HY-S60W (Side stack bracket x 2, Rear stack bracket x 1)

전체 스팩을 보려면 테이터시트를 다운로드 하세요.

The slim array speaker shall be a direct-radiating line speaker suitable for wall mount. The speaker shall consist of 9 pieces, 8 cm cone-type drivers arranged in a vertical line and housed in a tuned and ported enclosure. The speaker input connector shall include push-in terminal connection.
