TS-D1000-M1
Standard Microphone
TS-D1000-M1

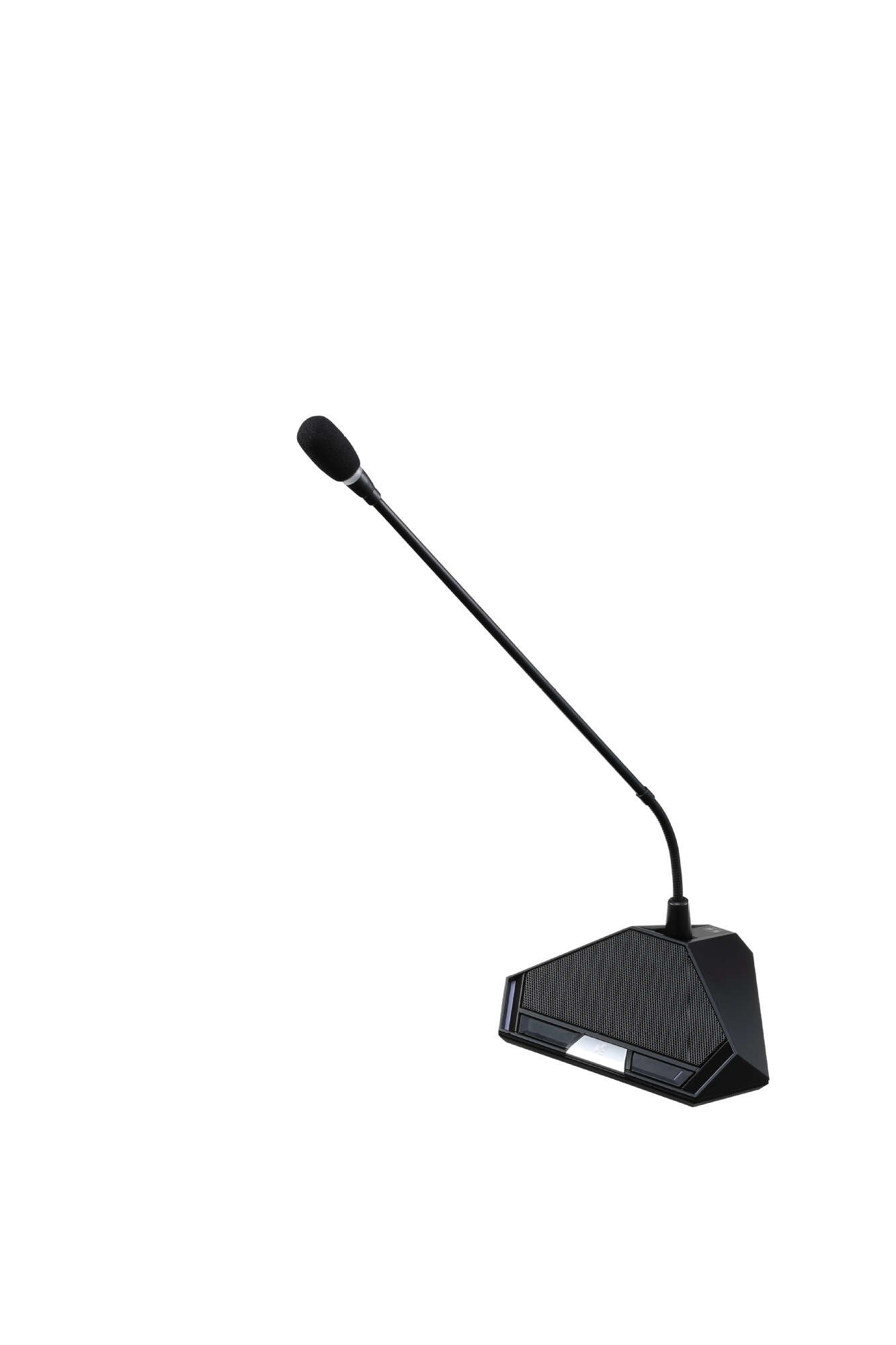

The TS-D1000-M1 Microphone is a dedicated component of the Digital conference system's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance.
- Gooseneck microphone
- Unidirectional electret condenser microphone
- LED shows microphone status
- XLR-3-12C connector
- Sensitivity:-37 dB (1 kHz, 0 dB = 1 V / PA)
- Frequency response: 100 Hz - 13 kHz
- Length: 518 mm (1.7 ft)
Type
Electret condenser microphone
Directivity
Unidirectional
Impedance
1.4 kΩ
Rated Sensitivity Level
-37 dB (1 kHz 0 dB = 1 V/Pa)
주파수응답
100 Hz - 13 kHz
Output Connector
Equivalent to XLR-3-12C
LED 표시기
Speech indicator (ring type) Red
동작 온도
0 °C to 40 °C (32 ºF to 104 ºF)
동작 습도
90%RH or less (no condensation)
마감
Gooseneck: Stainless steel, black
Other: ABS resin, black
Other: ABS resin, black
Length
518 mm (1.7 ft)
중량
110 g (0.24 lb)
Compatible Unit
Chairman unit: TS-D1000-CU
Delegate unit: TS-D1000-DU
Delegate unit: TS-D1000-DU
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
옵션 액세서리
The ergonomically designed short stem microphone shall be able to simply plug into an associated chairman or delegate unit via the built-in XLR connector and shall have a frequency response of 100 Hz – 13 kHz with a sensitivity of -37dB.
The microphone shall be of an electret condenser type that will provide optimum performance.
The microphone shall have a red ring at the top that shall illuminate when active indicating its status to others.
The microphone shall be finished with a black stainless steel gooseneck with an overall length of 518 mm (1.7’) and shall weigh 110 g (0.24 lb.)
Applicable units: TS-1000-CU chairman unit, TS-1000-DU delegate unit manufactured by TOA Corporation
Manufacturer: TOA Corporation
Model: TS-D1000-M1
