TS-923
Standard Microphone Unit
TS-923

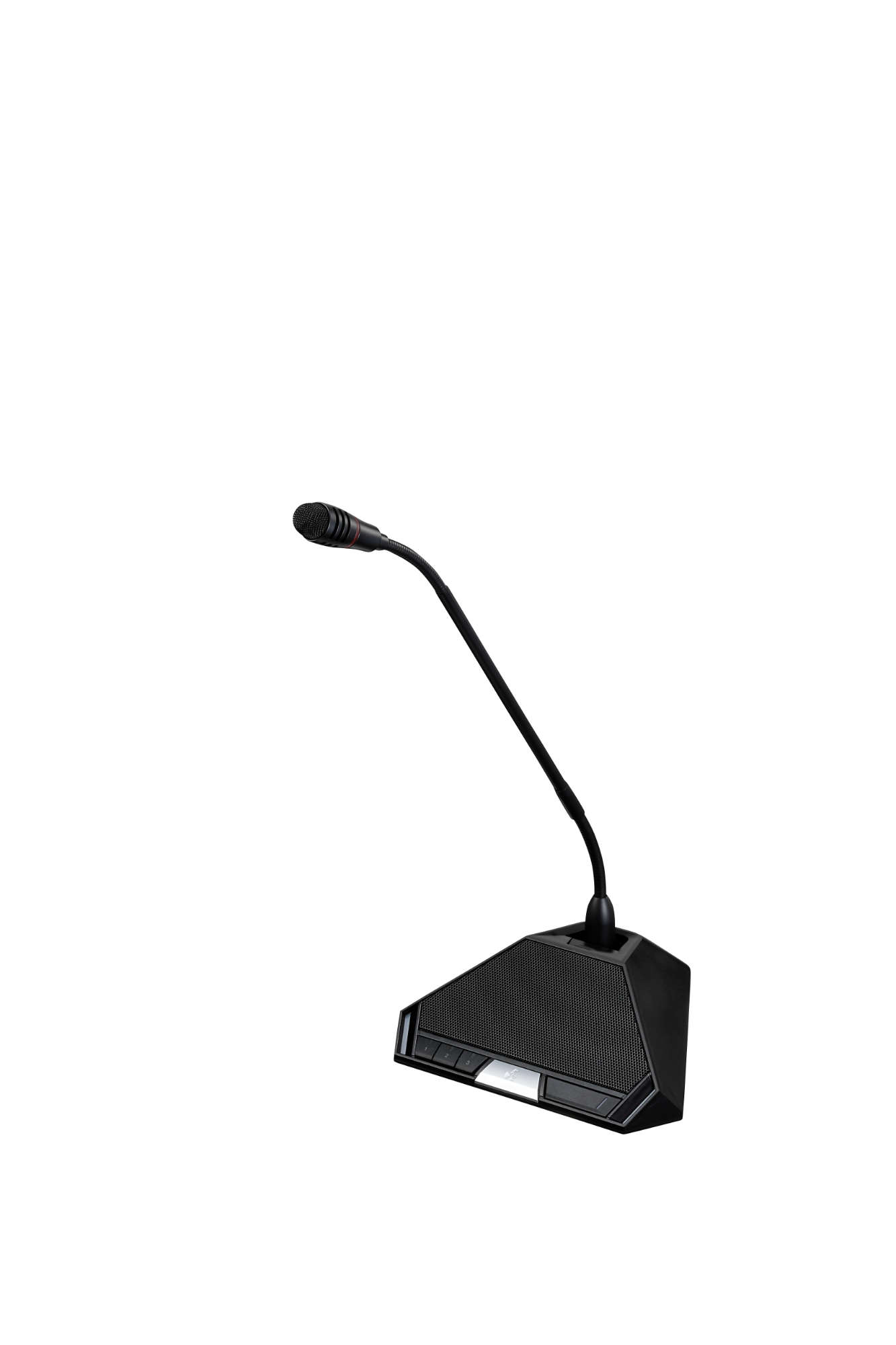

The TS-923 Microphone is a dedicated component of the Infrared Conference System's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance. Its gooseneck has two flexible parts, making it possible to adjust the microphone to an optimal position for the user.
- Gooseneck microphone with two flexible sections
- Unidirectional electret condenser microphone
- Red lights ring to display talk released
- XLR-4-32 connector
- Sensitivity:-37 dB (1 kHz, 0 dB = 1 V / PA)
- Frequency response: 100 Hz - 13 kHz
- Length: 470 mm (1.54 ft)
Type
Electret condenser microphone
Directivity
Unidirectional
Impedance
1.4 kΩ
Rated Sensitivity Level
-37 dB (1 kHz 0 dB = 1 V/Pa)
주파수응답
100 Hz - 13 kHz
Output Connector
Equivalent to XLR-4-32
LED 표시기
Speech indicator (ring type) Red
Bending Section
2
동작 온도
0 °C to +40 °C (32 °F to 104 °F)
동작 습도
90 %RH or less (no condensation)
마감
Body: Aluminum, black, semi-gloss, paint
Shaft: Copper alloy, black, semi-gloss, paint
Shaft: Copper alloy, black, semi-gloss, paint
Length
470 mm (1.54 ft)
중량
130 g (0.29 lb)
Compatible Unit
Chairman unit: TS-821, TS-921, TS-811, TS-911
Delegate unit: TS-822, TS-922, TS-812, TS-912
Delegate unit: TS-822, TS-922, TS-812, TS-912
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
Gooseneck microphone with red lights ring to display talk released, with two flexible sections. XLR-4-32 connector for connection to the Delegate and Chairman Units of Infrared Conference systems: TS-820(RC)/TS-920RC.
Sensitivity:-37 dB (1 kHz, 0 dB = 1 V / PA)
Frequency response: 100 Hz - 13 kHz
Color: black, semi-gloss, paint
Length: 470 mm (1.54 ft)
Weight: 130 g (0.29 lb)
The standard microphone unit shall be the TOA model TS-923.
