SR-S4L
Line Arrays
SR-WB4
Wall Mounting Bracket
SR-WB4

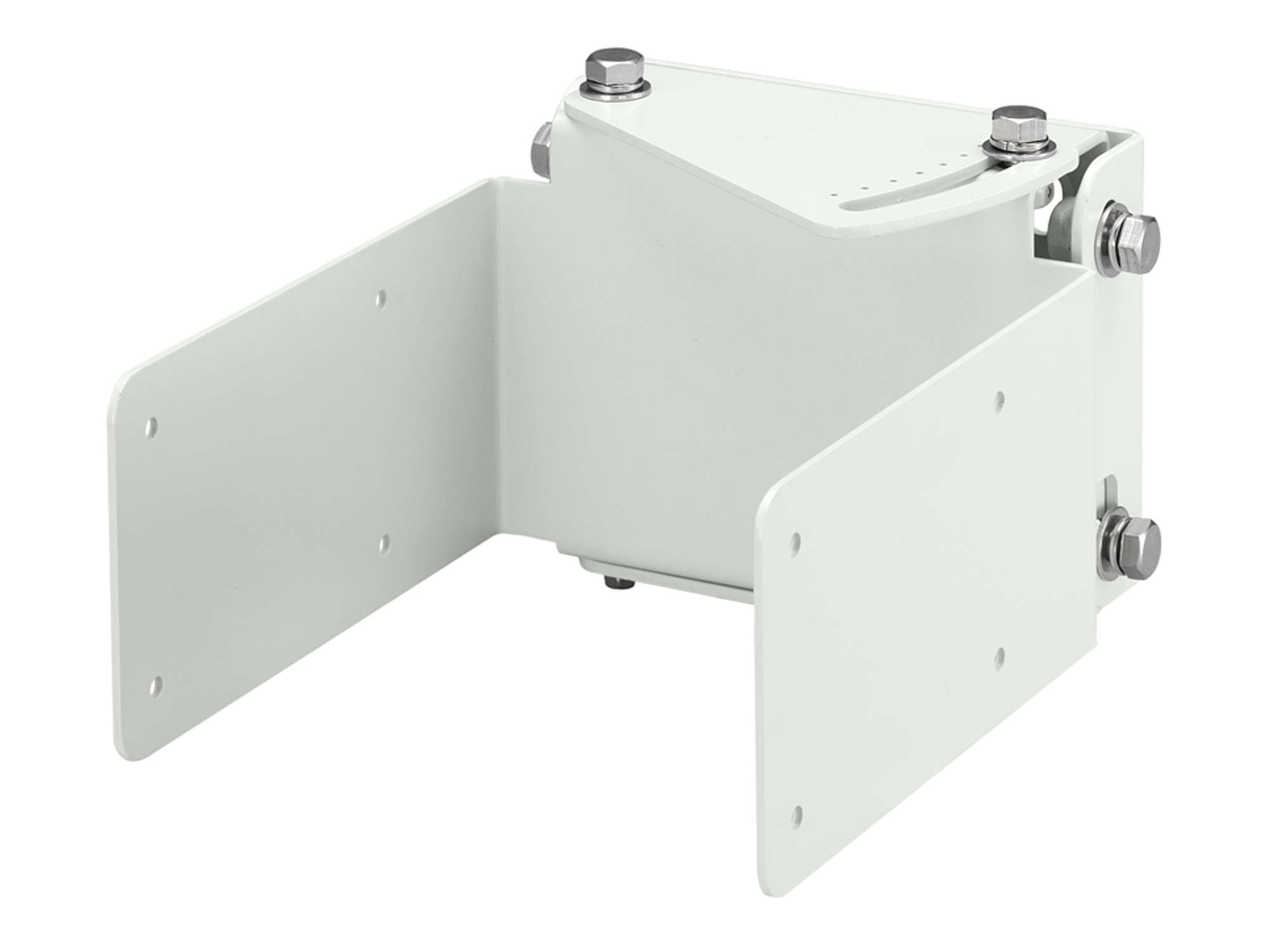

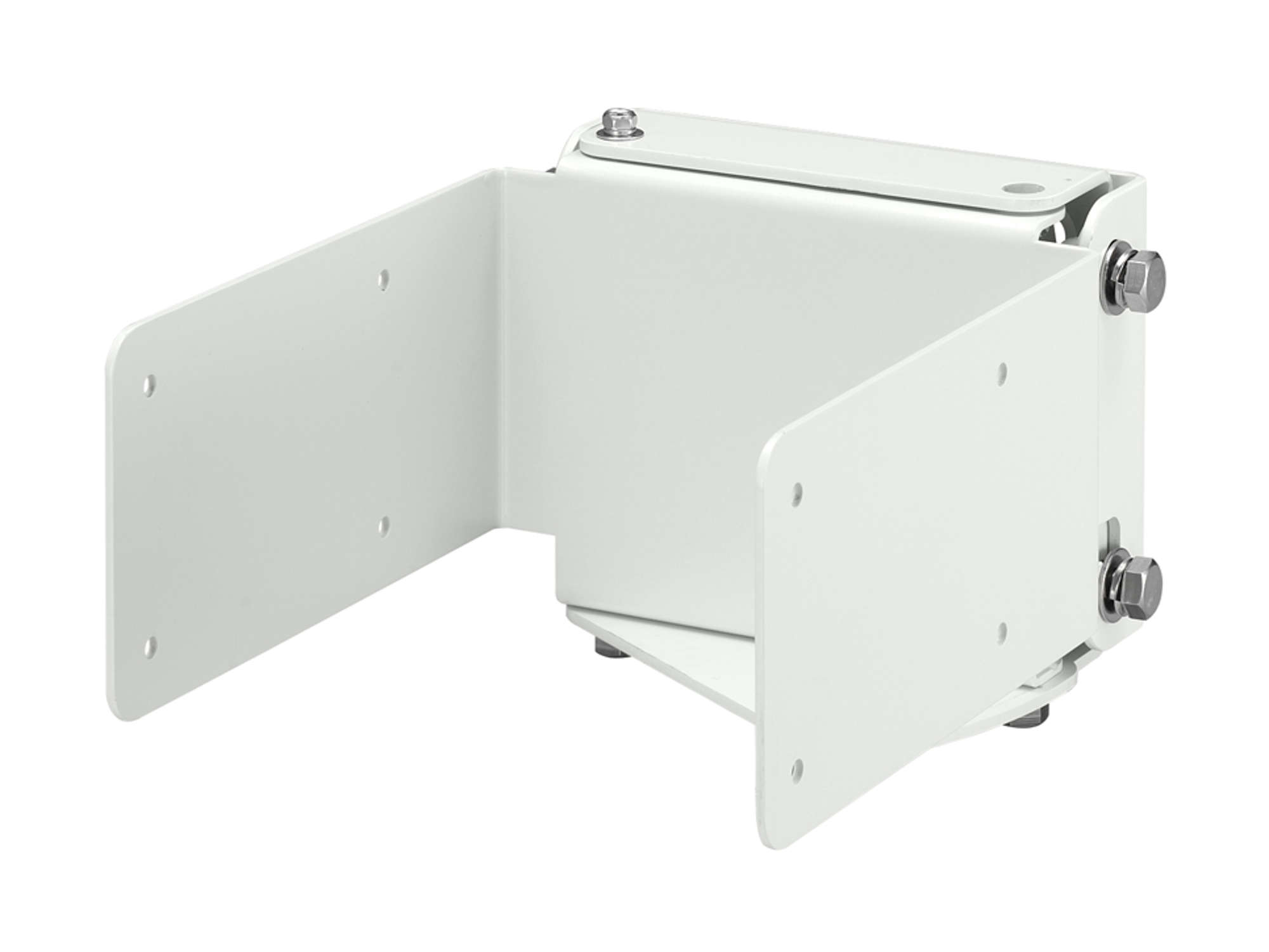

The SR-WB4 bracket is used to mount the SR-S4L Line array speaker upright to the wall.
Number of Speakers to be Mounted
Max. 2 (when jointed with an optional SR-EP4)
마감
Steel plate, white, paint
중량
4.6 kg (including accessories)
부속품
Speaker mounting screw (M5 upset head) …16,
Bracket assembling screw (M8 upset head) …8
Bracket assembling screw (M8 upset head) …8
Product Composition
Speaker mounting bracket A …1, Speaker mounting bracket B …1,
Bracket base …2
Bracket base …2
별매품
Extension plate: SR-EP4
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
Supported Products
Wall mounting kit for one or two (with SR-EP4) slim line array speaker SR-S4L, swiveling according to mounting horizontally to 30 ° to the left or right, including all accessories for mounting the speaker. Solid construction made of white painted steel sheet.
소프트웨어, 펌웨어 또는 EASE 파일과 같이 기술 자료에 추가 액세스하려면 로그인하세요.
