SR-C15BWP
High Performance Subwoofer
SR-C15BWP
The SR-C15B Sub-woofer system is designed to be used in conjunction with the SR-C8L or SR-C8S Line array speaker. Recommended digital speaker processor is the DP-SP3 (option).

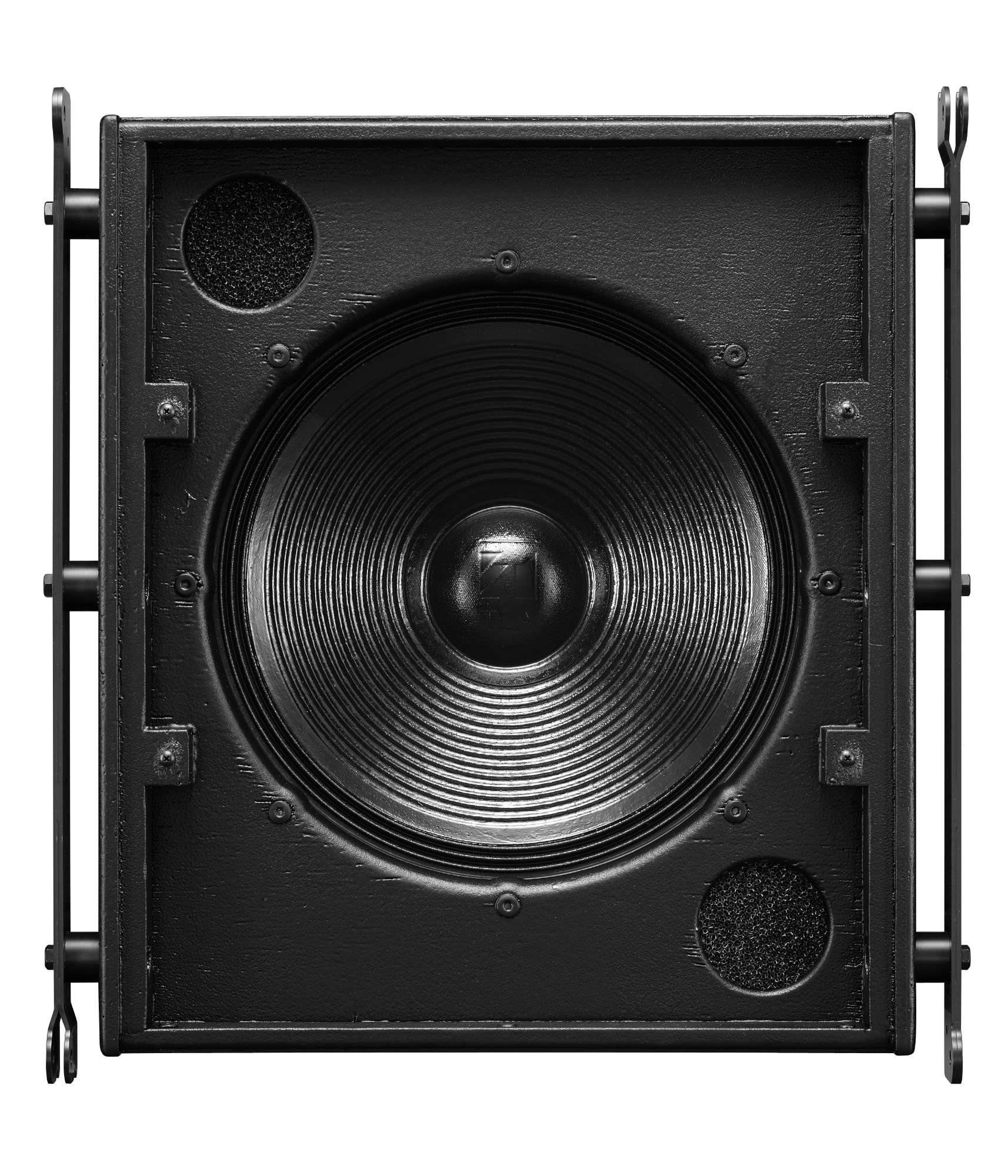

- 38cm (15“) subwoofer
- Input connectors include screw terminal connections and two Neutrik NL4 type sockets
- High power handling
- Enclosure equipped with M8 threaded steel plates for the secure attachment of optional accessory brackets
- Accessory brackets for suspension and stand mounting
Enclosure
Bass-reflex type
Power Handling
Continuous program: 450 W
정격임피던스
8 Ω
감도
93 dB (1 W, 1 m)
주파수응답
40 - 400 Hz (when recommended parameters are applied by the optional DP-SP3)
Crossover Frequency
125 Hz (when recommended parameters are applied by the optional DP-SP3)
Speaker Component
38 cm (15) cone-type

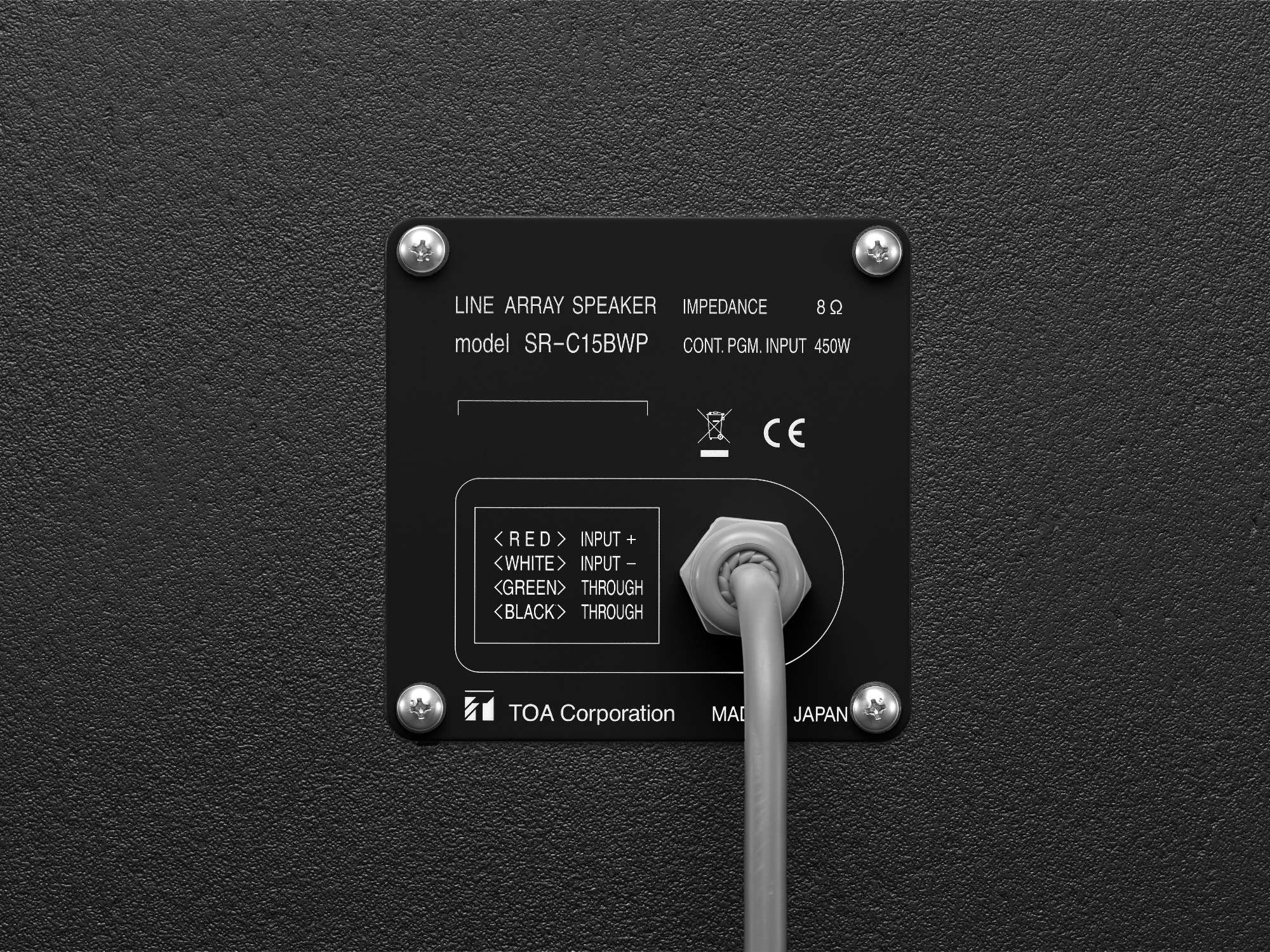

Connected Cable
Direct cable withdrawal from internal speaker: Φ8.6 mm (Φ0.34)
Water Protection
IPX4
동작 온도
-10℃ to +50℃ (14℉ to 122℉)
마감
Enclosure: Plywood, black, urethane coating
Front grille: Punched stainless steel, black, paint
Front grille: Punched stainless steel, black, paint
치수
526.6 (W) x 594.8 (H) x 550 (D) mm (20.73 x 23.42" x 21.65")
중량
41 kg (90.39 lb)
부속품
M8 connection bolt …4
별매품
Rigging frame: SR-RF8WP
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
옵션 액세서리
The speaker shall be sub-woofer system. The component shall consist one 15" (38 cm) woofer. The speaker shall include an integral input connection cable, 8.6 mm (0.34") outside diameter, 4-conductor, 3 m (9.84") long. The speaker shall meet the following performance criteria. Power handling: 450 W continuous program. Frequency response (10 dB below rated pressure sensitivity, with recommended crossover and equalization) 40 to 400 Hz. Sensitivity (1 W at 1 m): 93 dB. Impedance: 8 ohms nominal.
The speaker enclosure shall be made of plywood and finished with black urethane coating. The speaker grille shall be made from a single punched stainless steel plate and finished with black paint. The speaker shall comply with the IEC IPX4 standard for dust and water resistance and operate within a temperature range from -10°C to +50°C (14°F to 122°F). The dimensions (W x H x D) shall be 526.6 x 594.8 x 550 mm (20.73" x 23.42" x 21.65") and weight (including accessory brackets) shall be 41 kg (90.39 lbs.). The speaker enclosure shall be equipped with M8 threaded steel plates for the secure attachment of optional accessory brackets. Available accessory brackets for suspension and stand mounting shall be made of steel.
The loudspeaker shall be TOA model SR-C15BWP.
The rigging frame shall be TOA model SR-RF8WP.
