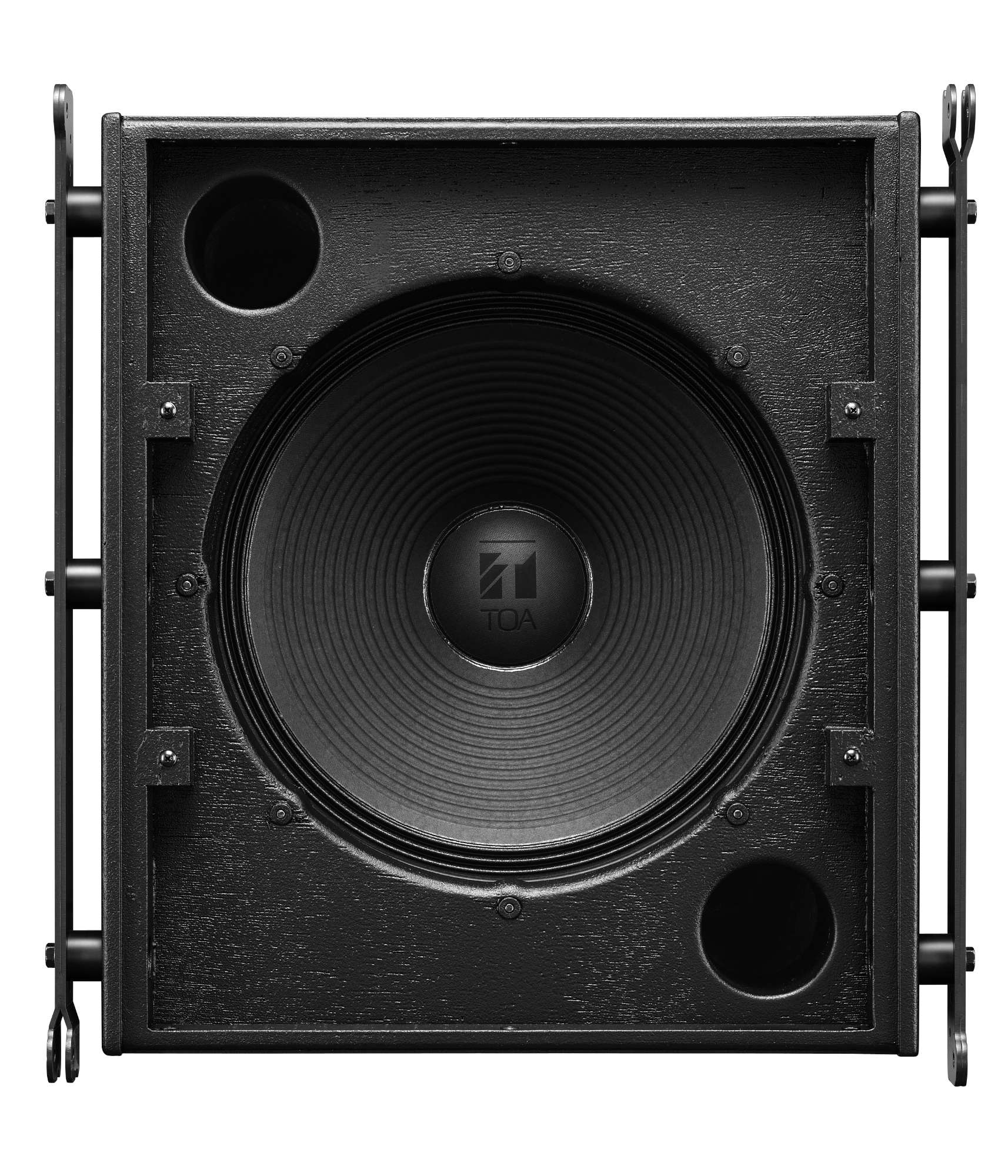

SR-C15B
High Performance Subwoofer
SR-C15B
The SR-C15B Sub-woofer system is designed to be used in conjunction with the SR-C8L or SR-C8S Line array speaker. Recommended digital speaker processor is the DP-SP3 (option).
- 38cm (15“) subwoofer
- Input connectors include screw terminal connections and two Neutrik NL4 type sockets
- High power handling
- Enclosure equipped with M8 threaded steel plates for the secure attachment of optional accessory brackets
- Accessory brackets for suspension and stand mounting
Enclosure
Bass-reflex type
Power Handling
Continuous program: 450 W
정격임피던스
8 Ω
감도
93 dB (1 W, 1 m)
주파수응답
40 - 400 Hz (when recommended parameters are applied by the optional DP-SP3)
Crossover Frequency
125 Hz (when recommended parameters are applied by the optional DP-SP3)
Speaker Component
38 cm (15) cone-type
Input Connector
M4 screw terminal, distance between barriers: 10.0 mm (0.39")
and Neutrik NL4MPXX x 2
and Neutrik NL4MPXX x 2
마감
Enclosure: Plywood, black, urethane paint
Front grille: Punched steel plate, black, paint
Front grille: Punched steel plate, black, paint
치수
526.6 (W) x 594.8 (H) x 550 (D) mm (20.73 x 23.42" x 21.65")
중량
41 kg (90.39 lb)
부속품
M8 connection bolt …4
별매품
Rigging frame: SR-RF8
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
The speaker shall be sub-woofer system. The component shall consist one 15" (38 cm) woofer. The speaker input connectors shall include screw terminal connections and two Neutrik NL4 type sockets. The speaker shall meet the following performance criteria. Power handling: 450 W continuous program. Frequency response (10 dB below rated pressure sensitivity, with recommended crossover and equalization) 40 to 400 Hz. Sensitivity (1 W at 1 m): 93 dB. Impedance: 8 ohms nominal.
The speaker enclosure shall be made of plywood and finished with black urethane paint. The speaker grille shall be made from a single punched steel plate and finished with black paint. The dimensions (W x H x D) shall be 526.6 x 594.8 x 550 mm (20.73" x 23.42" x 21.65") and weight (including accessory brackets) shall be 41 kg (90.39 lbs.). The speaker enclosure shall be equipped with M8 threaded steel plates for the secure attachment of optional accessory brackets. Available accessory brackets for suspension and stand mounting shall be made of steel.
The loudspeaker shall be TOA model SR-C15B.
The rigging frame shall be TOA model SR-RF8.
