PC-3WR
Splash-Proof Ceiling Speaker
PC-3WR

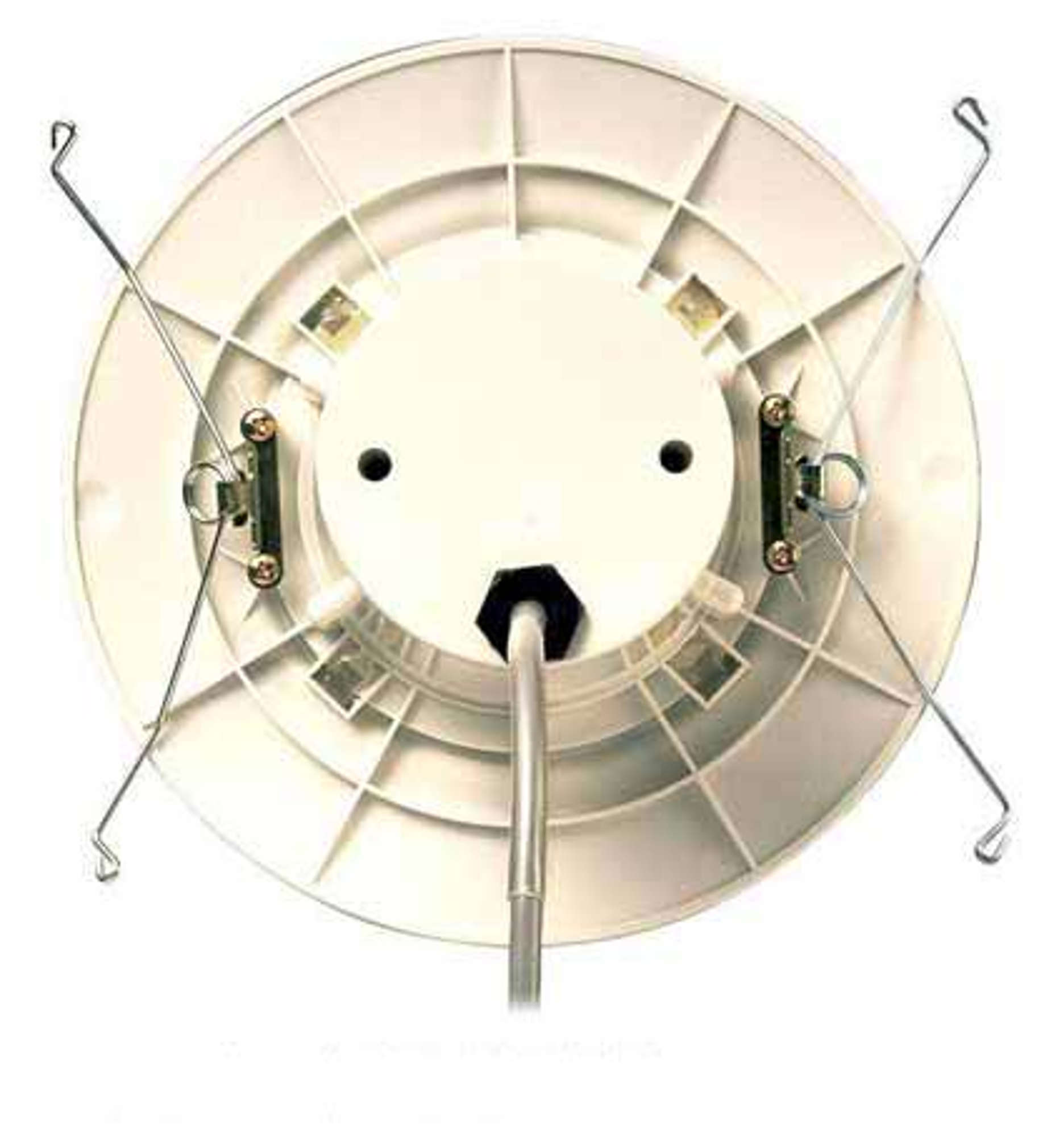

The PC-3WR is a completely-sealed, flush-mounted ceiling speaker employing a high power handling, splash-proof, small full-range speaker. It can be quickly installed by means of a spring catch system, reducing labor in construction work. Its ideal applications include washrooms, locker rooms of the pool, and other humid locations.
- For humid or high temperature areas
- Wide temperature range of -10 to 50°C
- Fits in 150 mm holes
정격입력
3 W, 1 W
정격임피던스
3.3 kΩ (3 W), 10 kΩ (1 W)
Sound Pressure Level
88 dB (1 W, 1 m)
주파수응답
180 Hz - 20 kHz
Dimensions for Fixing Hole
Ø150 mm (The speaker can be mounted to the ceiling panel with thickness of up to 50 mm)
방진/방수 성능
IP64
동작 온도
-10 °C to +50 °C
마감
Frame and case: ABS resin, off-white
Punching net: stainless steel
Punching net: stainless steel
치수
Ø180 x 120 (D) mm
중량
700 g
[Note] Avoid using unit in locations where it is splashed with water.
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
Ceiling speakers, protected against high humidity and splash water, for humid rooms such as showers, lavatories, etc.
