NX-100
Network Audio Adapter
NX-100

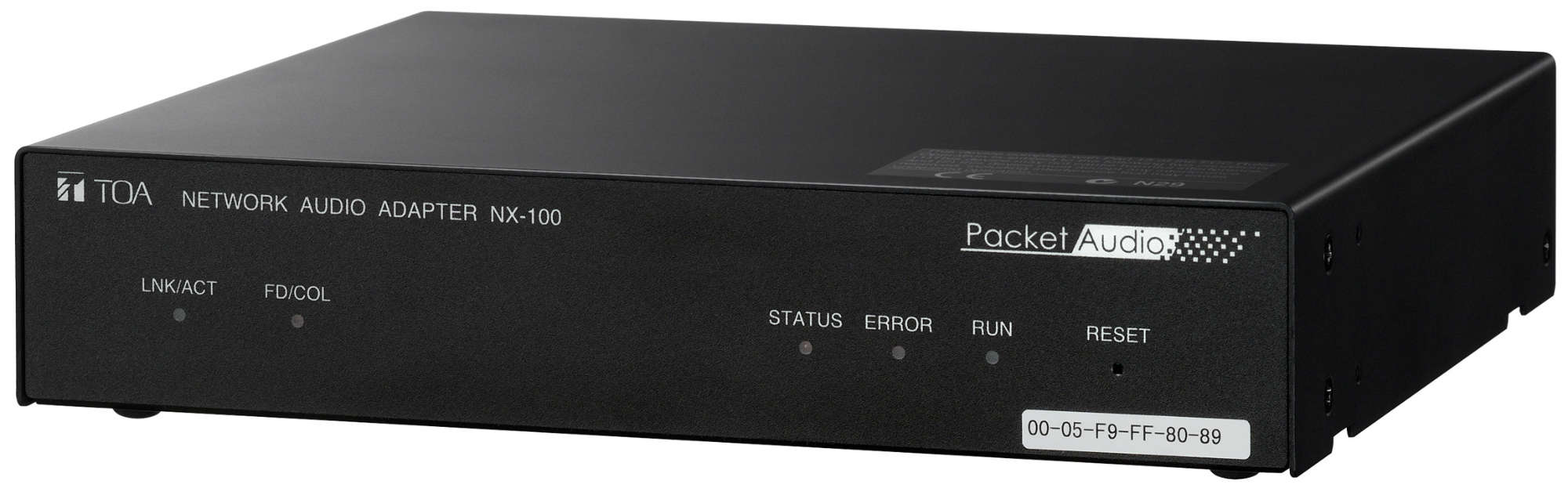

The NX-100 Network Audio Adapter can transmit high-quality audio signals and such control data as serial data over IP networks, such as LAN or Internet, in real time.It is especially useful when transmitting audio signals to remote locations, as Internet use keeps running costs lower than the use of dedicated lines. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard rack (1 unit size).

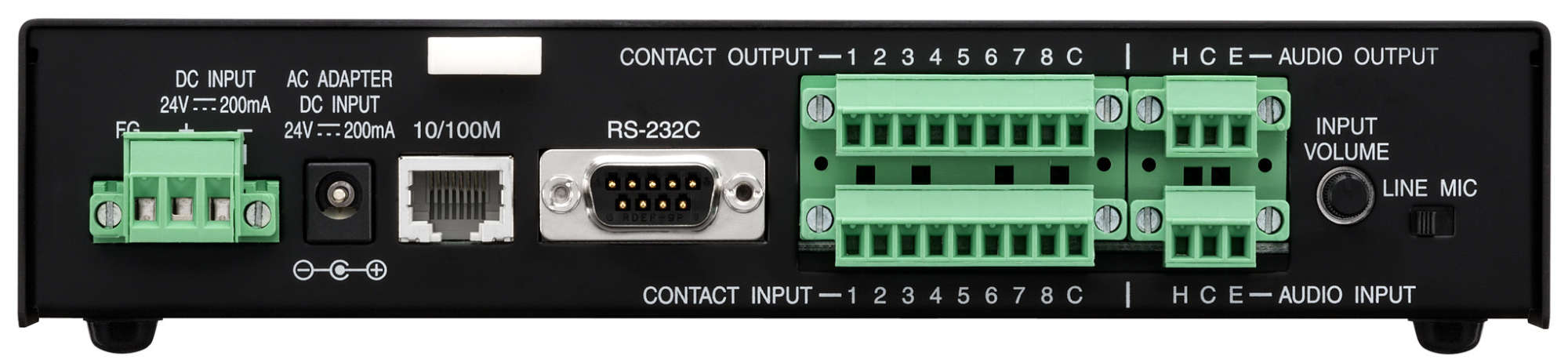

- Audio network adapter for transmitting audio and control signals via LAN
- Unicast: up to 4 locations, multicast: up to 64 locations
- Low cost operation
- Operation on both AC and DC
* 0 dB = 1 V
사용전원
24 V DC (removable terminal block (3 pins) or
AC adapter AD-246 (optional) or the equivalent
AC adapter AD-246 (optional) or the equivalent
소비전력
200 mA (DC operation)
오디오입력
1 channel (transformer-isolated), -58 dB* to 0 dB*,
balanced (MIC/LINE changeable, volume adjustable with volume control),
2 kΩ, removable terminal block (3 pins)
balanced (MIC/LINE changeable, volume adjustable with volume control),
2 kΩ, removable terminal block (3 pins)
오디오출력
1 channel (transformer-isolated), balanced, 600 Ω,
removable terminal block (3 pins)
removable terminal block (3 pins)
주파수응답
50 - 14,000 Hz (when sampling frequency is 32 kHz)
왜곡
Under 0.3% (1 kHz, when sampling frequency is 32 kHz)
제어 입력
8 channels, no-voltage make contact input, open voltage: 12 V DC,
short-circuit current: 10 mA, removable terminal block (9 pins)
short-circuit current: 10 mA, removable terminal block (9 pins)
제어 출력
8 channels, open collector output (polarized), withstand voltage: 30 V DC,
control current: 50 mA max., removable terminal block (9 pins)
control current: 50 mA max., removable terminal block (9 pins)
네트워크 I/F
10BASE-T/100BASE-TX, Auto-Negotiation
시리얼 I/F
RS-232C (DCE I/F), D-sub connector (9P, male), 9600bps - 115200bps
네트워크 프로토콜
TCP, UDP, ARP, ICMP, HTTP, RTP, IGMP
오디오패킷 전송시스템
Unicast (Up to 4 simultaneous transmissions),
Multicast (Up to 64 simultaneous transmissions)
Multicast (Up to 64 simultaneous transmissions)
동작 온도
0 °C to +50 °C (0 °C to +40 °C when AC adapter is in use)
동작 습도
Under 90% RH (no dew condensation should be produced)
마감
Steel plate, black, 30% gloss
치수
210 (W) x 44.7 (H) x 188 (D) mm
중량
1.2 kg
별매품
Rack mounting bracket: MB-15B-BK (for rack mounting one NX-100 unit),
MB-15B-J (for rack mounting two NX-100 units)
AC adapter: AD-246
MB-15B-J (for rack mounting two NX-100 units)
AC adapter: AD-246
Note: When you need the AC adapter, be sure to consult your TOA dealer.
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
Installation Accessories
본 기기는 LAN 또는 인터넷과 같은 IP 네트워크를 통해 고음질 오디오 시그널과 점점 입력/출력 데이터를 실시간 전송할 수 있어야 한다. 또한 RS-232C 데이터는 1:1 실시간 전송할 수 있어야 한다
