IP-A1MP
Microphone Panel
IP-A1MP

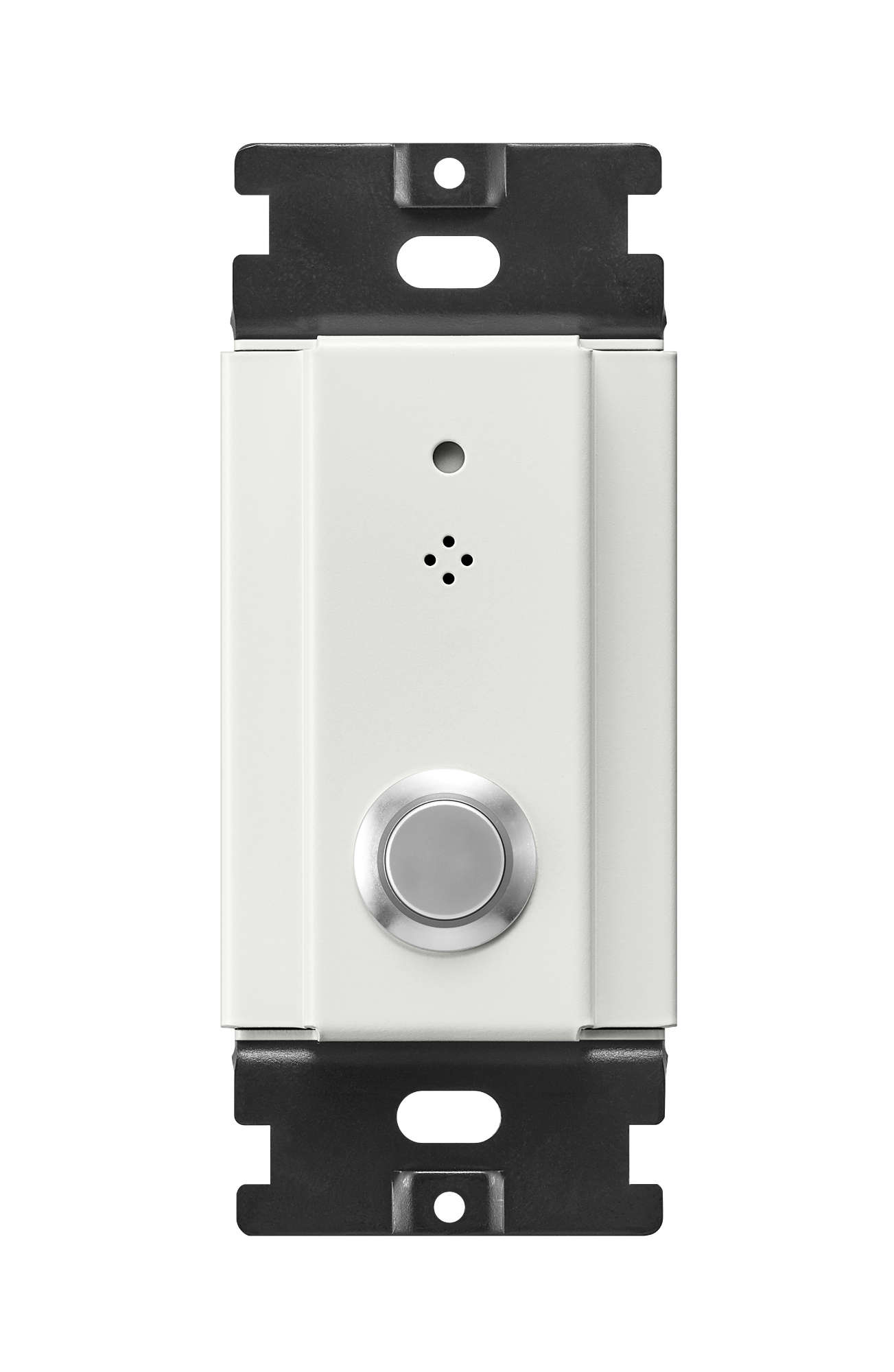

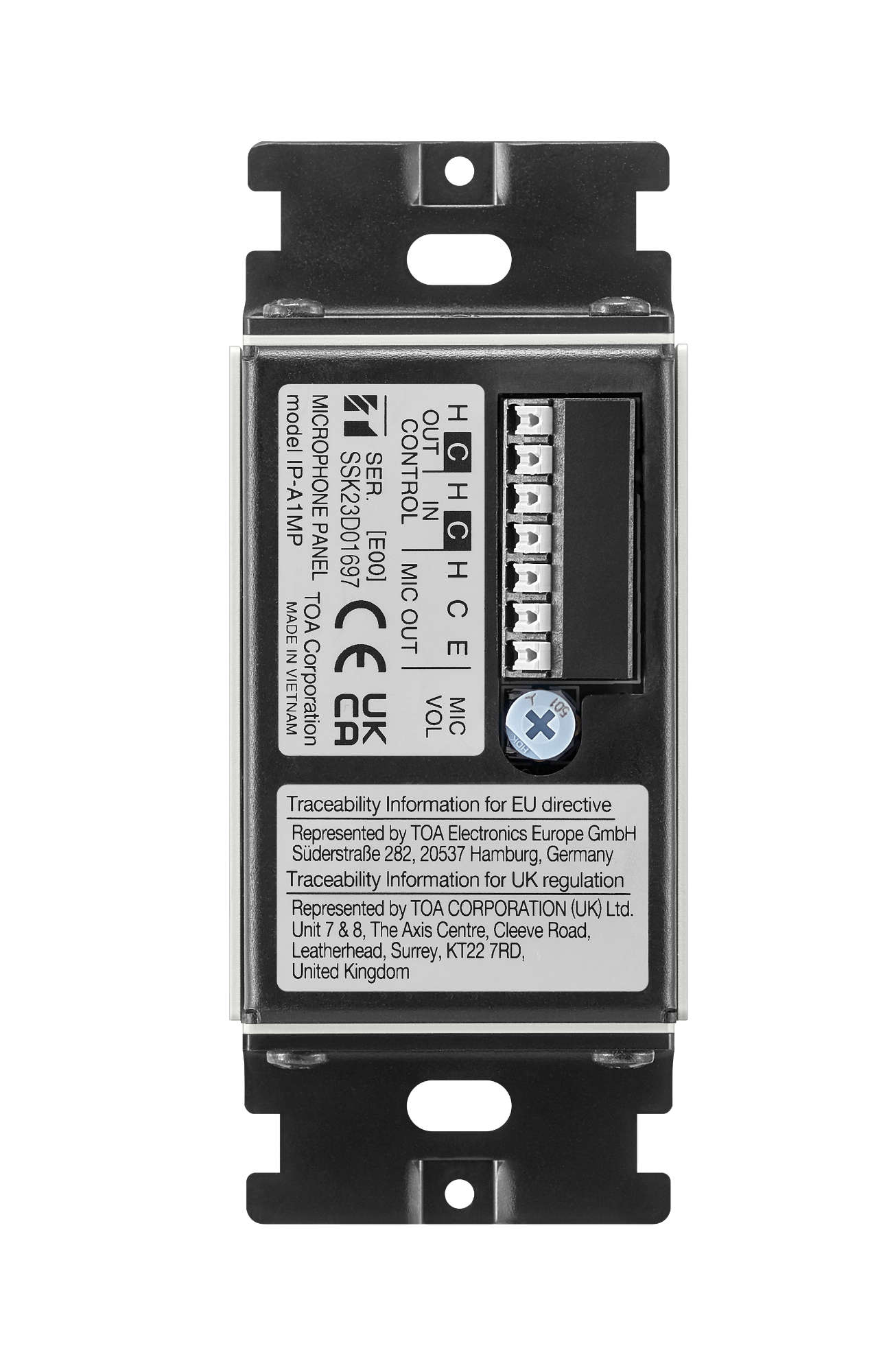

The IP-A1MP is a microphone panel that is equipped with a microphone, an activation switch and a status indicator. It can be installed with a standard electrical box as surface or flush mounting. This panel can be used as a two-way conversation or an audio monitoring microphone when used in conjunction with IP-A1 series devices.
- Audio accessory unit to be used in conjunction with IP-A1 series devices for having two-way
- conversations or audio monitoring
- Omni-directional electret condensor microphone
- Momentary type push switch to initiate a call
- Indicator lights during control input is being triggered
- 1 control input and 1 control output
- 1 electronically-balanced audio output (0dB, 200Ω)
- Surface or flush mounting with a standard electrical box
Phantom Power
9 V DC - 26 V DC
소비전력
8 mA or less (at 12 V DC)
Microphone
Omni-directional electret condenser microphone
주파수응답
100 Hz - 10 kHz
Microphone Output
0 dB (*1), 200 Ω, (Volume adjustable), electronically-balanced, push-in terminal block
제어 입력
No-Voltage make contact input, open Voltage: 5 V DC, short-circuit current: 0.2 mA or less, push-in terminal block
제어 출력
No-Voltage make contact output, withstand Voltage: 30 V DC, control current: 100 mA, push-in terminal block
Call Button
Momentary type (Control output circuit is closed while pressed)
표시
Green (Lit during control input) (*2)
Cable Requirements
Microphone output: Two-core shielded cable or Shielded twisted pair cable
Control input/output: Twisted pair cable
Control input/output: Twisted pair cable
동작 온도
-20 °C to +55 °C (-4 °F to 131 °F)
동작 습도
90 %RH or less (no condensation)
마감
Front case: Surface-treated steel plate, white (RAL 9016 equivalent), semi-gloss, paint
Rear case, bracket: Surface-treated steel plate, black zinc plating
Plate: ABS resin, white (RAL 9016 equivalent), gloss
Rear case, bracket: Surface-treated steel plate, black zinc plating
Plate: ABS resin, white (RAL 9016 equivalent), gloss
치수
44.6 (W) x 107 (H) x 29 (D) mm (1.76" x 4.21" x 1.14") (excluding projection)
중량
170 g (0.37 lb)
부속품
Plate x 1, Plate mounting screw (M3.5 x 5.5, preinstalled on the plate) x 2, Box mounting screw (M4 x 35) x 2
Compatible Box
Flush-Mount Box: YC-801
Wall-Mount Box: YC-802
Wall-Mount Box: YC-802
(*1) 0 dB = 1V
(*2) Lights only when phantom power is supplied.
(*2) Lights only when phantom power is supplied.
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
The microphone panel shall be equipped with an omni-directional electret condenser microphone, momentary type push switch and a status indicator. It shall be able to be installed with a standard electrical box as surface or flush mounting.
The microphone panel shall have an electronically-balanced 200Ω microphone output with an push-in terminal block. The microphone output volume level shall be adjustable.
The microphone panel shall have a no-voltage make contact input and an output with push-in teminal block for external controls. The control output circuit shall be automatically closed while the push switch is pressed.
The status indicator shall be lit when the control input is activated while phantom power is supplied.
The microphone panel shall be housed in white treated steel plate and an accessory ABS resin white plate shall also be supplied for electrical box installation.
The dimension shall be 44.6 (W) x 107 (H) x 29 (D) mm (1.76” x 4.21” x 1.14”) weighing 170 g (0.37 lbs).
Optional extras:
Flush mount box: YC-801
Wall-mount box: YC-802
manufactured by TOA Corporation
The microphone panel shall have an electronically-balanced 200Ω microphone output with an push-in terminal block. The microphone output volume level shall be adjustable.
The microphone panel shall have a no-voltage make contact input and an output with push-in teminal block for external controls. The control output circuit shall be automatically closed while the push switch is pressed.
The status indicator shall be lit when the control input is activated while phantom power is supplied.
The microphone panel shall be housed in white treated steel plate and an accessory ABS resin white plate shall also be supplied for electrical box installation.
The dimension shall be 44.6 (W) x 107 (H) x 29 (D) mm (1.76” x 4.21” x 1.14”) weighing 170 g (0.37 lbs).
Optional extras:
Flush mount box: YC-801
Wall-mount box: YC-802
manufactured by TOA Corporation
Manufacturer: TOA Corporation
Model: IP-A1MP
Model: IP-A1MP
