HY-BH10B
Board Hanger Bracket
HY-BH10B

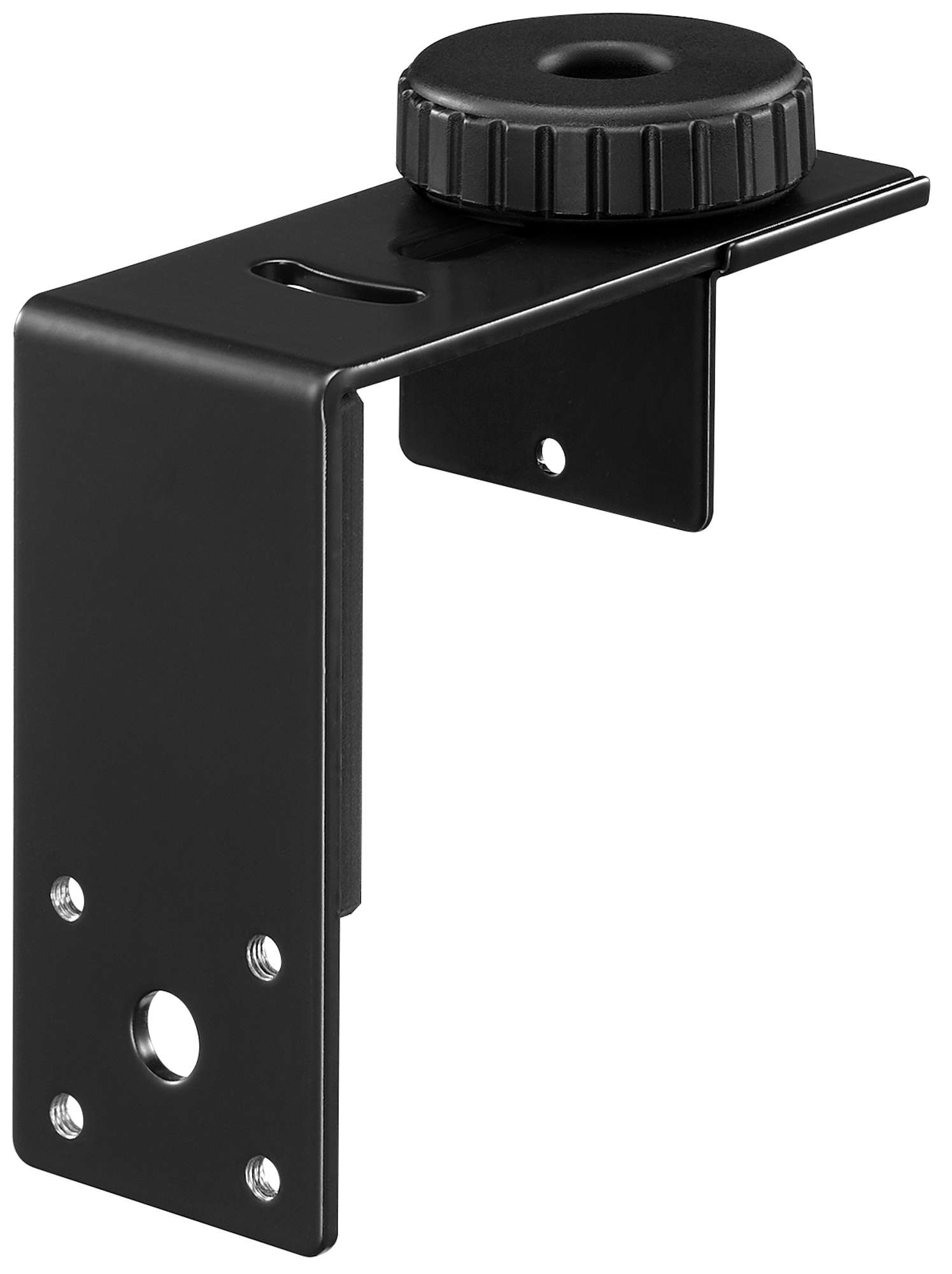

The HY-BH10B Board Hanger Bracket is used to mount F-1000 Series or F-1300 Series speakers to a temporarily installed partition board. The speaker can be installed in either a vertical or horizontal orientation.
마감
Steel plate, black, paint
치수
48 (W) x 100 (H) x 108 (D) mm (1.89 x 3.94" x 4.25") (excluding knob bolt)
중량
210 g (0.46 lb)
Product Composition
Hanger bracket …1, Sliding bracket …1, Knob bolt …1,
Plain washer for knob bolt …1, Speaker mounting bracket (with washer) …4
Plain washer for knob bolt …1, Speaker mounting bracket (with washer) …4
