DA-500FH
다채널 파워앰프
DA-500FH
The DA-500FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 500 W x 4 channels (20 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).
- 100 V speaker outputs
- 4 x 500 W rated output
- Independent power supply for each channel
- Light weight and compact
- Rack mountable with 2 units
- Stack up to 5 units without open spaces between units
- Forced-air cooling system
- Low heat dissipation
- Comprehensive protection circuitry
- Removable dust filters for easy maintenance

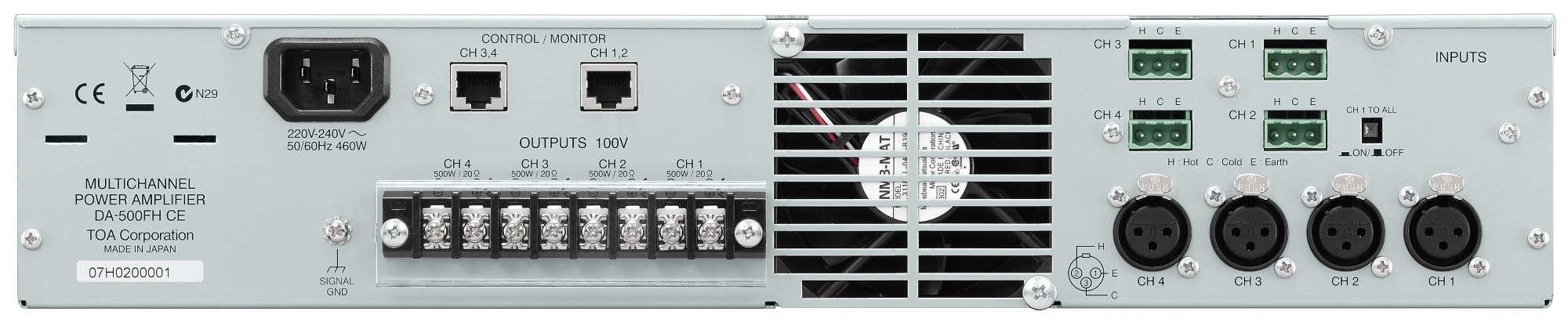

10 kΩ, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector
CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
M4 screw terminal, distance between barriers: 8.8 mm (0.35)
0.3 % (100 Hz - 20 kHz)
photocoupler input, drive voltage: 9 V DC (Min) - 14 V (Max), 12 V (Typ)
Monitor output: Power ON/OFF status of the individual channels,
Protection status of the individual channels, Fan operation status
photocoupler open collector output, withstand voltage: 30 V DC,
control current: 12 mA or less
Connector: RJ-45 connector x 2
Connection cable: Shielded Category 5 twisted pair cable for LAN (CAT5-STP)
Maximum cable distance: 600 m (656.17 yd)
unusual DC voltage output, temperature rise at power amp. heat sink (100℃ or more),
temperature rise at power supply heat sink (80℃ or more)
Protect (red) x 4
전체 스팩을 보려면 테이터시트를 다운로드 하세요.
본 기기는 100V 라인 하이 임피던스의 EIA 표준 설비 랙(2U 크기)에 장착 가능한 가볍고 콤팩트한 고출력, 고효율이 특징인 4-채널 디지털 파워앰프 이어야 한다.
스위칭 전원으로 500W × 4 채널(20Ω 출력)을 제공해야 하며, 각 채널에는 독립된 전원부가 장착되어 있어 MT-251H 출력 트랜스포머(선택사양)를 부착함으로서, 하이 임피던스 스피커 시스템에서 전자적 절연이 가능 하다.
제어/모니터 터미널을 이용하면, 채널별 전원 ON/OFF 를 제어할 수 있고 채널별 전원 ON/OFF 상태, 채널별 보호 상태 그리고 팬 작동 상태를 모니터링 할 수 있어야 한다.
성 능
- 사용전원 : 220-240 VAC, 60Hz
- 증폭시스템 : class D
- 소비전력 : 460 W (based on KIS standards), 2350 W (rated output 100 V line, 20Ω × 4)
- 입력 : 4 circuits, +4 dB, 10 kΩ , electronically-balanced, removable terminal block (3
pins), XLR-3-31
CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
- 정격출력 : 4 channels: 500 W Ω × 4 (100 V line, 20 Ω )
- 주파수응답 : 50 - 20,000 Hz (-3 dB, +1 dB)
- T.H.D : 0.1%(1KHz), 0.3%(100 - 20,000 Hz)
- 보호회로 : Protection against excessive current flow due to overload, short circuit, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (110 °C or more), temperature rise inside the unit (80 °C or more)
- S/N 비 : 100 dB (A-weighted)
- 크로스토크 : 70 dB (A-weighted)
- 제어/모니터 : Control input: Power ON/OFF status of the individual channels
Monitor output: Power ON/OFF status of the individual channels,
Protection status of the individual channels, Fan operation status
Connector: RJ45 connector x 2
Connection cable: CAT5-UTP
Maximum cable distance: 600 m
- LED 표시기 : Power (blue) × 1, Input (green) × 4, Output (yellow) × 4, Peak (red) × 4,
Protect (red) × 4
- 쿨링 : Forced air cooling
- 동작 온도 : -10 °C - +40 °C
- 동작 습도 : 90% RH or less
- 마감 : 패널 : Panel: Aluminum, black, alumite Case: Plated steel sheet
- 치수 : 482 (W) × 88.4 (H) × 404.2 (D) mm
- 중량 : 9kg
- 옵션 : Matching transformer : MT-251H
위 사양 및 동등 이상품이어야 한다.
