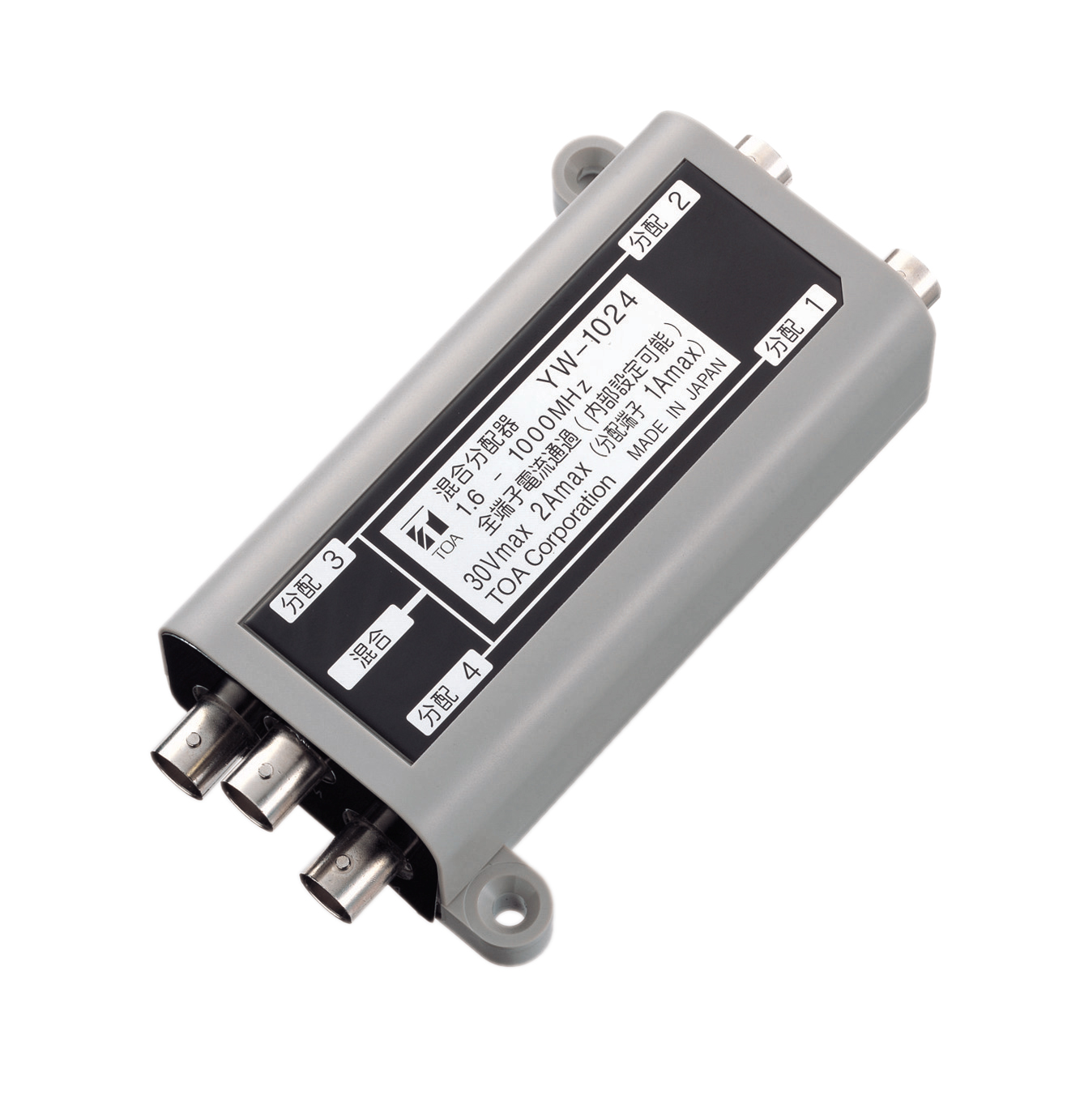

YW-1024 Distributor
YW-1024
The YW-1024 is a distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits easy power supply.
| Frequency Range | 1.6 - 1,000 MHz (excluding 50 - 70 MHz) |
|---|---|
| Distribution Loss | 8.5 dB ±3 dB (between the Mixing and each Distribution terminals) |
| Input/Output Impedance | 75 Ω |
| Coaxial Connector | Mixing terminal: BNC jack, power passing type (under 30 V DC, under 2 A) Distribution 1 - 4 terminals: BNC jack, power passing type (under 30 V DC, under 1 A) |
| Operating Temperature | -10℃ to +50℃ |
| Finish | ABS resin, gray |
| Dimensions | 75 (W) × 122 (H) × 34 (D) mm |
| Weight | 120 g |
