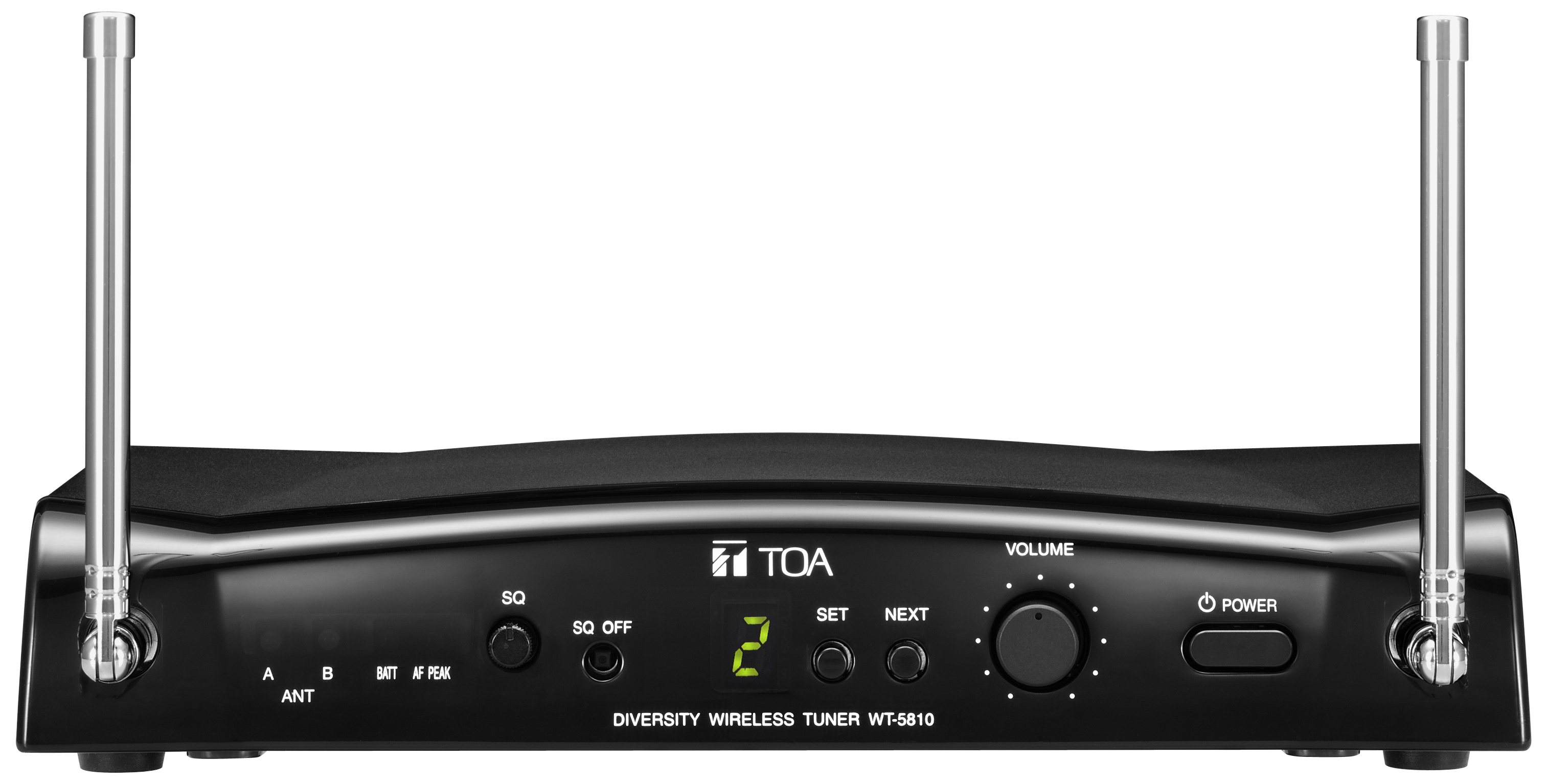

WT-5810 UHF Wireless Tuner

WT-5810

The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

사양
(*1) 0 dB = 1 V
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 V DC)
Receiving Frequency 636 - 865 MHz*, UHF
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Mixing Output MIC: -60 dB(*1), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB(*1), 600 Ω, unbalanced, phone jack
Mixing Input -20 dB(*1), 10 kΩ, unbalanced, phone jack
Antenna Rod antenna
Receiving Sensitivity 90 dB or more, S/N ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 18 - 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency 32.768 kHz
Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check Usable frequencies scanning
S/N Ratio 104 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1% or less (typical)
Frequency Response 100 - 15,000 Hz, ±3 dB
Operating Temperature -10℃ to +50℃
Finish Resin, black
Dimensions 206 (W) × 40.6 (H) × 152.7 (D) mm (excluding antenna)
Weight 590 g
Accessory AC adapter …1
Frequency Range
