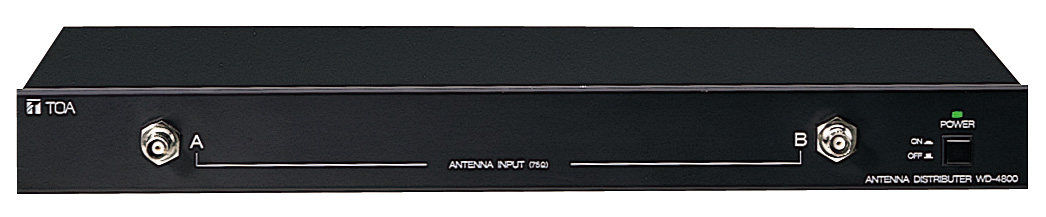

WD-4800 Power Antenna Distributor
WD-4800 ER
The TOA Wireless Antenna Distributor WD-4800 is designed to be used in conjunction with VHF/UHF band system. It comes with two channels, in which two input signals are mixed and distributed to four outputs. The WD-4800 also has four DC power distribution outputs.
| Power Requirement | 230 V (120 V/230 V selectable) |
|---|---|
| Power Consumption | 25 W |
| Frequency Range | VHF/UHF |
| Antenna Input | 2 input (front × 1, rear × 1), 75 Ω, BNC (phantom powering for antenna) |
| Antenna Output | 4 output, 75 Ω, BNC |
| DC Power Supply | 4 output (each output: 13 V DC/250 mA) |
| Indicator | Power |
| Operating Temperature | -10℃ to +50℃ |
| Finish | Steel, coating |
| Dimensions | 420 (W) × 44 (H) × 305.5 (D) mm |
| Weight | 3.5 kg |
| Accessory | DC cable ……4 |
| Option | Rack mounting bracket: MB-15B |
