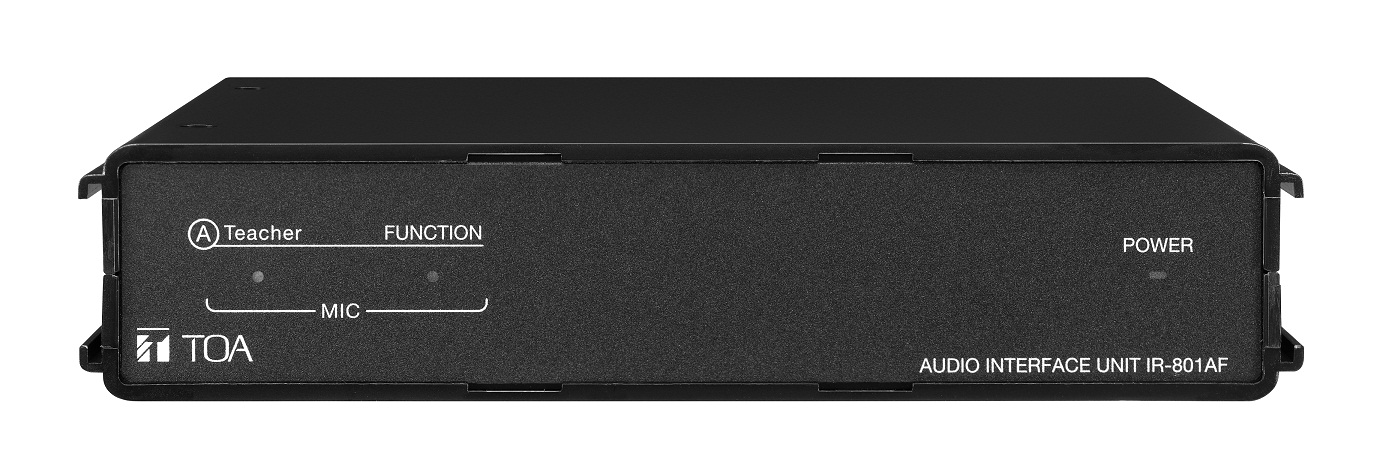

IR801AF Audio Interface Unit
IR-801AF
The IR-801AF is an Audio interface unit designed use in a school classroom with IR-310M Infrared Wireless Microphone connecting between IR-802T Infrared Wireless Tuner and IR-820SP Infrared Speaker by CAT-5 UTP cable. It has an analogue audio output and a contact output. Connecting with external equipment, like paging system, strobe light or message repeater permits to control them by the operation of IR-310M's function button.
- * 0 dB = 1 V
| Power Source | 24 V DC (Supplied from IR-802T) |
|---|---|
| Infrared Frequency Channel | Channel A: 3.100 MHz |
| Contact Output | Relay contact output removable terminal block (2 pins) |
| Audio Output | -20 dB* |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Control section: ABS resin |
| Dimensions | 210 (W) × 44 (H) × 181 (D) mm (8.27 × 1.73" × 7.13) |
| Weight | 560 g (1.23 lb) |
| Accessory | Removable terminal block (2 pins) …1 Removable terminal block (3 pins) …1 |
