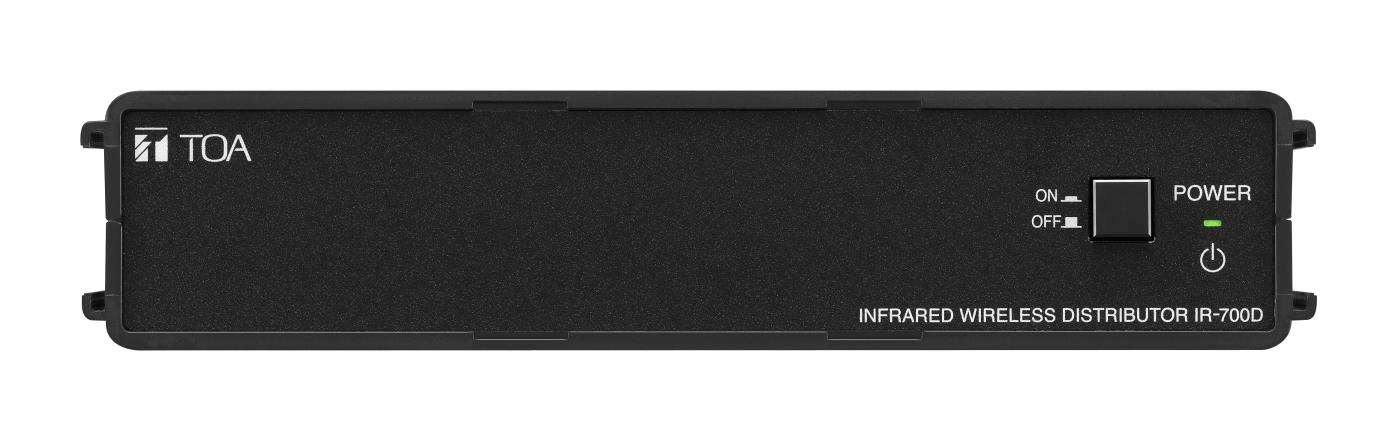

Infrared Wireless Distributor
IR-700D
The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system. It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.
| Power Source | AC mains, 50/60 Hz (supplied from the included AC adapter) |
|---|---|
| Power Consumption | 25 W or less |
| Input/Output | 4 mixing inputs, 2 distribution outputs |
| Band-Pass Frequency | 3.0 - 6.0 MHz |
| Gain | 0 dB (±3 dB) |
| Infrared Receiver Input | 75 Ω, BNC jack × 4 (Infrared wireless receiver's power source: 24 V DC, 800 mA max. in total of 4 terminals) |
| Distribution Output | 75 Ω, BNC jack |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 30 % to 85 %RH |
| Finish | Case: ABS resin, black |
| Dimensions | 210 (W) × 44 (H) × 200.9 (D) mm (8.27" × 1.73" × 7.91") |
| Weight | 640 g (1.41 lb) (unit only) |
| Accessory | AC adapter* …1, AC Power cord (2 m (6.56 ft)) …1, BNC plug-to-BNC plug cord (50 cm (1.64 ft)) …1, Rubber foot …4 |
| Option | Rack mounting bracket: MB-WT3 MB-WT4 (for mounting with the optional IR-702T together) |
