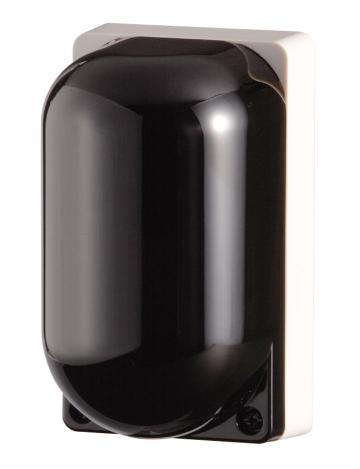

Infrared Wireless Receiver
IR-500R
The IR-500R Infrared Wireless Receiver is designed for use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or an electrical box.
| Power Source | 24 V DC (supplied from the IR-702T) |
|---|---|
| Current Consumption | Max. 40 mA |
Infrared Detector
| Wavelength | 870 nm |
|---|---|
| Carrier Frequency | Channel A: 3.100 MHz Channel B: 3.350 MHz |
| Reception Angle | Vertical: 80゜ (up to 30゜ movable downward) Horizontal: 80゜ (up to 30゜ movable left or right) |
| Reception Area | Approx. 15 m (50 ft) in a space without any obstacles |
| Connection Terminal | 75 Ω, BNC jack |
|---|---|
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 30 % to 85 %RH |
| Finish | Filter section: Polycarbonate, optical cut filter Base: ABS resin, off-white |
| Dimensions | 70 (W) × 120 (H) × 72 (D) mm (2.76" × 4.72" × 2.83") |
| Weight | 220 g (0.49 lb) (unit only) |
