EM-700 Boundary Microphone
EM-700

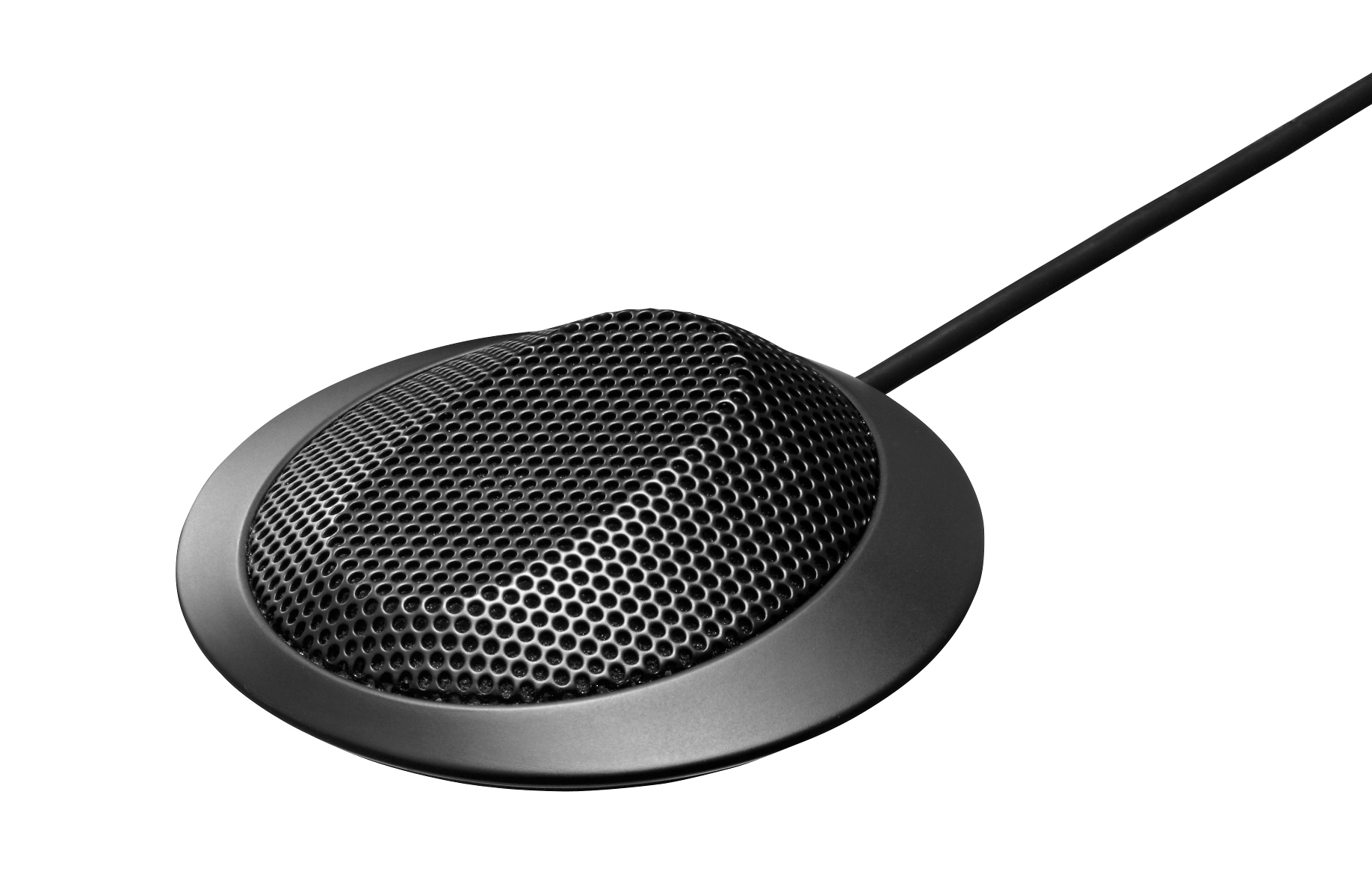

The EM-700 is a low-profile, high-quality, cardioid condenser microphone suitable for installation on a lecture desk or table top in a conference room. It features optimum acoustic characteristics for sound pick-up applications when placed on a flat surface, realizing pure, natural sound quality.
| Element | Electret condenser |
|---|---|
| Polar Pattern | Cardioid |
| Rated Impedance | 120 Ω, balanced |
| Rated Sensitivity | -33 dB (1 kHz 0 dB=1 V/Pa) |
| Phantom Power | 9 - 52 V DC |
| Frequency Response | 35 Hz - 20 kHz |
| Low Cut | 100 Hz, -12 dB/oct |
| Output Connector | XLR-3-12 equivalent |
| Cord Length | 7.5 m (24.61 ft) |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Finish | Body: Die-cast aluminum, black, mat finish, paint Punched net: Surface-treated steel plate, black, mat finish, paint |
| Dimensions | 83 (W) × 23 (H) × 83 (D) mm (3.27" × 0.91" × 3.27") (cord excluded) |
| Weight | 290 g (0.64 lb) |
|---|
- ※ The EM-700 requires 9 - 52 V DC phantom power for operation.
