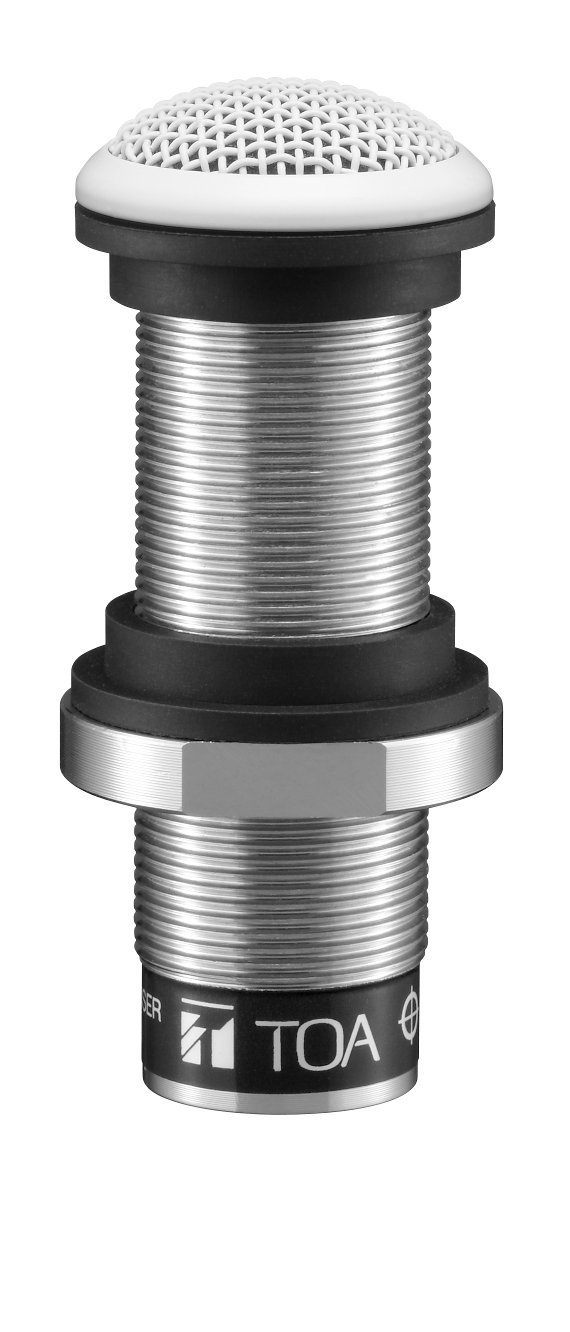

EM-600 Flush-Mount Boundary Microphone
EM-600
The EM-600 is an omnidirectional condenser microphone of only 28 mm (1.1") in diameter designed for sound pick-up application. It can be flush-mounted into a ceiling, wall, or desk, making it unobtrusive. It provides clear and high-quality sound.
| Element | Electret condenser |
|---|---|
| Polar Pattern | Omnidirectional |
| Rated Impedance | 120 Ω, balanced |
| Rated Sensitivity | -36 dB (1 kHz 0 dB=1 V/Pa) |
| Phantom Power | 9 - 52 V DC |
| Frequency Response | 30 Hz - 20 kHz |
| Output Connector | XLR-3-12 equivalent |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Finish | Body: Steel, white, semi-gloss, paint Head: Zinc-plated steel wire, white, semi-gloss, paint |
| Dimensions | φ28 × 68 mm (φ1.1" × 2.68") |
| Weight | 85 g (0.19 lb) |
| Accessory | Rubber Isolation Ring …2, M20 Nut …1 |
- ※ The EM-600 requires 9 - 52 V DC phantom power for operation.
