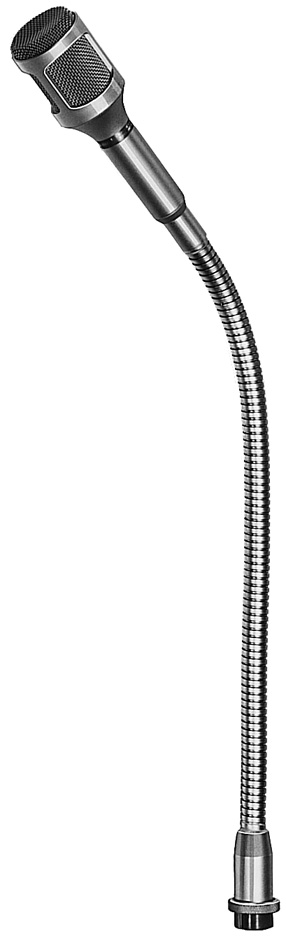

DM-524B Dynamic Microphone
DM-524B
A unidirectional microphone with a gooseneck shaft. Use this microphone in conjunction with the ST-73A desk-top stand (option).
| Type | Moving coil microphone |
|---|---|
| Polar Pattern | Cardioid pattern |
| Rated Impedance | 600 Ω, balanced |
| Rated Sensitivity | -56 dB (1 kHz, 0 dB=1 V/Pa) |
| Frequency Range | 100 - 10,000Hz |
| Output Connector | φ21, 3-pin plug (BTS21P3B) |
| Finish | Microphone body: Gold, sparkling paint Gooseneck shaft: Nickel-pear skin-plating |
| Weight | 465g |
| Usable Stand | ST-73A (option) or φ21 mm 3-pin socket |
| Accessories | φ21 3-pin receptacle (BTS21R3A)……1, M3×10 screw……3, W3 washer……3, SW3 spling washer……3, M3 nut……3 |
