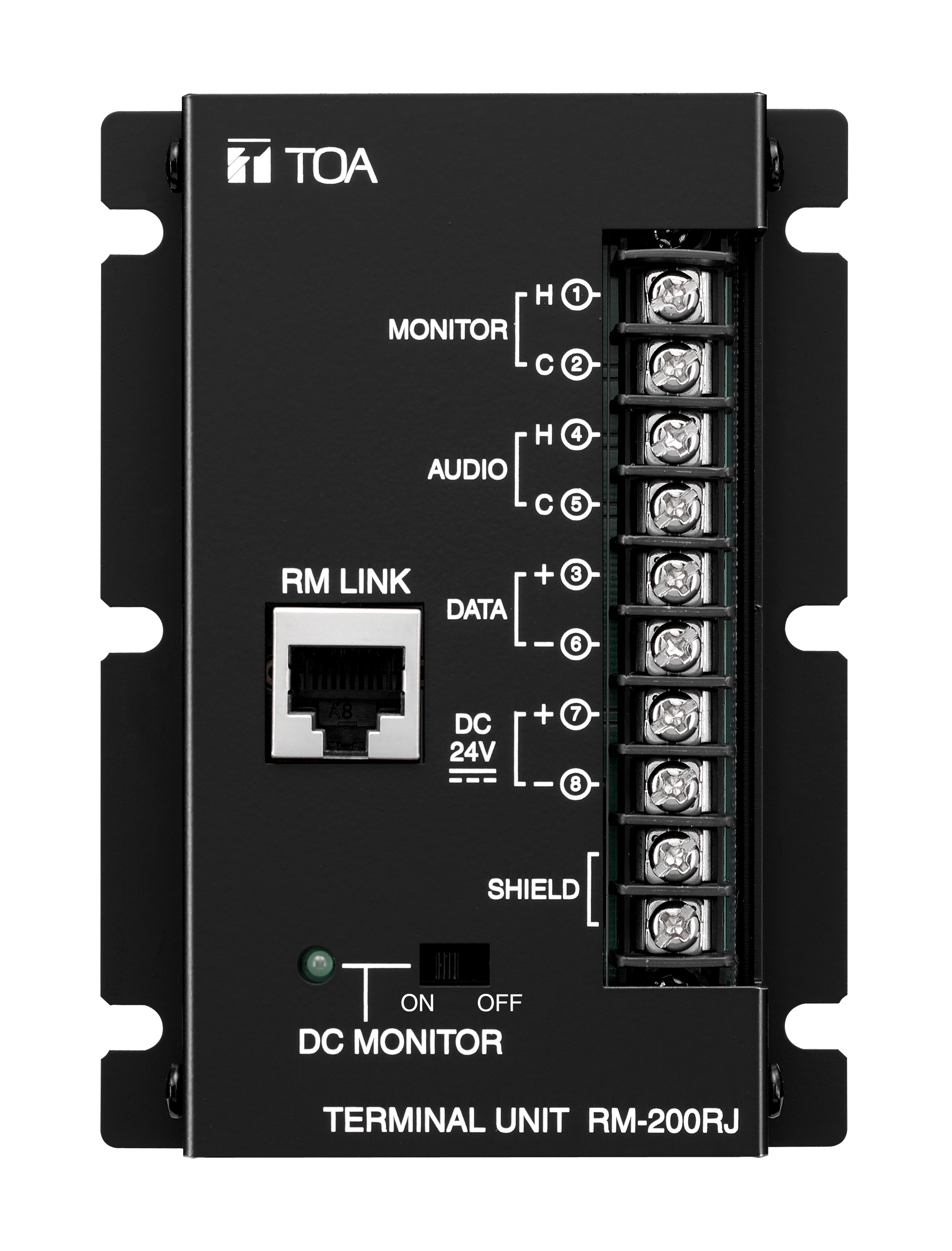

RM-200RJ Terminal Unit
RM-200RJ
The RM-200RJ is designed to convert the RJ45 connector into a screw terminal block. It is used to connect between a trunk cable (such as CPEV cable) and a feeder cable (such as LAN cable) in wiring a remote microphone. The built-in indicator shows the voltage status of DC power cable when the remote microphone cable for the SX-2000 series system is connected.
| Applied Voltage | 40 V or less |
|---|---|
| Withstand Voltage | 1 A |
| Voltage Indicator | Monitor terminals: Terminal No. 7 (+) and terminal No. 8 (-), extinguish voltage: 14 V or less, lighting voltage: 21 V or more, indicator ON/OFF switchable |
| Connector | RJ45 Connector: 1 |
| Terminal | M3 screw terminal (10 pins), distance between barriers: 6.62 mm (0.26") |
| Operating Temperature | 0℃ to +40℃ (32゜F to 104゜F) |
| Operating Humidity | 35% to 80% RH (no condensation) |
| Finish | Surface-treated steel plate, black, paint |
| Dimensions | 84 (W) × 116 (H) × 25.7 (D) mm (3.31" × 4.57" × 1.01") |
| Weight | 250 g (0.55 lb) |
