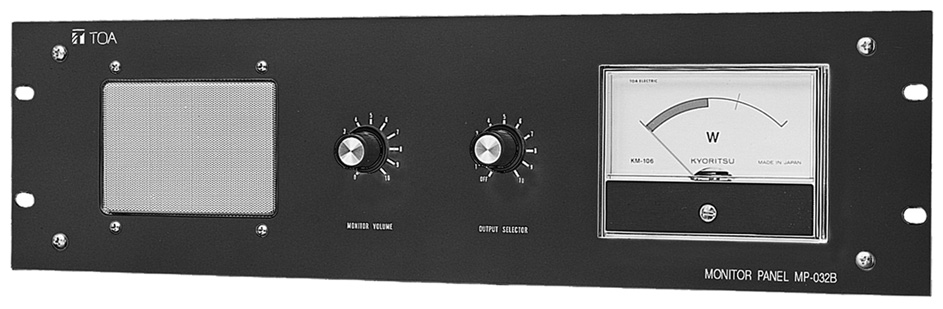

MP-032B Monitor Panel
MP-032B
The MP-032B is a monitor panel that is designed to provide aural and visual monitoring for multi-channel sound and program system.
| Functions | Aural/visual monitoring (up to 10 power amplifiers) |
|---|---|
| Controls | Channel selector switch Monitor volume control Watt meter Line voltage selector switch |
| Speaker | Full-range 12 cm speaker |
| Input Lines | 25 V (625 Ω), 50 V (2.5 kΩ), 70 V (5 kΩ), 100 V (10 kΩ) switchable |
| Terminals | M4 screw terminals, distance between barriers: 8.8 mm |
| Finish | Surface-treated steel plate, black |
| Dimensions | 483 (W) × 133 (H) × 87 (D) mm |
| Weight | 2.2 kg |
| Accessory | Rack mounting screw (with washer) ……… 4 |
