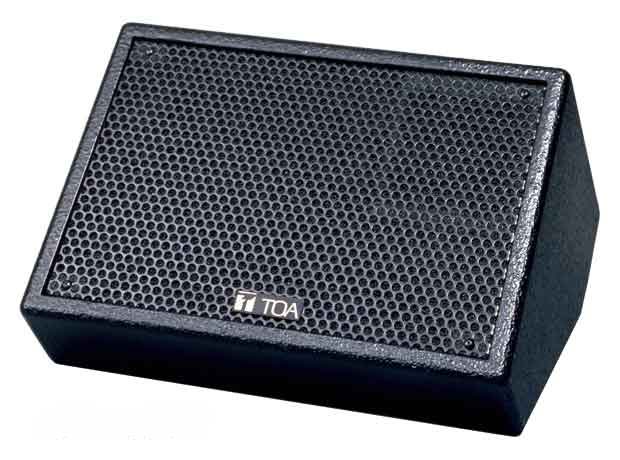

SR-M05L Monitor Speaker System
SR-M05L
The SR-M05L is a floor monitor speaker system featuring high power handling capacity, high quality sound, and heavy-duty construction. This speaker system is used with the DP-0206 Digital processor.
Enclosure | Bass-reflex type |
---|---|
Power Handling Capacity | 450 W (continuous program) 150 W (continuous pink noise) |
Nominal Impedance | 8 Ω |
Sensitivity | 99 dB (1 W, 1 m) |
Frequency Response | 60 Hz - 18 kHz |
Crossover Frequency | 2 kHz (passive) |
Speaker Component | Low frequency: 25 cm dia. cone-type High frequency: CD horn (40゜ horizontal × 40゜ vertical) fitted with compression driver |
Input Connector | Neutrik NL4MP × 2 |
Finish | Enclosure: MDF, black, epoxy paint Front grille: Black, acrylic paint |
Dimensions | 445 (W) × 275 (H) × 405 (D) mm |
Weight | 18.5 kg |
