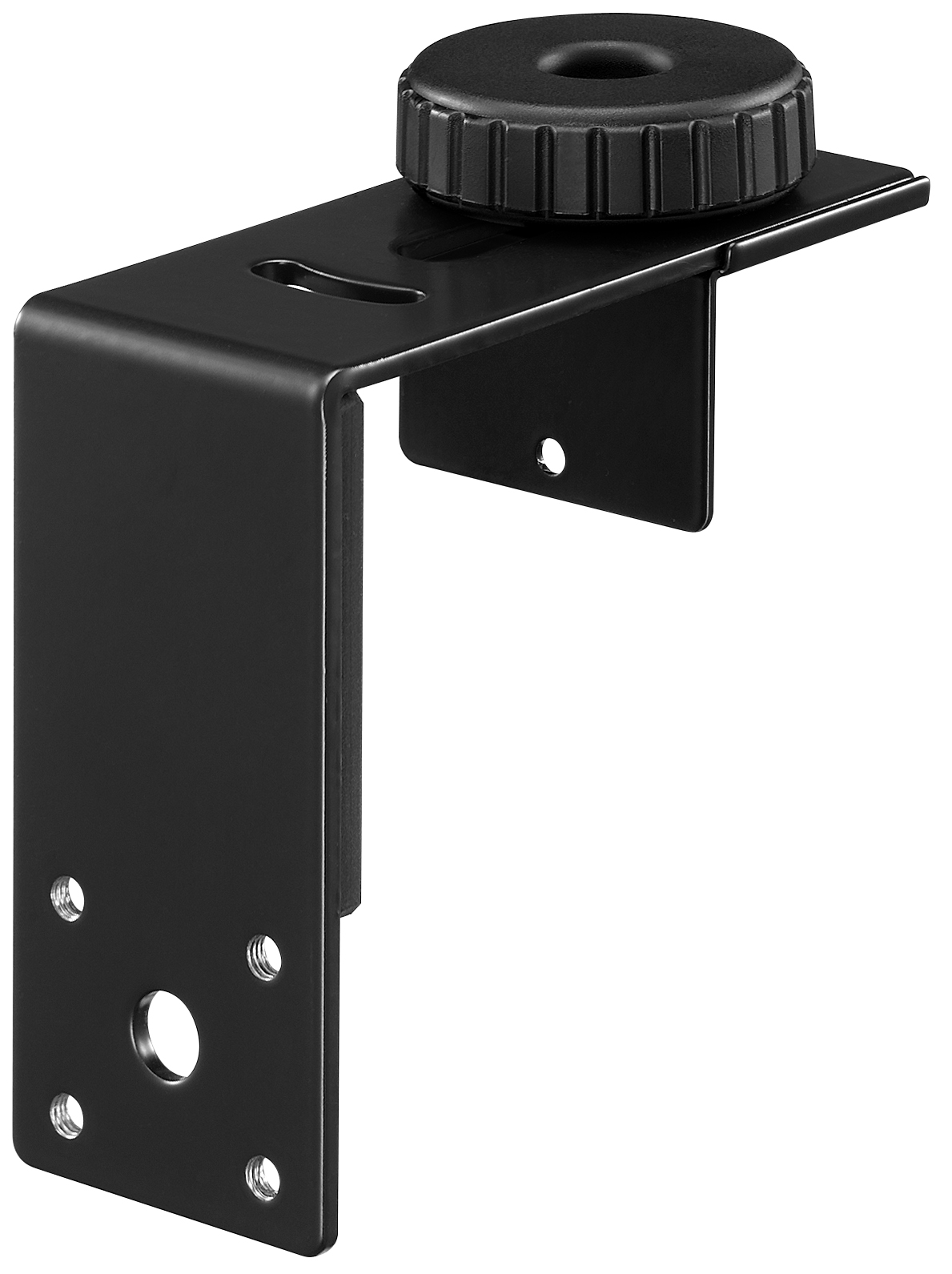

HY-BH10B Board Hanger Bracket
HY-BH10B
The HY-BH10B Board Hanger Bracket is used to mount F-1000 Series or F-1300 Series speakers to a temporarily installed partition board. The speaker can be installed in either a vertical or horizontal orientation.
| Finish | Steel plate, black, paint |
|---|---|
| Dimensions | 48 (W) × 100 (H) × 108 (D) mm (1.89" × 3.94" × 4.25") (excluding knob bolt) |
| Weight | 210 g (0.46 lb) |
| Product Composition | Hanger bracket …1, Sliding bracket …1, Knob bolt …1, Plain washer for knob bolt …1, Speaker mounting bracket (with washer) …4 |
