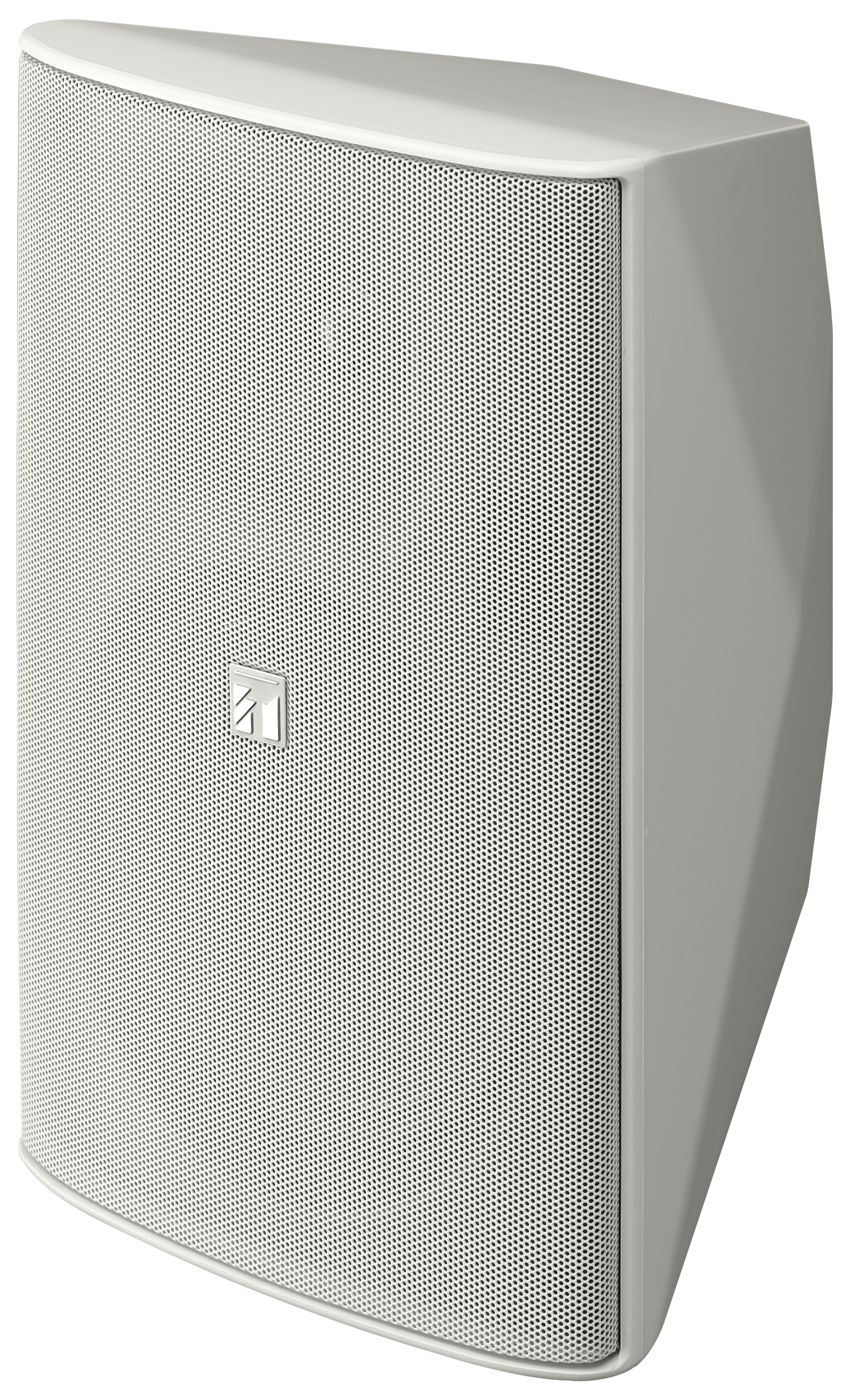

F-2000WTWP Wide-dispersion Speaker System
F-2000WTWP
The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-2000WTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.
| Enclosure | Bass-reflex type |
|---|---|
| Rated Input | 60 W |
| Rated Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 92 dB (1 W, 1 m) at installation in 1/2 free sound field 93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter) |
| Frequency Response | 65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2.5 kHz |
| Directivity Angle | Horizontal: 110゜, Vertical: 100゜ Horizontal: 80゜, Vertical: 80゜ (with horn adapter) |
| Speaker Component | Low frequency: 20 cm (8") cone-type High frequency: 25 mm (1") dome tweeter |
| Input Terminal | Push-in terminal |
| Water Protection | IPX4 |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Finish | Enclosure: HIPS, white Punched net: Surface-treated steel plate, white, anticorrosive paint Joint bracket, wall bracket: Stainless steel Speaker bracket: Die-cast aluminum, white, paint |
| Dimensions | 244 (W) × 373 (H) × 235 (D) mm (9.61" × 14.69" × 9.25") |
| Weight | 7.4 kg (16.31 lb) (including the supplied brackets) |
| Accessory | Speaker bracket …1, Joint bracket …1, Wall bracket …1, Bracket fixing screw … 1 set, Horn adapter …1, Horn adapter mounting screw …4, Terminal cover …1, Terminal cover mounting screw …4 |
| Option | Speaker mount bracket: SP-131, YS-60B |
