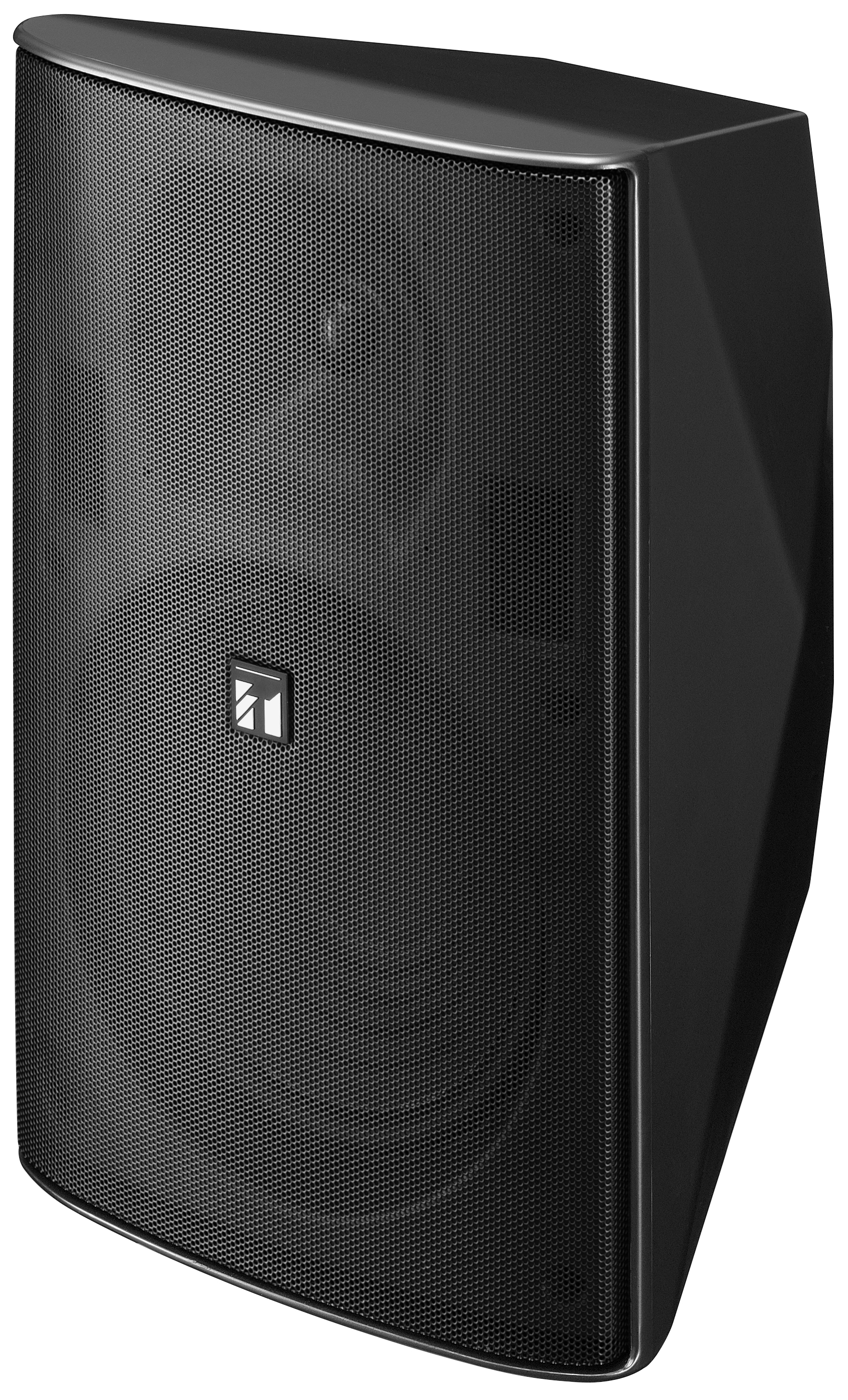

F-2000B Wide-dispersion Speaker System
F-2000B
The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 60 W Continuous program: 180 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 92 dB (1 W, 1 m) at installation in 1/2 free sound field 93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter) |
| Frequency Response | 65 - 20,000 Hz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2.5 kHz |
| Directivity Angle | Horizontal: 110゜, Vertical: 100゜ Horizontal: 80゜, Vertical: 80゜ (with horn adapter) |
| Speaker Component | Low frequency: 20 cm (8") cone-type High frequency: 25 mm (1") dome tweeter |
| Input Terminal | Push-in terminal |
| Finish | Enclosure: HIPS, black Punched net: Surface-treated steel plate, black, paint Joint bracket, wall bracket: Steel plate, t2.0, black, paint Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions | 244 (W) × 373 (H) × 235 (D) mm (9.61" × 14.69" × 9.25") |
| Weight | 6.5 kg (14.33 lb) (including the supplied brackets) |
| Accessory | Speaker bracket …1, Joint bracket …1, Wall bracket …1, Bracket fixing screw … 1 set, Horn adapter …1, Horn adapter mounting screw …4 |
| Option | Ceiling mount bracket: HY-CM20B (used for the horizontal speaker mounting) Cluster bracket: HY-CL20B Speaker stand: ST-16A |
- Note: Bolts and nuts for mounting the bracket to the wall or ceiling are not included. Prepare them separately.
