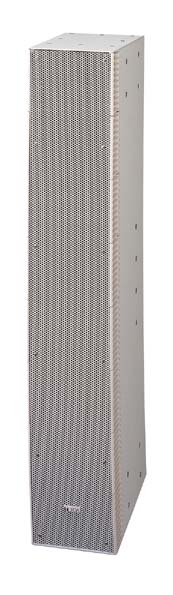

SR-S4S 2-Way Line Array Speaker System
SR-S4S
The SR-S4S is a two-way line array speaker ideal for short distance sound transmission andconfigures a line array by arranging speaker elements vertically close to each other.It can be converted into the bi-amplifier drive system by changing the internal connection.It can be used for high-impedance applications with the installation of the optional MT-S0601Matching transformer.
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program: 600 W (single-amp mode) Low 240 W, High 240 W (bi-amp mode) |
| Rated Impedance | 8 Ω (single-amp mode) Low 8 Ω, High 8 Ω (bi-amp mode) |
| Sensitivity | 93 dB (1 W, 1 m) |
| Frequency Response | 70 - 20,000 Hz (when using DP-0206* (option)) |
| Crossover Frequency | 3,500 Hz |
| Directivity Angle | Horizontal: 90゜, Vertical: 10゜ |
| Speaker Component | Low frequency: 10 cm cone-type × 8 High frequency: 2.5 cm balanced dome-type × 24 |
| Input Connector | M5 screw terminal, distance between barriers: 12.2 mm and Neutrik NL4MP × 2 |
| Finish | Enclosure: MDF, white, paint Front grille: Punched steel plate, white, acrylic paint |
| Dimensions | 160 (W) × 892 (H) × 303 (D) mm |
| Weight | 16 kg |
| Accessory | Bi-amplifier drive rating label …1, Bi-amplifier drive input indication label …1 |
| Option | Matching transformer: MT-S0601, Extension plate: SR-EP4, Flying bracket: SR-FB4, Wall tilt bracket: SR-TB4, Stand adapter: SR-SA4, Protection pad: SR-PP4, Digital processor: DP-0206* Digital Mixer: D-901 Digital Mixing Processor Unit: D-2008SP |
- *DP-0206 is not available in some conuntries.
