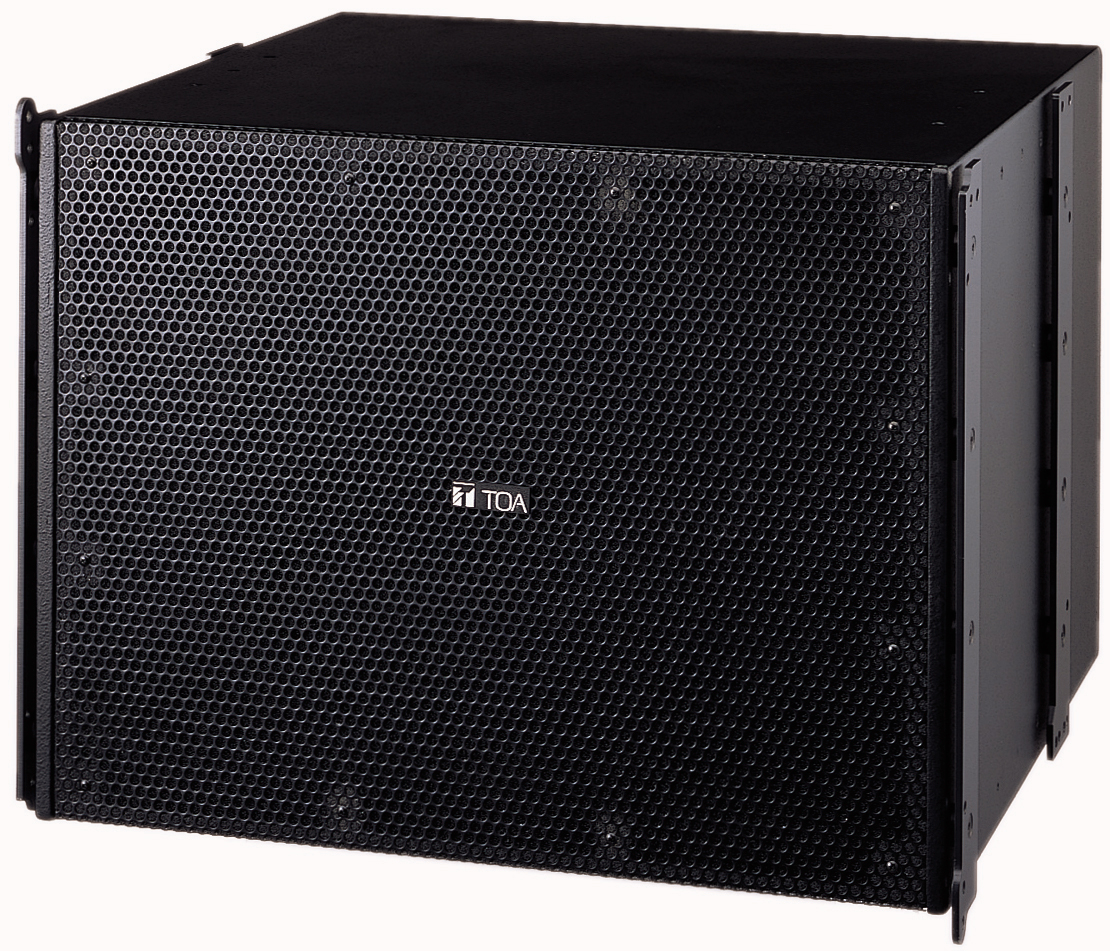

SR-A18B Sub-Woofer System
SR-A18B
The SR-A18B is a sub-woofer system designed to be used in conjunction with the SR-A12L or SR-A12SLine array speaker.The SR-A18B employs the multi-amplifier drive system. Recommended digital speaker processor is the DP-SP3 (option).
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program: 720 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 95 dB (1 W, 1 m) |
| Frequency Response | 40 - 400 Hz (when using DP-0206* (option)) |
| Crossover Frequency | 80 Hz (when using DP-0206* (option)) |
| Speaker Component | 46 cm cone-type |
| Input Connector | M5 screw terminal, distance between barriers: 12.2 mm and Neutrik NL4MP × 2 |
| Finish | Enclosure: Plywood, black, paint Front grille: Punched steel plate, black, acrylic paint |
| Dimensions | 740 (W) × 573 (H) × 698 (D) mm |
| Weight | 66 kg (including accessories) |
| Accessory | Joint plate …2, Joint plate mounting bolt (M10) …16 |
| Option | Rigging frame: SR-RF12 Digital processor: DP-0206* Digital Mixer: D-901 Digital Mixing Processor Unit: D-2008SP |
- *DP-0206 is not available in some conuntries.
