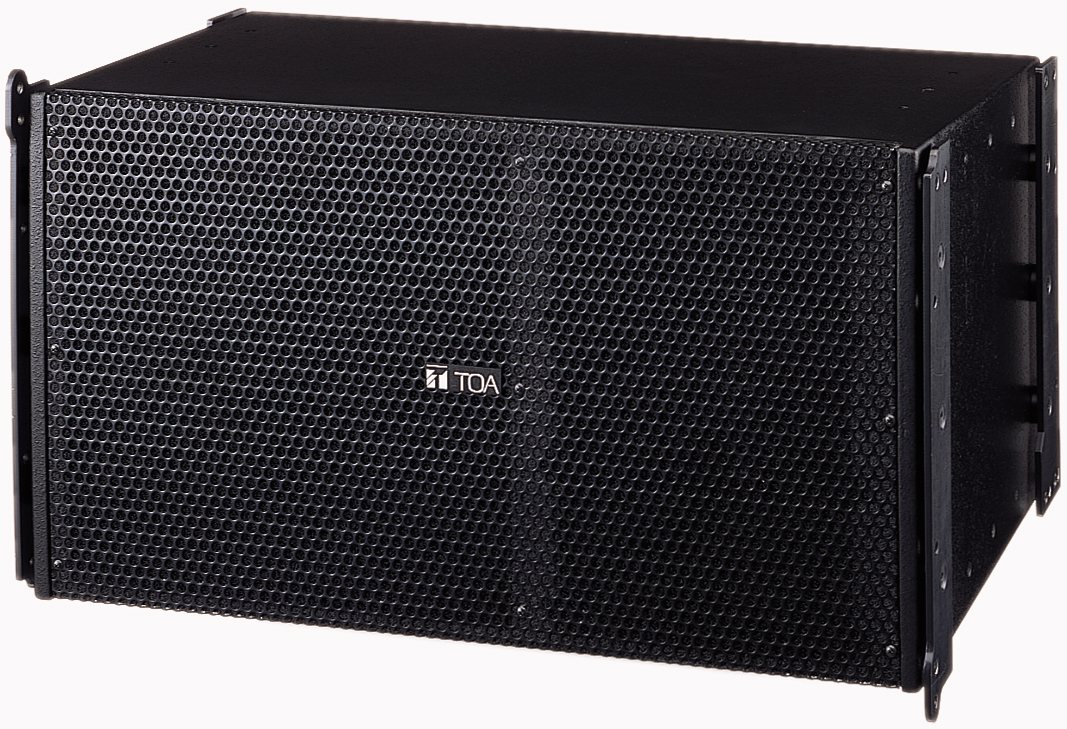

SR-A12L 2-Way Line Array Speaker System
SR-A12L
Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressureand high sound clarity, the SR-A12L is a two-way line array speaker ideal for long distance soundtransmission. The SR-A12L employs the multi-amplifier drive system. Recommended digital speaker processor is the DP-SP3 (option).
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program Low frequency: 450 W, High frequency: 180 W |
| Rated Impedance | Low frequency: 8 Ω, High frequency: 16 Ω |
| Sensitivity | Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1m) |
| Frequency Response | 50 - 20,000 Hz (when using DP-0206* (option)) |
| Crossover Frequency | 1,000 Hz (when using DP-0206* (option)) |
| Directivity Angle | Horizontal: 90゜, Vertical: 5゜ |
| Speaker Component | Low frequency: 30 cm cone-type High frequency: Wave front control horn 90゜ (horizontal) × 5゜ (vertical) + compression driver × 2 |
| Input Connector | M5 screw terminal, distance between barriers: 12.2 mm and Neutrik NL4MP × 2 |
| Finish | Enclosure: Plywood, black, paint Front grille: Punched steel plate, black, acrylic paint |
| Dimensions | 740 (W) × 433 (H) × 469 (D) mm |
| Weight | 49 kg (including accessories) |
| Accessory | Joint plate …2, Joint plate mounting bolt (M10) …16 |
| Option | Rigging frame: SR-RF12 Digital processor: DP-0206* Digital Mixer: D-901 Digital Mixing Processor Unit: D-2008SP |
- *DP-0206 is not available in some conuntries.
