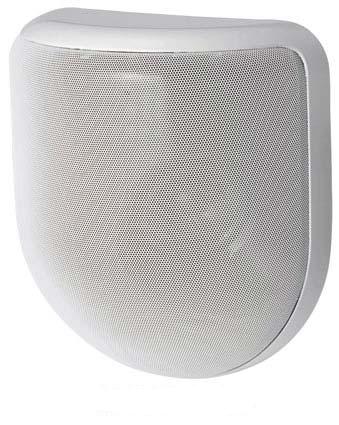

H-3WP 2-Way Wall Mount Speaker System
H-3WP
The H-3WP is a wall-mountable, outdoor 2-way speaker that provides horizontally-wide dispersion.
| Enclosure | Sealed type |
|---|---|
| Power Handling Capacity | 150 W (Continuous program/8 Ω) 50 W (Continuous pink noise/8 Ω) |
| Rated Input | 30 W (16 Ω, high impedance) |
| Rated Impedance | 8 Ω, 16 Ω 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.75 W) |
| Sensitivity | 89 dB (1 W, 1 m) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.) |
| Frequency Response | 100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.) |
| Crossover Frequency | 4 kHz |
| Water Protection | IPX4 |
| Speaker Component | Low frequency: 10 cm cone-type × 2 High frequency: 2.5 cm dome-type (neodymium magnet) |
| Input Terminal | Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
| Usable Cable | Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No.24 - 14) |
| Finish | Enclosure: Fire-resistant ABS resin, black Front frame: Fire-resistant ABS resin, off-white, paint Punched net: Steel plate (zinc plating), off-white, powder coating Base frame: Stainless steel |
| Dimensions | 295 (W) × 318 (H) × 129 (D) mm |
| Weight | 3.3 kg |
| Accessory | Front grille ……1, Base frame ……1, Electrical box mounting screw ……1 set |
| Usable Electrical Box | 2-gang type |
| Note: Avoid using the unit near the shore or at an indoor swimming pool | as doing so may significantly reduce the product life. |
