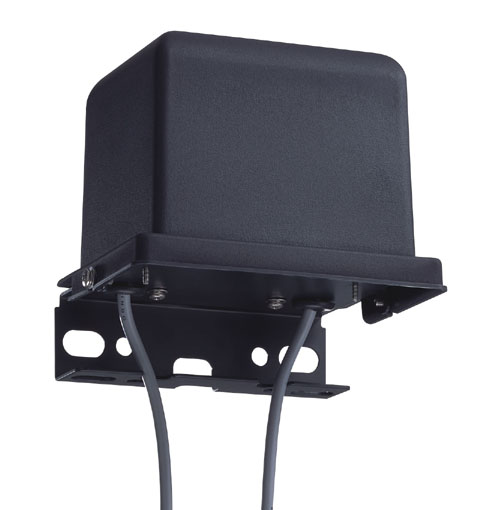

MT-200 Matching Transformer
MT-200
The MT-200 is a matching transformer for the HX-5 series speaker systems, and can be used both indoors and outdoors.
| Rated Input | 200 W |
|---|---|
| Primary Impedance | 100 V line: 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W) 70 V line: 25 Ω (200 W), 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W) |
| Secondary Impedance | 8 Ω |
| Water Protection | IPX4 (the tilt angle must be within 45゜) * |
| Finish | Cover: Polypropylene Mounting bracket: Stainless steel (SUS304) |
| Dimensions | 164 (W) × 141 (H) × 129 (D) mm |
| Weight | 2.8 kg |
| Accessory | Speaker mounting bolt (M8) with washer …2 |
- Note: When the matching transformer is installed on the HX-5
