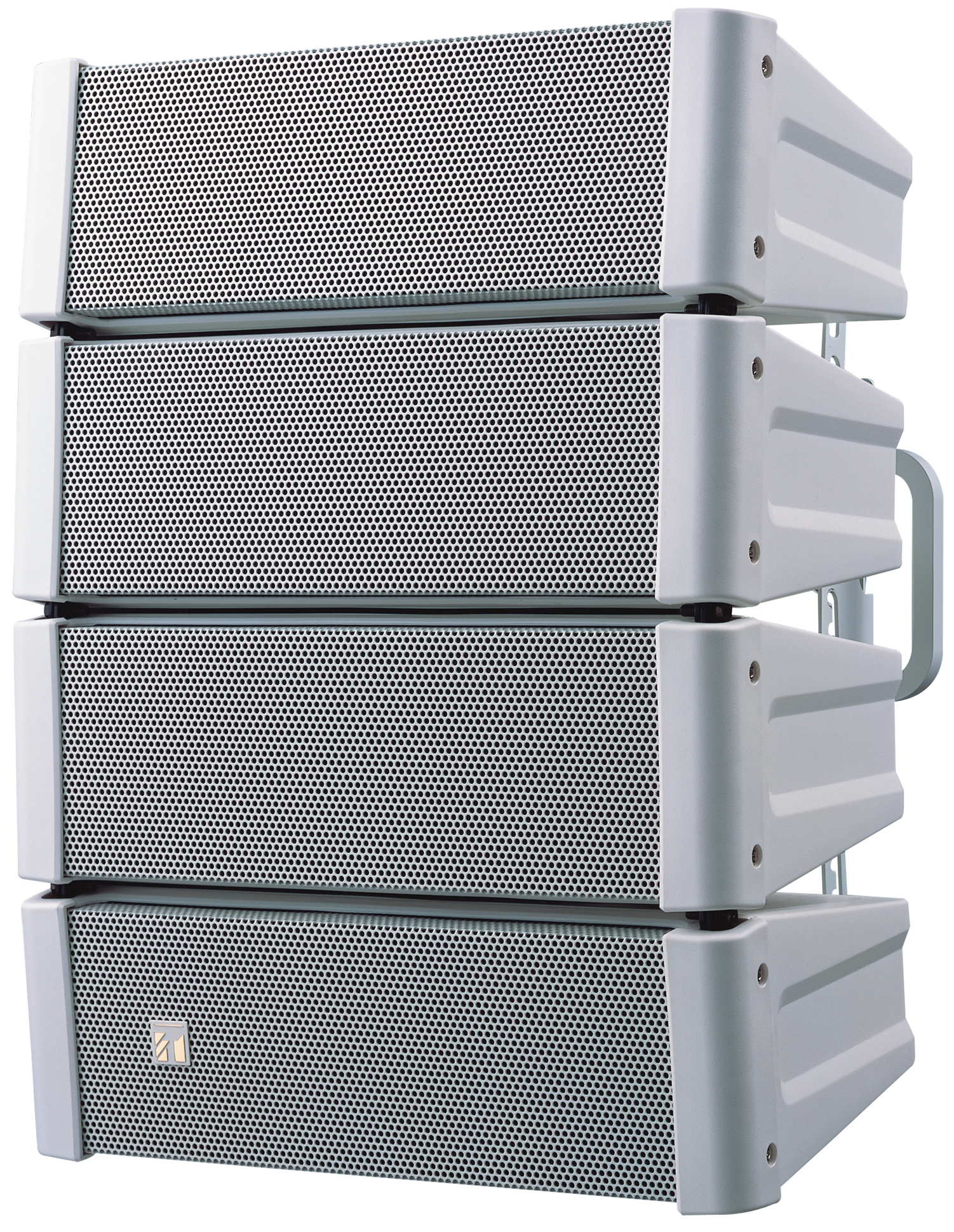

HX-5W Compact Line Array Speaker System
HX-5W
The HX-5W is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5W is designed for indoor use.
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 200 W, Continuous program: 600 W |
| Rated Impedance | 8 Ω |
| Sensitivity (1 W, 1 m) | 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode) |
| Frequency Response | 70 Hz - 20 kHz (-10 dB) (60%%d mode), 75 Hz - 20 kHz (-10 dB) (45%%d mod]e), 80 Hz - 20 kHz (-10 dB) (30%%d mode), 85 Hz - 20 kHz (-10 dB) (15%%d mode) |
| Crossover Frequency | 4 kHz |
| Directivity Angle | Horizontal: 100゜ (2 kHz or more) Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more), 15゜ (3.2 kHz or more) variable |
| Speaker Component | Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12 |
| Input Terminal | Speakon NL4MP × 2 and M4 screw terminal |
| Finish | Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white |
| Dimensions | 408 (W) × 546 (H) × 342 (D) mm |
| Weight | 16 kg |
| Accessory | Hanging bracket …2, Hex. wrench …1 |
| Option | Matching transformer: MT-200 Speaker mounting bracket: HY-PF1W, HY-CW1W, HY-WM1W, HY-WM2W, HY-CN1W Speaker stand adapter: HY-ST1 |
