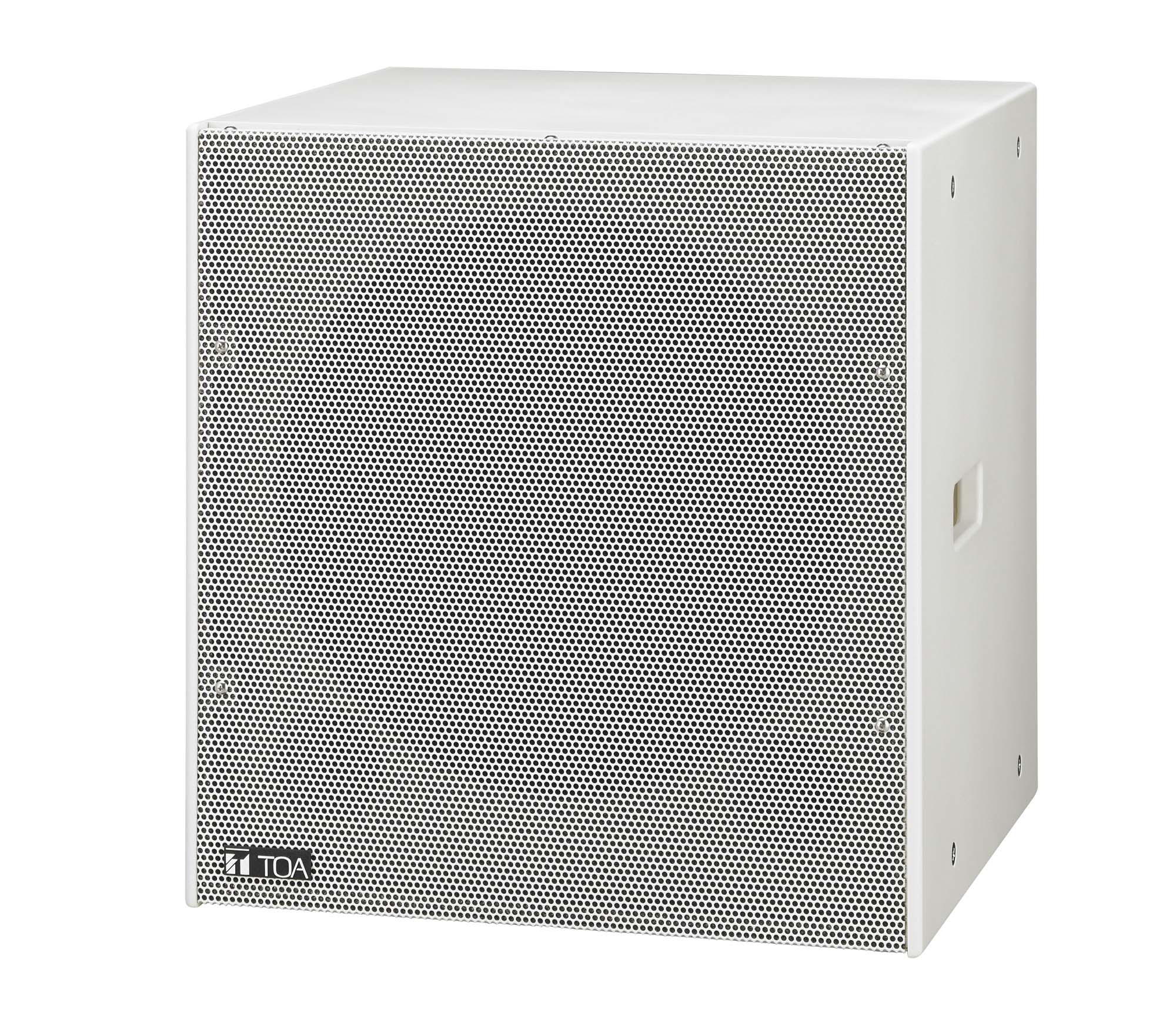

FB-150W Subwoofer System
FB-150W
The FB-150W is a compact, indoor-use subwoofer system employing a high-power 38 cm (15") woofer. It is designed for use in conjunction with TOA's HX-7W or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.
| Power Handling Capacity | Continuous pink noise: 200 W Continuous program: 600 W |
|---|---|
| Impedance | 8 Ω |
| Sensitivity | 93 dB (1 W, 1 m) |
| Frequency Response | 40 - 400 Hz (-10 dB) |
| Speaker Component | 38 cm (15") cone-type |
| Input Terminal | Speakon NL4MP × 2 and M5 screw terminal, distance between barriers: 12.2 mm (0.48") |
| Finish | Enclosure: MDF, whit, urethane painte Punched net: Surface-treated steel plate, white, paint |
| Dimensions | 505 (W) × 528 (H) × 477 (D) mm (19.88" × 20.79" × 19.17") |
| Weight | 30 kg (66.14 lb) |
| Option | Speaker rigging frame: HY-PF7W |
