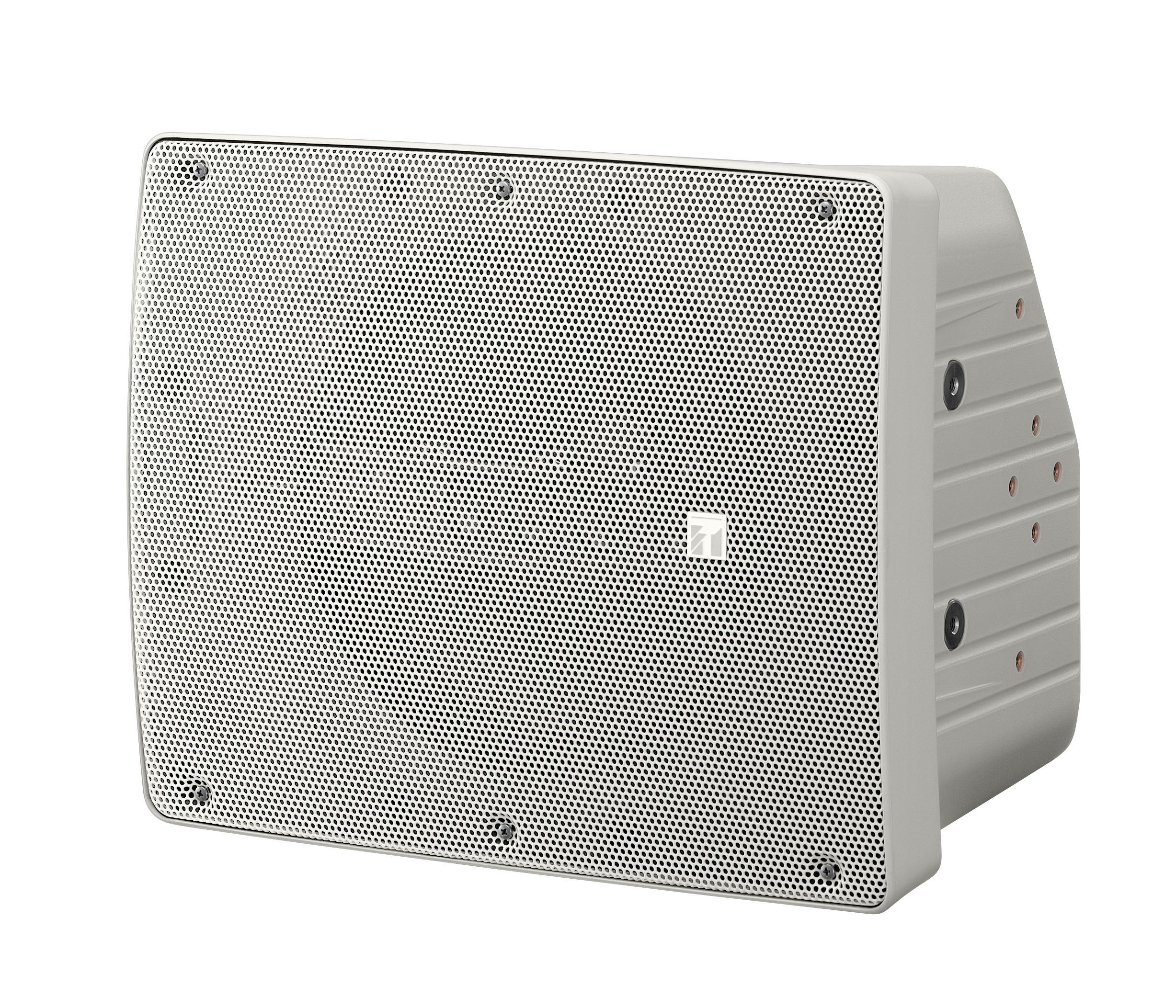

HS-120W Coaxial Array Speaker System
HS-120W
The HS-120W is a 2-way speaker system made of resin, and features a large diameter woofer. It can be installed and used in many different applications with combined use of the supplied accessories and/or the optional mounting brackets.
Enclosure | Sealed type |
---|---|
Power Handling Capacity | Continuous pink noise: 100 W Continuous program: 300 W |
Rated Impedance | 8 Ω |
Sensitivity | 97 dB (1 W, 1 m) |
Frequency Response | 80 - 20,000 Hz |
Crossover Frequency | 3 kHz |
Directivity Angle | Horizontal: 90゜, Vertical: 40゜ |
Speaker Component | Low frequency: 30 cm (12) cone-type" High frequency: Balanced dome tweeter × 6 |
Input Terminal | NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)" |
Operating Temperature | -10℃ to +50℃ (14゜F to 122゜F) |
Finish | Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white |
Dimensions | 361 (W) × 448 (H) × 320 (D) mm (14.21 × 17.64" × 12.6")" |
Weight | 8.5 kg (18.74 lb) |
Accessory | Handle …1, Handle fitting bracket …2, Handle mounting screw …2, Rubber foot …2, Rubber foot mounting screw …2 |
Option | Mounting bracket: HY-1200VW (for vertical speaker mounting) HY-1200HW (for horizontal speaker mounting) Ceiling mount bracket: HY-C0801W Wall mount bracket: HY-W0801W Speaker stand: ST-33B |
