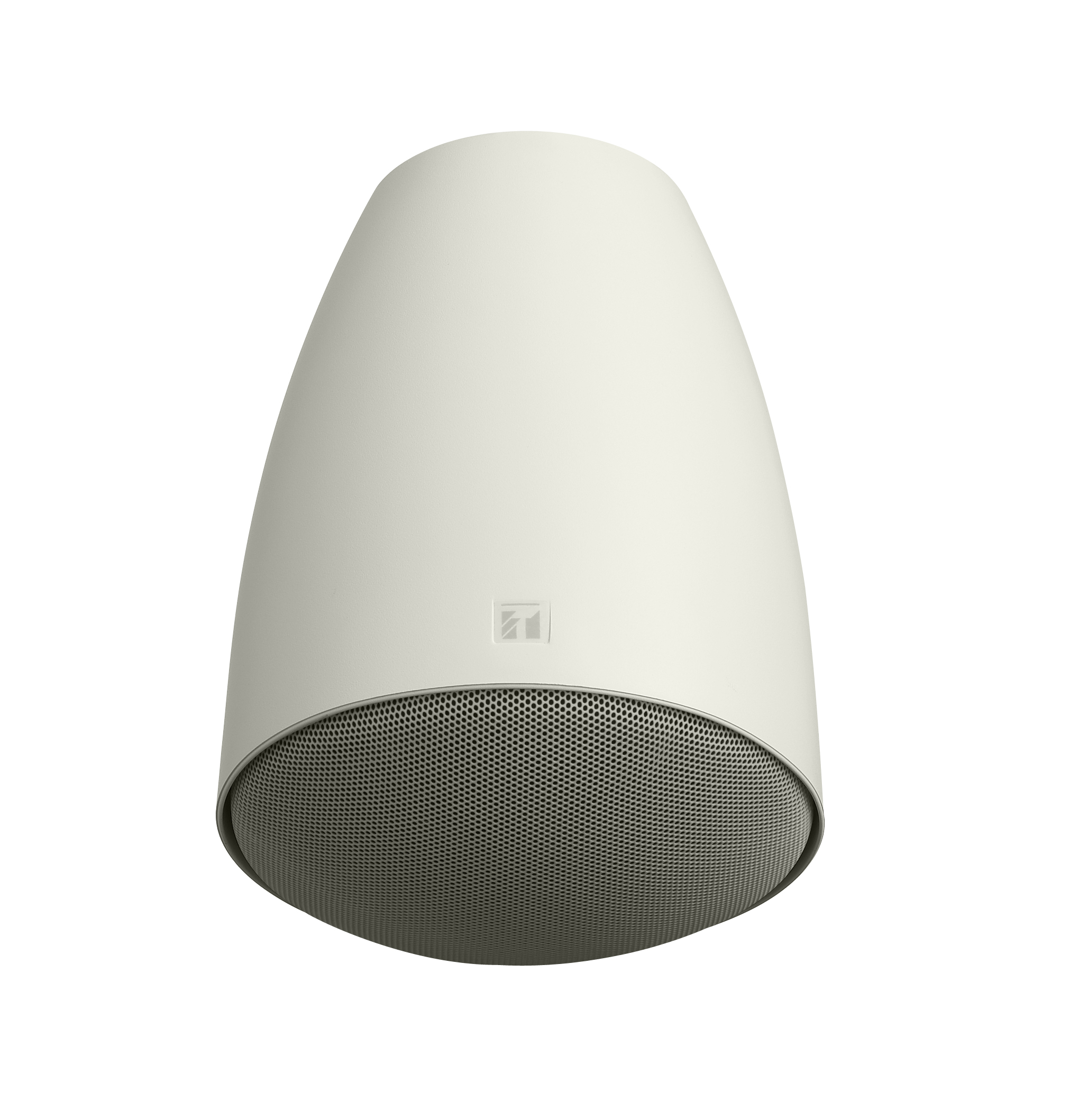

PE-604WU Pendant Speaker 60W
PE-604WU
The PE-604WU is a pendant speaker designed for the installations suspended from a ceiling. A directly-attached 5 m (16.4 ft) hanging wire allows the speaker to be suspended from high ceilings. The PE-604WU is driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The PE-604WU is certified to UL 1480 UUMW and ULC-S541 standards. Using the supplied GRIPPLE(R) hangers will facilitate the speaker mounting height adjustment.
| Enclosure | Bass-reflex type |
|---|---|
| Rated Input | 60 W (100 V, 70 V line, 8 Ω), 7.5 W (25 V line) |
| Rated Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W) Low impedance: 8 Ω |
| Sensitivity | 90 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise) |
| Frequency Response | 110 Hz - 20 kHz (-10 dB) |
| Speaker Component | 12 cm (5") cone-type + balanced dome-tweeter (coaxial) |
| UL Code | UL 1480 UUMW, ULC-S541 |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Finish | Enclosure: ABS resin, white (RAL 9010 equivalent) Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint |
| Dimensions | φ186 × 275 (H) mm (φ7.32" × 10.83") (unit only) |
| Weight | 2.9 kg (6.39 lb) (unit only) |
| Accessory | GRIPPLE No.1 …1, GRIPPLE No.2 …1, Release key (for GRIPPLE )…1, Safety wire (φ1.5 mm (φ0.06")) …1, Hanging wire (φ2 mm (φ0.08")) …1, Speaker Cable (4-core FPL listed cable 4.6 m (15.09 ft)) …1 ※ GRIPPLE No.1 and No.2 are hangers for suspending the speaker. |
