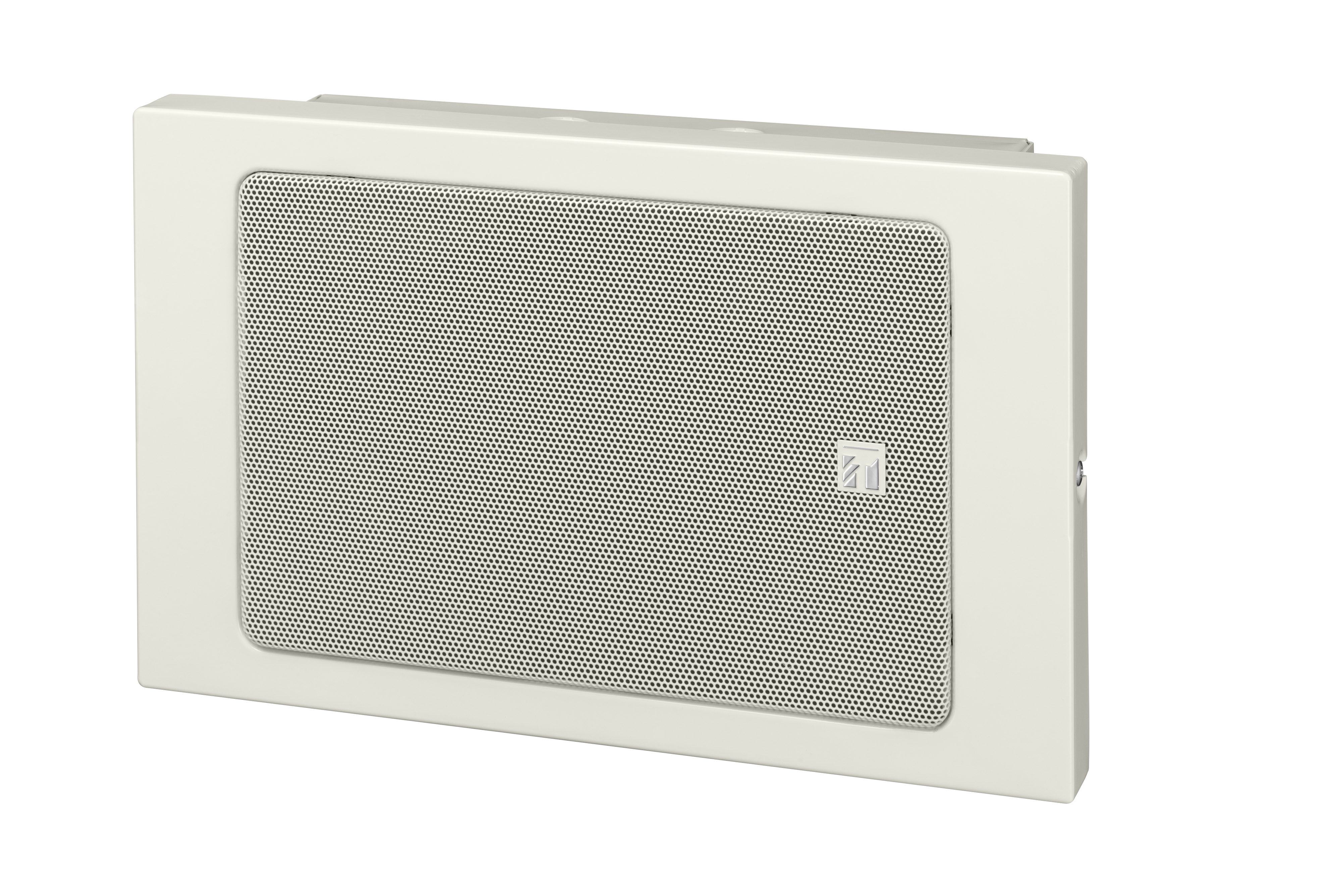

BS-680FC Wall Mount Speaker
BS-680FC
Constructed with metal cabinet, the speaker is ideal for use in a voice alarm system.Can be surface- or flush- mounted to the wall. Either concealed in-wall wiring or exposedwiring can be used for speaker cable connection. The speaker structure of direct wall-mountingwith screws prevents the speaker from falling easily even if an outward force is applied to.The input impedance can be easily changed by changing the tap position of the transformer.The built-in 16 cm double cone speaker unit delivers high quality sound. Two steatite screw terminal blocks (1 cable to 1 connection type) make bridge connection easier.
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) 77 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24 89 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24 |
| Maximum Sound Pressure Level | 84 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24 96 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24 |
| Frequency Response | 150 Hz - 20 kHz (peak -20 dB) |
| Coverage Angle(-6dB) | 500 Hz: 180゜ (horizontal and vertical); 1 kHz: 140゜ (horizontal and vertical); 2 kHz: 120゜ (horizontal), 110゜ (vertical); 4 kHz: 100゜ (horizontal), 80゜ (vertical); according to EN 54-24 |
| Environmental type | A (indoor applications) according to EN 54-24 |
| Speaker Component | 16 cm (6) double cone-type |
| Applicable Cable | Solid wire: φ1.0 - φ3.0 mm (AWG 18-9) |
| Connection | Screw connector (ceramic terminal × 2) bridging |
| Finish | Baffle, Cabinet: Steel plate, off-white (RAL 9010 or equivalent color), paint Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint |
| Dimensions | 310 (W) × 190 (H) × 87.2 (D) mm (12.2" × 7.48" × 3.43") |
| Weight | 2.6 kg (5.73 lb) |
| Accessory | Rubber grommet …2, Speaker mounting screw (4 × 16) …4 |
- [Note] The specification data was measured in an anechoic chamber. Reference axis: axis is on the center of grill surface and perpendicular to the grill surface. Reference plane: plane is on the grill surface and perpendicular to the reference axis. horizontal plane: plane is containing the reference axis and perpendicular to the reference plane.
