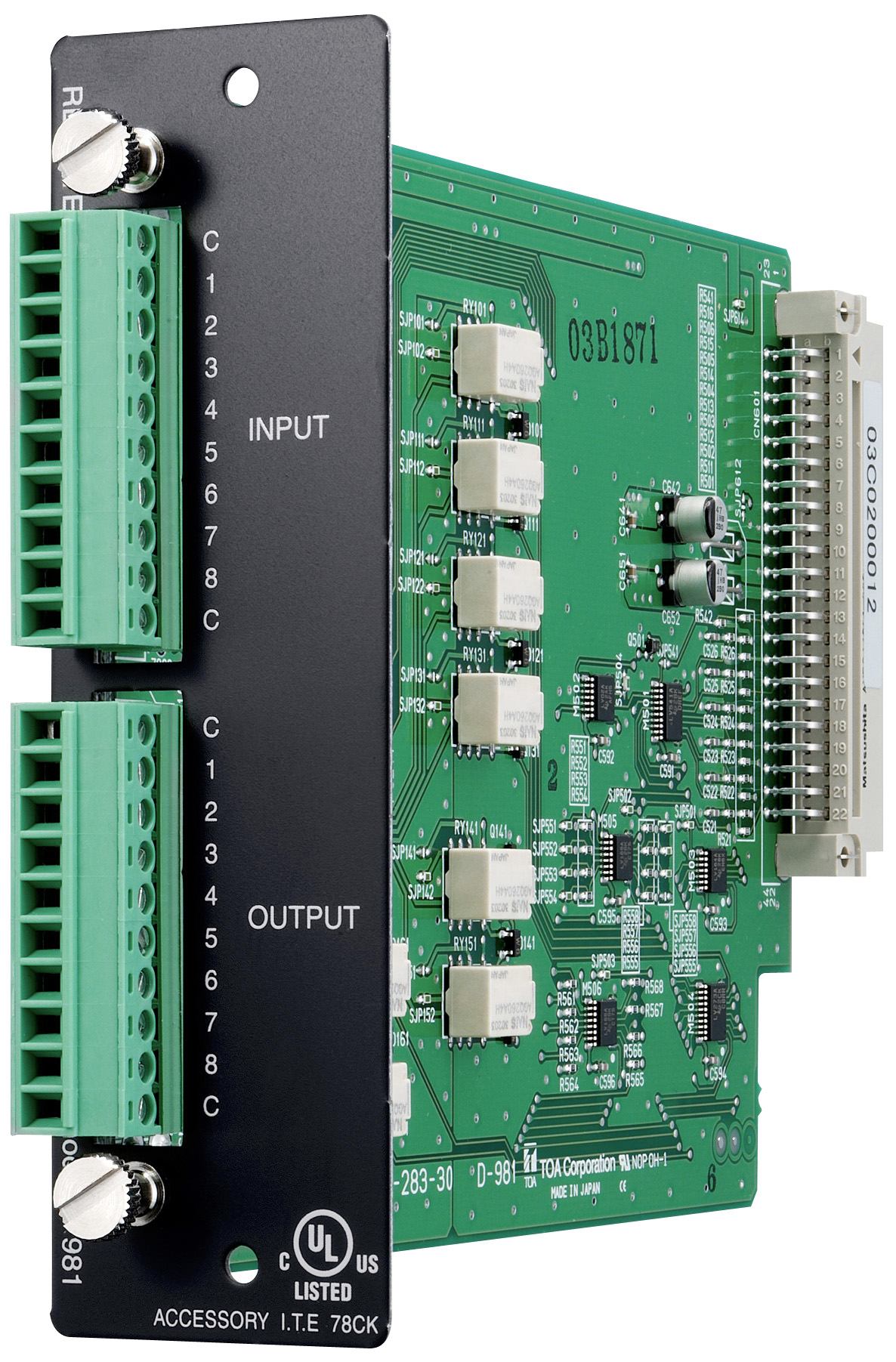

D-981 Remote Control Module
D-981
The D-981 is a remote control module designed for use with the D-901 Digital Mixer, etc. It permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment. Tally output can also be provided for external control.
| Contact Input | COM + Terminals 1 - 8: Open voltage: 5 V DC, short-circuit current: 5 mA removable terminal block (10 pins) |
|---|
Control
| Preset Memory Selection | Any preset memory can be recalled. Control method: No-voltage make of over 100 ms/ |
|---|---|
| Volume Control | Any input/output channel volume can be turned UP or Down. Control method: 1 step variation for no-voltage make single pulse of over 100 ms 1 step continuous operation for every 70 ms for no-voltage make of over 100ms. Can be reset when at break. Variable range : -∞ dB to +10 dB |
| Channel | Any input/output channel can be turned ON and OFF. Control method: No-voltage make of over 100 ms/ no-voltage make single pulse of over 100 ms |
| Stereo Selection | Input channel lines of the D-936R (optional), or the D-937SP (optional) (4 stereo input module) can be selected. Control method: No-voltage make of over 100 ms/ No-voltage make single pulse of over 100 ms |
| Contact Output | COM + Terminals 1 - 8: No-voltage make contact input, contact capacity: 24 V DC, 100 mA removable terminal block (10 pins) |
|---|---|
| Finish | Panel: Pre-coated steel plate, black, 30% gloss |
| Dimensions | 35 (W) × 119.5 (H) × 178.4 (D) mm |
| Weight | 125 g |
| Accessory | Removable terminal plug (10 pins, preinstalled on the unit) …2 |
