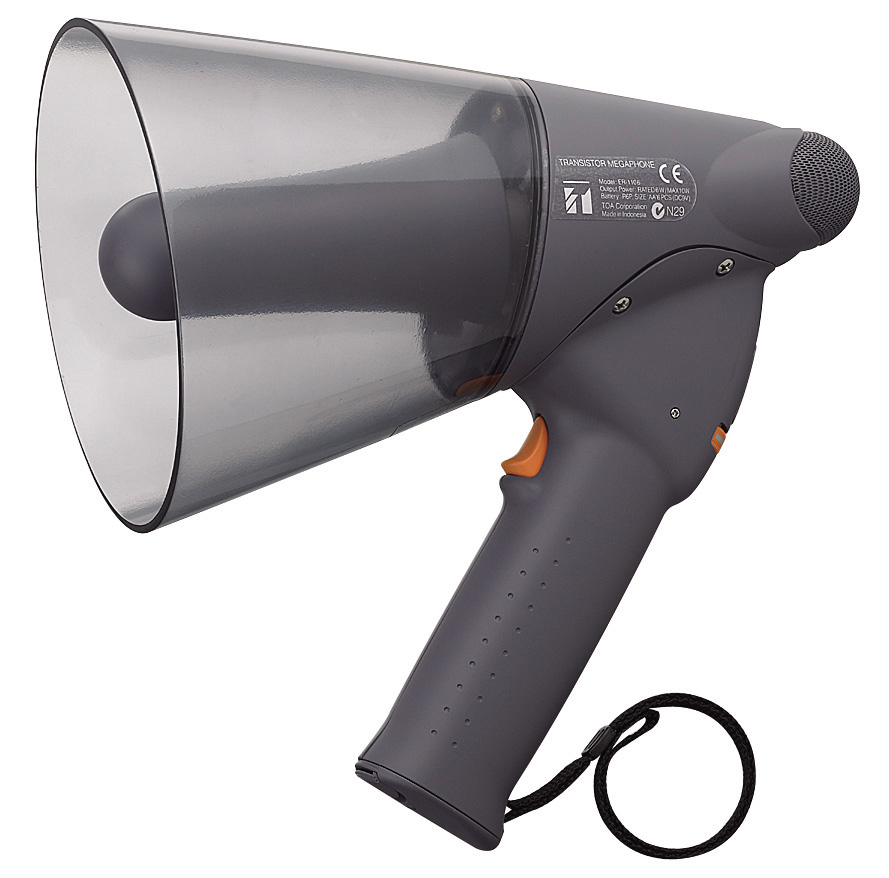

ER-1206 (10W max.) Splash-proof Hand Grip Type Megaphones
ER-1206
The ER-1206 is a compact splash-proof megaphone rated at 6 W output and features IPX5 water-jet-resistant designs. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.
| Power Source | R6P (AA) × 6 (9 V DC) or R6P (AA) × 4 (6 V DC) |
|---|---|
| Rated Output | 6 W (when using six R6P batteries) |
| Maximum Output | 10 W (when using six R6P batteries) |
| Battery Life | When using six R6P batteries: Approx. 8 hours (JEITA)(*1) When using four R6P batteries(*2): Approx. 5 hours (JEITA)(*1) |
| Audible Range | Approx. 250 m (JEITA)(*1) |
| Frequency Response | 450 - 6,000 Hz (SPL -20 dB) |
| Magnetic Circuit | Neodymium magnet, inner magnet type |
| Diaphragm | Polyimide film (voice coil, bobbin) |
| Anti-bacteria Treatment | Mouth and handle |
| Water Protection | IPX5 |
| Operating Temperature | -10℃ to +40℃ |
| Finish | Horn: ASA resin, clear dark gray Other: ASA resin, dark gray Strap: Nylon, black |
| Dimensions | 154 (W) × 266 (H) × 250 (D) mm |
| Weight | 660 g (without batteries) |
| Accessory | Battery spacer …1 |
| Option | Wall mounting bracket for megaphone: SP-1100 |
- Note: Batteries are optional.
- (*1) JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
- (*2) With the additional use of the supplied battery spacer.
