RS-480 IP Intercom Substation
RS-480

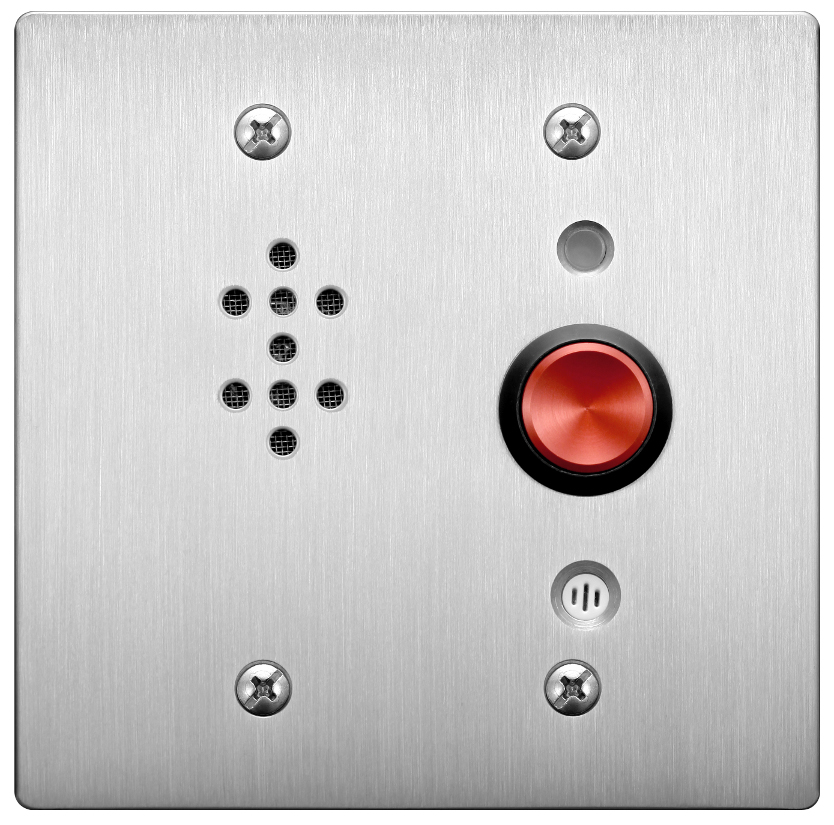

The RS-480 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation. Also, it can be used in connection with the RS-481 Option Handset. The RS-480 is equipped with a Status indicator.
| Call-in Switch | Momentary (Emergency call: Press twice within 400 ms.) |
|---|---|
| Rated Input | 1 W |
| Control Output | Open collector, Maximum controlled voltage: 30 VDC Control current: 30 mA |
|---|---|
| Internal Speaker | cone-type |
| Internal Mic | Electret condenser type |
| Indicator | When called : Status indicator (red) flashing In conversation : Status indicator (red) lit |
| Wiring | Twisted pair cables (2-pair) |
| Transmission Range | 1 km (1093 yd)/φ0.5 mm (AWG24) 1.5 km (1640 yd)/φ0.65 mm (AWG22) 2 km (2187 yd)/φ0.9 mm (AWG19) |
| Operating Temperature | -10℃ to +50℃ (14 ゜F to 122 ゜F) (Temperature range not to freeze the speaker and switch) |
| Housing Protection | BS EN62262: 2002: IK02 equivalent |
| Dust/Water Protection | IP54 |
| Finish | Panel: Stainless steel, hairline Call Switch: Metal, silver Circuit board: Weather-resistant coating |
| Dimensions | 120 (W) × 120 (H) × 50.5 (D) mm (4.72" × 4.72" × 1.99") |
| Weight | 575 g (1.27 lb) |
| Accessory | Box mounting screw (No.6-32UNC × 8) ……4, Box mounting screw (M4 × 25) ……4 |
| Applicable Box | 2-gang electrical box: YC-302 (option) |
