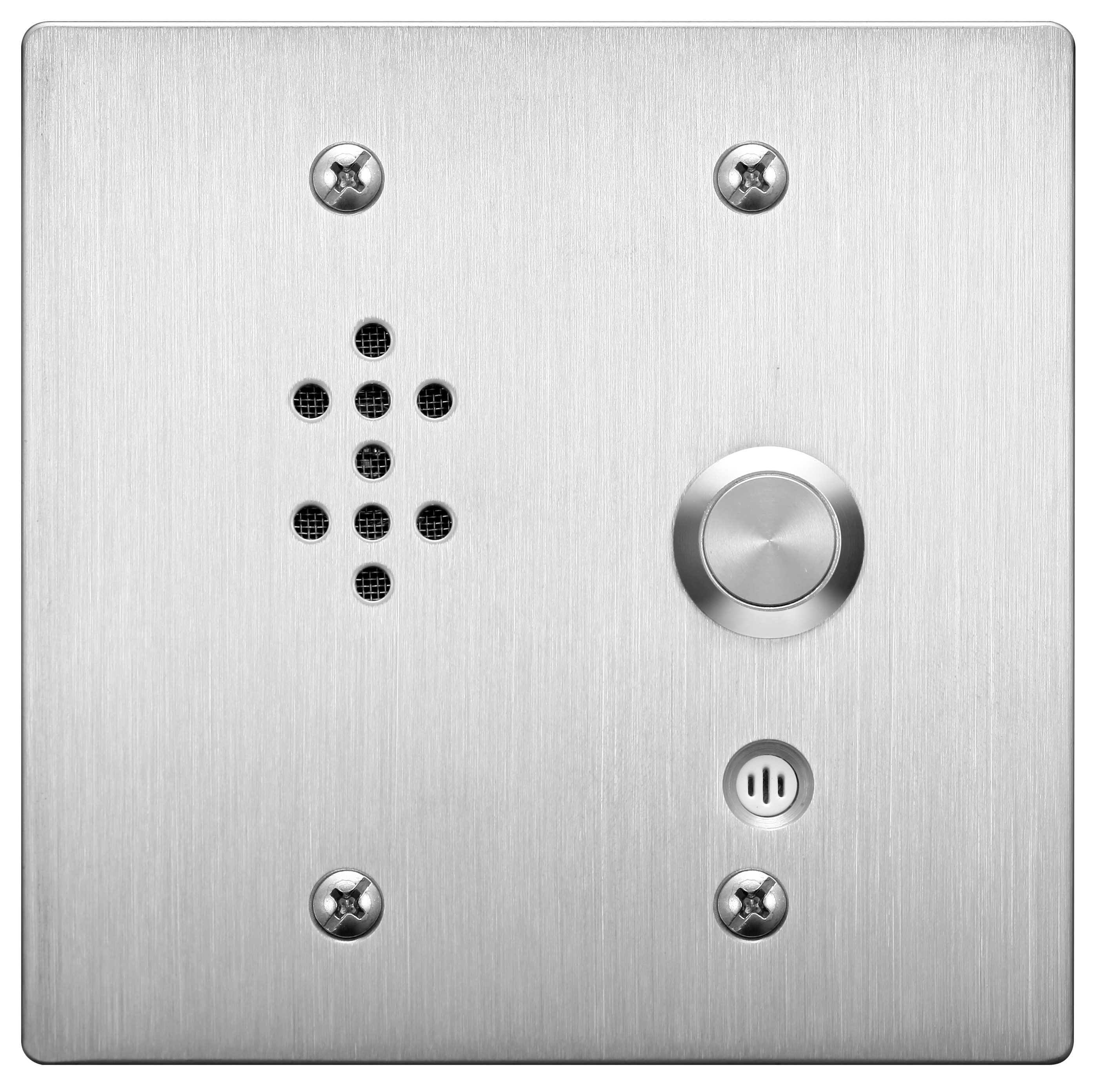

RS-460 IP Intercom Substation

RS-460

The RS-460 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.

사양
Call-in Switch Momentary (Emergency call: Press twice within 400 ms.)
Rated Input 1 W
Internal Speaker cone-type
Internal Mic Electret condenser type
Wiring Twisted pair cables (2-pair)
Transmission Range 1 km (1093 yd)/φ0.5 mm (AWG24)
1.5 km (1640 yd)/φ0.65 mm (AWG22)
2 km (2187 yd)/φ0.9 mm (AWG19)
Operating Temperature

-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
(Temperature range not to freeze the speaker and switch)
Housing Protection BS EN62262: 2002: IK02 equivalent
Finish Panel: Stainless steel, hairline
Call Switch: Metal, silver
Dimensions 120 (W) × 120 (H) × 49.5 (D) mm (4.72" × 4.72" × 1.95")
Weight 540 g (1.19 lb)
Accessory Box mounting screw (No.6-32UNC × 18) ……4,
Box mounting screw (M4 × 25) ……4
Applicable Box 2-gang electrical box: YC-302 (option)
